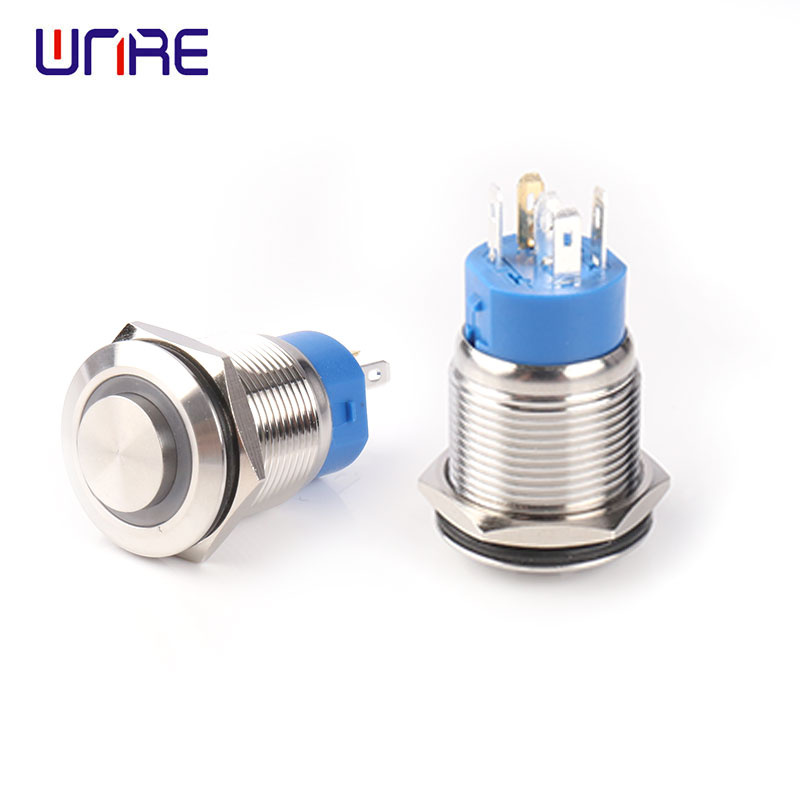

OEM 19F high-head ring-type self-locking with light Factory, Factories

`Product Model: Q19F High head. `Material:304 stainless steel housing,PA66. `Protection level:IP67, IK10, IP40. `Electrical parameters:5A /250VAC. `Contact resistance:≤50Ω. `Insulation resistance:≥1000MΩ. `LED voltage:3V-220V. `Service temperature range:-20℃—55℃. `Lamp bead life:40,000 hours. `Mechanical life:30 times/min,500,000 times.

Product Description

Industrial Connector Product Image
Frequently Asked Questions
1. What are the primary applications for these industrial connectors?
Our connectors are designed for heavy-duty industrial environments, including automation systems, power distribution, and machinery signal transmission, ensuring stable performance under vibration or mechanical stress.
2. How do you ensure the quality and durability of the products?
Each component undergoes rigorous testing, including salt spray resistance, insertion force cycles, and electrical conductivity checks to meet international industrial standards.
3. Are these connectors resistant to extreme environmental conditions?
Yes, the products feature specialized sealing and high-grade materials that provide resistance against moisture, dust (IP-rated), and temperature fluctuations ranging from extreme cold to high heat.
4. Can I request customized connector configurations?
We offer flexible manufacturing solutions to tailor pin configurations, shell materials, and cable lengths to meet specific technical requirements for unique projects.
5. What is the typical lead time for bulk orders?
Standard products are typically dispatched within a short timeframe, while customized or large-scale industrial orders follow a streamlined production schedule to ensure timely delivery.
6. Do the products comply with international safety certifications?
All products are manufactured in compliance with global safety and environmental regulations, ensuring they are suitable for export and use in diverse international markets.
