OEM B3P DIP-M Manufacturer, Suppliers

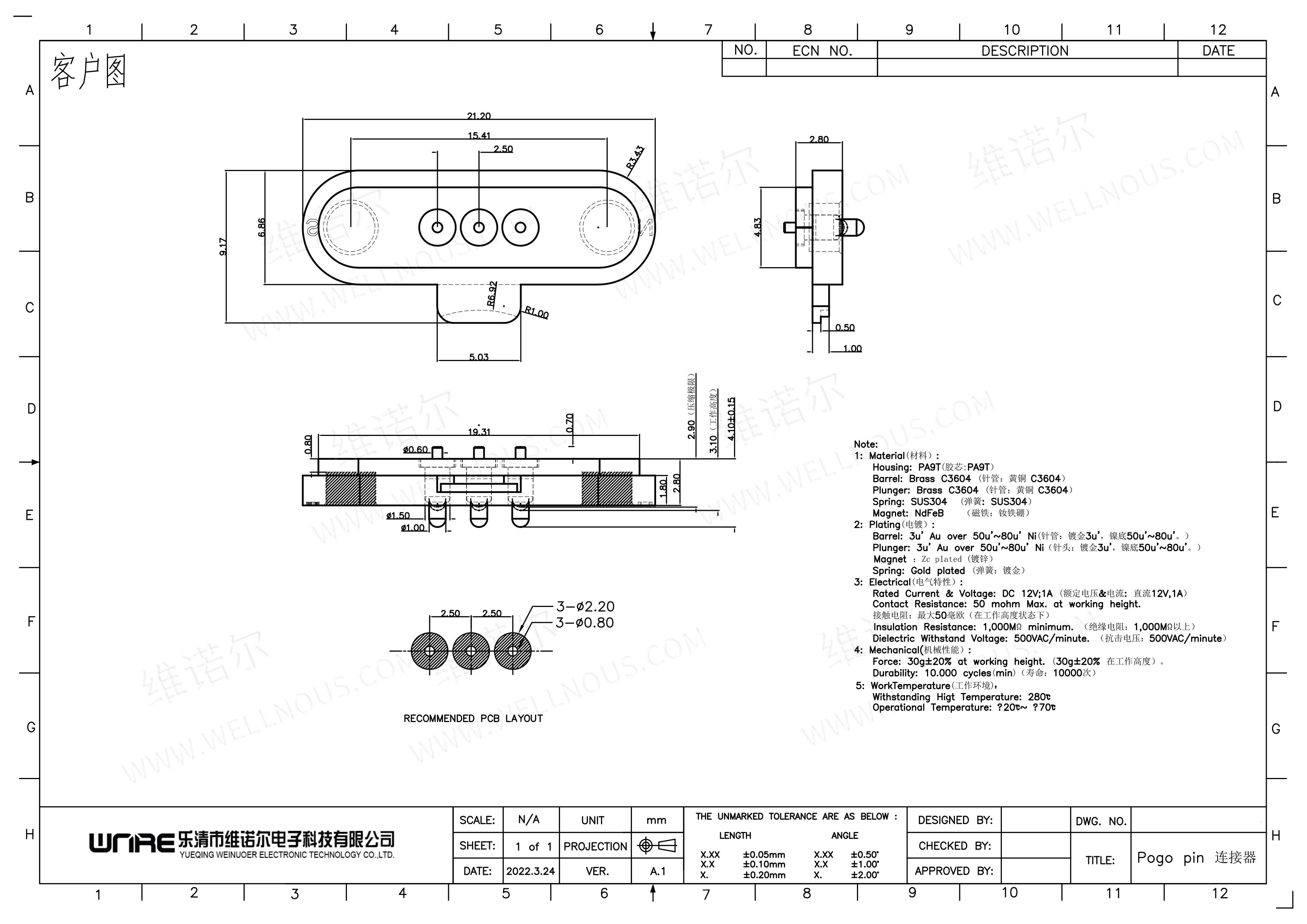

Title:Wholesale Price China Plunger Barrel C3604 Spring SUS304 SMT DIP Pogopin Pogo Pin Product Model: B3P DIP-M Housing: PA9T Barrel: Brass C3604 Plunger: Brass C3604 Spring: SUS304 Magnet: NdFeB Barrel: 3u plating gold, nickel base 50~80u' Plunger: 3u plating gold, nickel base 50~80u' Magnet: Zc plated Spring: gold plated Rated: DC 12V 1A Contact Resistance: 50mΩ Max. Insulation resistance: minimum 1000mΩ Resistance voltage: 500VAC/ min Force: 30g±20% Life: 10000 cycles(min) Withstanding High Temperature: 280℃ Operational Temperature: -20℃~70℃

Send Inquiry

Product Description

🛡️ Product Core Advantages

💎

Gold-plated spring pin with low resistance and strong conductivity for stable performance.

⚙️

Excellent material selection ensuring more stable and consistent power output.

🔥

High-quality copper material, reliable, safe, durable, high temperature resistant, and flame retardant.

🛠️

PA46 material connector, specifically designed to be fall and impact resistant.

🚀 Wide Range of Applications

Smart Wearables: Smart watches, smart bracelets, smart glasses, Bluetooth headphones, smart gloves, VR, etc.

3C Consumer Products: Tablet PC, electronic lock, electric car, smart water cup, cell phone, charging data lines.

Medical Industry: Medical equipment, beauty equipment, hearing aids, blood pressure meters, heart rate monitors, handheld electrocardiograms.

Intelligent Devices: Intelligent robots, sensors, handheld devices, drones, vehicle-mounted devices.

📋 Technical Specifications

Our production focuses on superior quality and effectiveness primacy, specializing in high-performance components:

Plunger Barrel C3604 Spring SUS304 SMT DIP Pogopin Pogo Pin High-Quality Merchandise

❓ Frequently Asked Questions

What are the benefits of gold plating on spring pins?

Gold plating significantly reduces electrical resistance and provides exceptionally strong conductivity, ensuring the output remains stable and efficient even in precision devices.

What materials are used for the connector body and spring?

The plunger barrel is typically made of high-quality C3604 copper, while the spring is constructed from SUS304 stainless steel for durability and consistent tension.

Can these connectors withstand high temperatures?

Yes, the products are made from high-quality copper and PA46 insulation materials which are flame retardant and designed to withstand high-temperature environments.

Are these pins suitable for medical grade equipment?

Absolutely. They are widely used in medical devices such as heart rate monitors, blood pressure meters, and handheld electrocardiograms due to their reliability and safety.

How is the impact resistance of the PA46 material?

The PA46 material is specifically chosen for its excellent mechanical properties, making the connectors highly resistant to falls and physical impacts, which is critical for handheld and wearable devices.

What types of mounting do these Pogo pins support?

They support various mounting styles including SMT (Surface Mount Technology) and DIP (Dual In-line Package) to accommodate different PCB design requirements.
