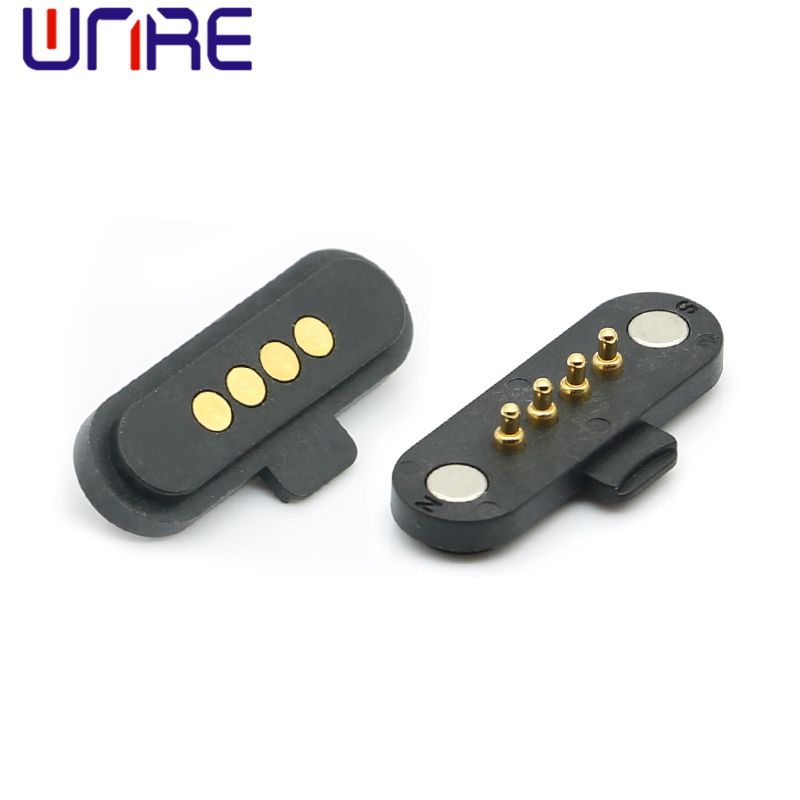

OEM B4P SMT-M Factory, Companies

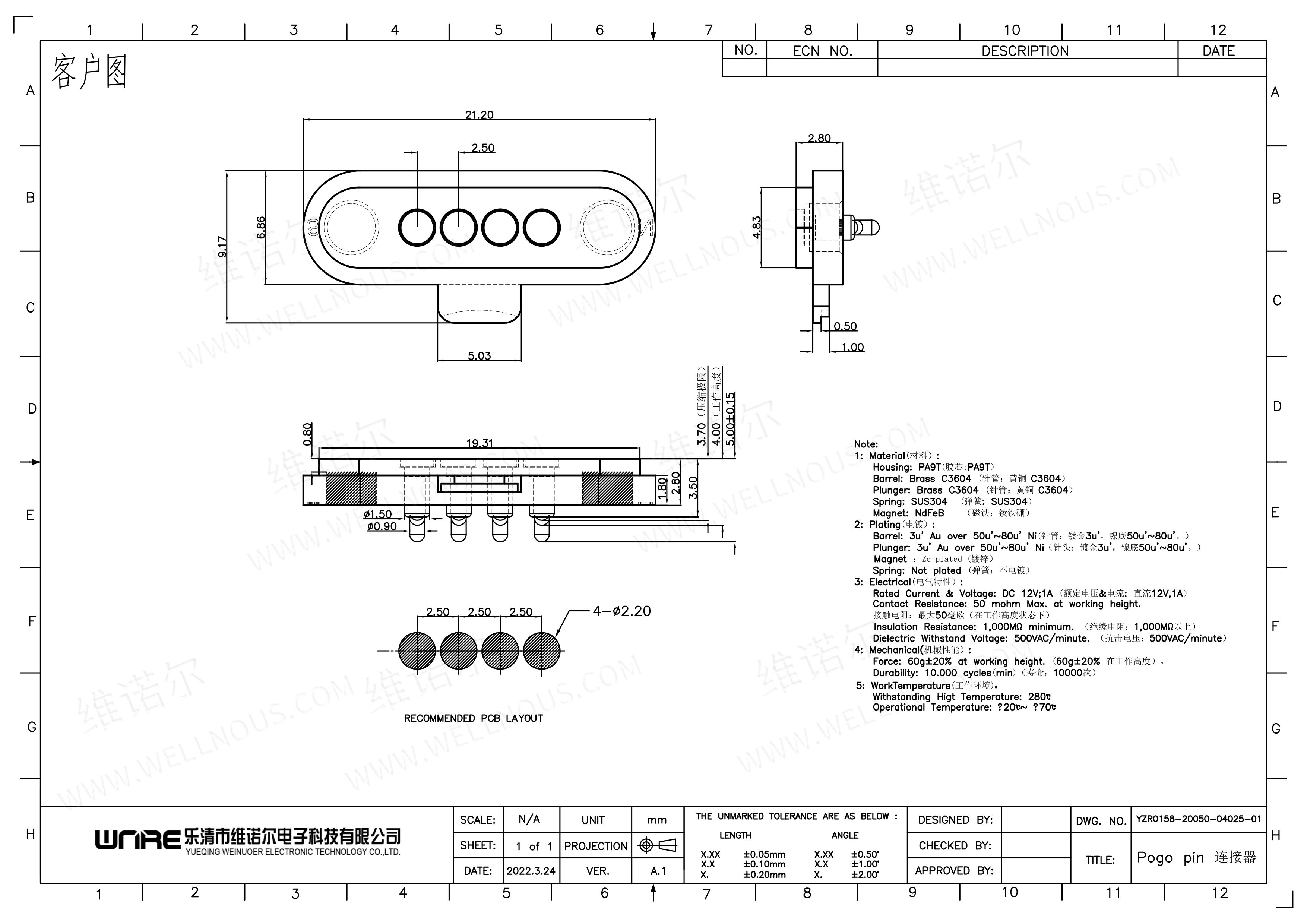

Title:Manufacturer of Fitness Sports Custom Smart Watched Digital Watches Waterproof Smartwatch Android Bt Smart Watch Product Model: B4P SMT-M Housing: PA9T Barrel: Brass C3604 Plunger: Brass C3604 Spring: SUS304 Magnet: NdFeB Barrel: 3u plating gold, nickel base 50~80u' Plunger: 3u plating gold, nickel base 50~80u' Magnet: Zc plated Spring: not plated Rated: DC 12V 1A Contact Resistance: 50mΩ Max. Insulation resistance: minimum 1000mΩ Resistance voltage: 500VAC/ min Force: 30g±8g Life: 10000 cycles(min) Withstanding High Temperature: 280℃ Operational Temperature: -20℃~70℃

Send Inquiry

Product Description

Gold-plated spring pin: Low resistance and strong conductivity.

Excellent material: More stable output performance.

High-quality copper: Reliable, safe, durable, high temperature resistant, and flame retardant.

PA46 material connector: Fall and impact resistant structure.

Wide Range of Applications

Smart Wearables

Smart watches, smart bracelets, smart glasses, Bluetooth headphones, smart gloves, VR, etc.

3C Consumer Products

Tablet PC, electronic lock, electric car, smart water cup, cell phone, and charging data lines.

Medical Industry

Medical equipment, beauty equipment, hearing aids, blood pressure meters, heart rate monitors, and handheld electrocardiograms.

Intelligent Devices

Intelligent robots, sensors, handheld devices, drones, and vehicle-mounted devices.

Our goal is "blazing new ground, Passing Value". We focus on customer-centric solutions and reliable material applications to create a vivid foreseeable future jointly. We ensure total satisfaction with our best solutions!

Frequently Asked Questions (FAQ)

1. What are the key features of the gold-plated spring pins? They offer low resistance and strong conductivity, ensuring a stable and efficient electrical connection for various devices.

2. Are the connectors resistant to high temperatures? Yes, the high-quality copper and PA46 materials used are specifically selected for their high temperature and flame retardant properties.

3. Can these connectors be used in medical devices? Absolutely. They are suitable for medical equipment such as blood pressure meters, heart rate monitors, and hearing aids.

4. What makes the connector durable against impacts? The use of PA46 material ensures that the connector is fall and impact resistant, providing long-term reliability.

5. Are these components suitable for smart wearable technology? Yes, they are widely applied in smart watches, bracelets, VR headsets, and Bluetooth headphones due to their compact and reliable design.

6. Do these products support 3C consumer electronics? Yes, they are ideal for tablet PCs, electronic locks, smart water cups, and mobile phone charging data lines.
