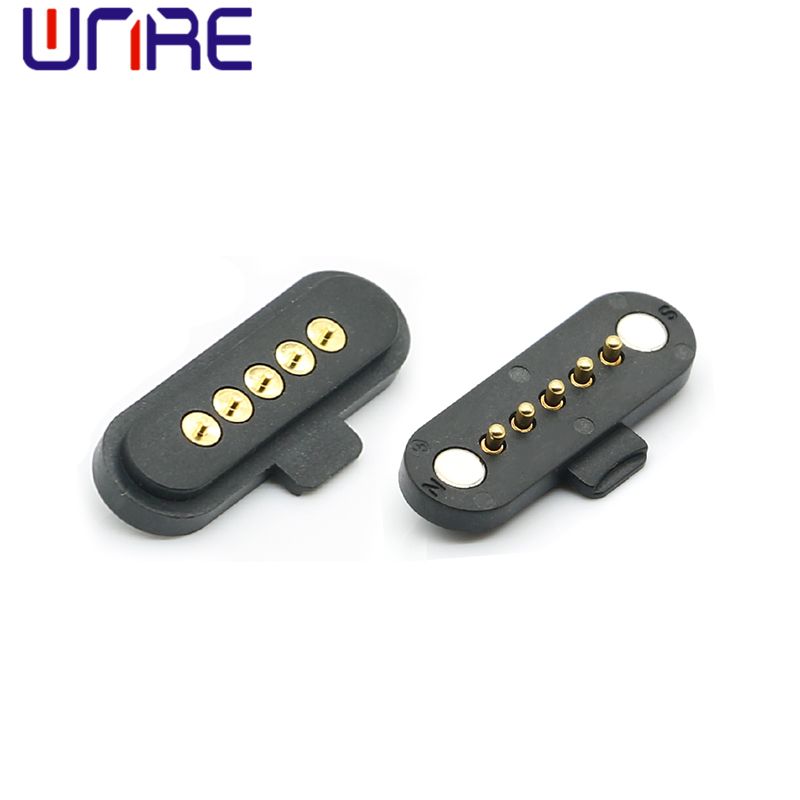

OEM B5P DIP-M Manufacturers, Factory

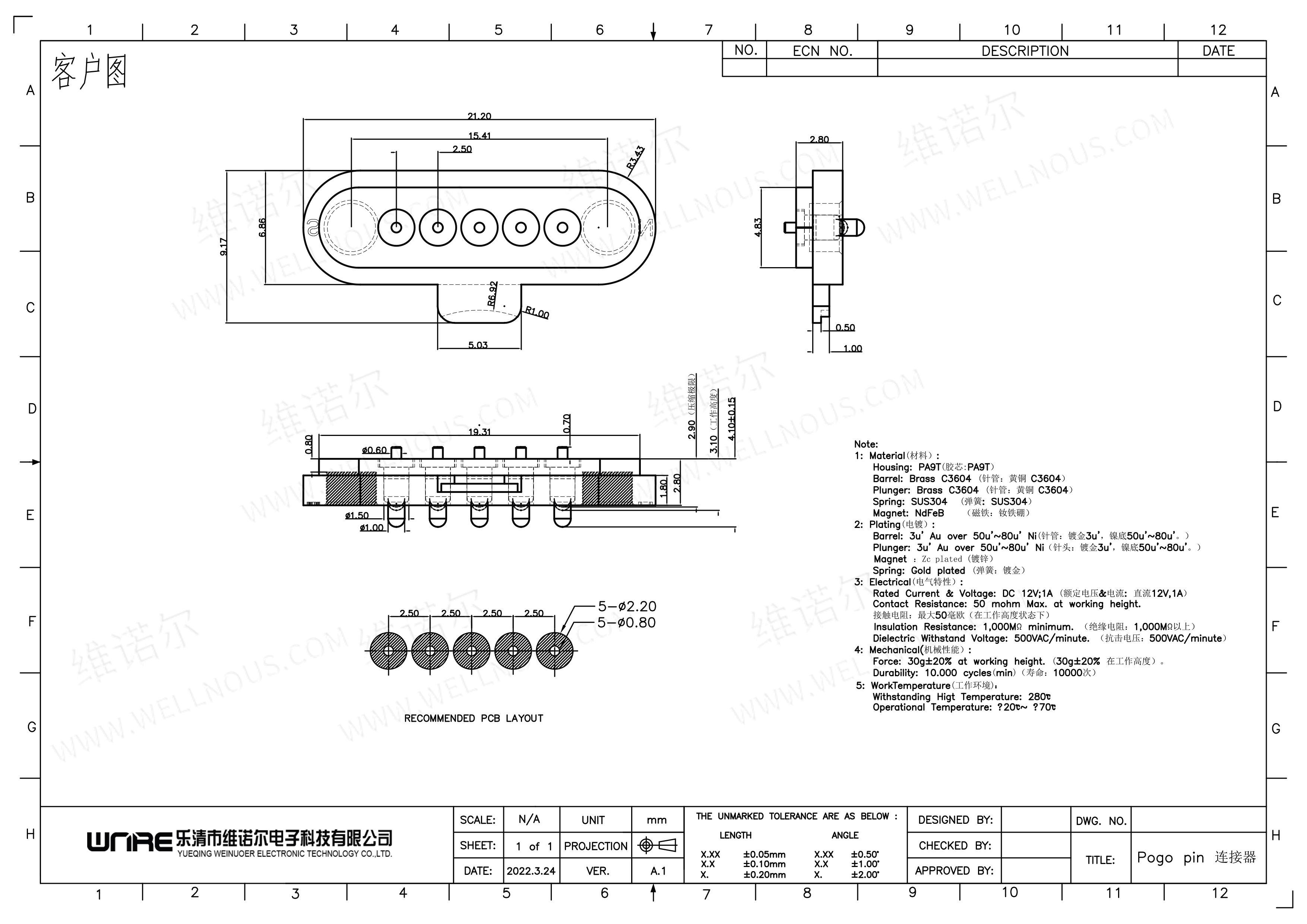

Title:Bottom price Smart Phone Watch for Kids Gift B5P DIP Watches Sos GPS Tracker China Smart Phone Watch and Gift Watches price Product Model: B5P DIP-M Housing: PA9T Barrel: Brass C3604 Plunger: Brass C3604 Spring: SUS304 Magnet: NdFeB Barrel: 3u plating gold, nickel base 50~80u' Plunger: 3u plating gold, nickel base 50~80u' Magnet: Zc plated Spring: gold plated Rated: DC 12V 1A Contact Resistance: 50mΩ Max. Insulation resistance: minimum 1000mΩ Resistance voltage: 500VAC/ min Force: 30g±20% Life: 10000 cycles(min) Withstanding High Temperature: 280℃ Operational Temperature: -20℃~70℃

Send Inquiry

Product Description

Key Product Features

⚡ Gold-plated spring pin with low resistance and strong conductivity.

💎 Excellent material ensures a more stable output for various applications.

🛡️ High-quality copper material: reliable, safe, durable, high temperature resistant, and flame retardant.

🏗️ PA46 material connector, providing exceptional fall and impact resistance.

Industry Applications

1. Smart Wearables:

Smart watches, smart bracelets, smart glasses, Bluetooth headphones, smart gloves, VR devices, etc.

2. 3C Consumer Products:

Tablet PCs, electronic locks, electric cars, smart water cups, cell phones, and charging data lines.

3. Medical Industry:

Medical equipment, beauty equipment, hearing aids, blood pressure meters, heart rate monitors, and handheld ECGs.

4. Intelligent Devices:

Intelligent robots, sensors, handheld devices, drones, and vehicle-mounted devices.

With prosperous working experience and thoughtful solutions, we provide high-performance components for products such as Smart Phone Watches for Kids, Gift Watches, and Sos GPS Trackers. Our team is supported by highly experienced and knowledgeable professionals who have immense expertise in their respective domains. These professionals work in close coordination to offer an effective range of items, including Smart Phone Watches and specialized Gift Watches.

Frequently Asked Questions (FAQ)

Q1: What are the advantages of using gold-plated spring pins? A1: Gold-plated spring pins provide low electrical resistance and superior conductivity, ensuring stable data and power transmission in compact electronic devices.

Q2: Is the PA46 material suitable for rugged environments? A2: Yes, PA46 is a high-performance polymer known for its excellent impact and fall resistance, making it ideal for handheld and outdoor intelligent devices.

Q3: Can these connectors be used in medical-grade equipment? A3: Absolutely. The high-quality copper and flame-retardant materials meet the reliability and safety standards required for medical devices like blood pressure monitors and ECGs.

Q4: Are these components compatible with smart wearable technology? A4: Yes, they are specifically designed for smart wearables including smartwatches, VR headsets, and Bluetooth headphones due to their small footprint and high durability.

Q5: How does the copper material contribute to product safety? A5: The high-quality copper used is both heat-resistant and flame-retardant, significantly reducing the risk of overheating and enhancing the overall lifespan of the device.

Q6: Do these connectors support GPS trackers and SOS devices? A6: Yes, they are widely used in SOS GPS trackers for kids and smart gift watches, providing consistent performance for critical communication features.
