Key Specifications: Suitable for the development of small equipment, with a variety of specifications of center needle selection; With a variety of contour size selection; Meet the requirements of ROHS directive.
Power supply: Usually a DC source that is itself controlled by another AC source such as a 120 v, 60 Hz line. Therefore, this type of power supply can be considered as AC - DC conversion.
Inverter: An AC source that provides a constant frequency, a constant amplitude, from a DC source. Some power sources are controlled by a DC source and can produce energy at different DC levels; these are called DC-DC converters.
Converts AC voltage to pulsating DC voltage and allows current to flow in only one direction.
Suppresses pulsation in the rectified waveform and allows its DC (mean) component to pass through.
Maintains fully stable voltage output despite changes in on-line voltage and load current.

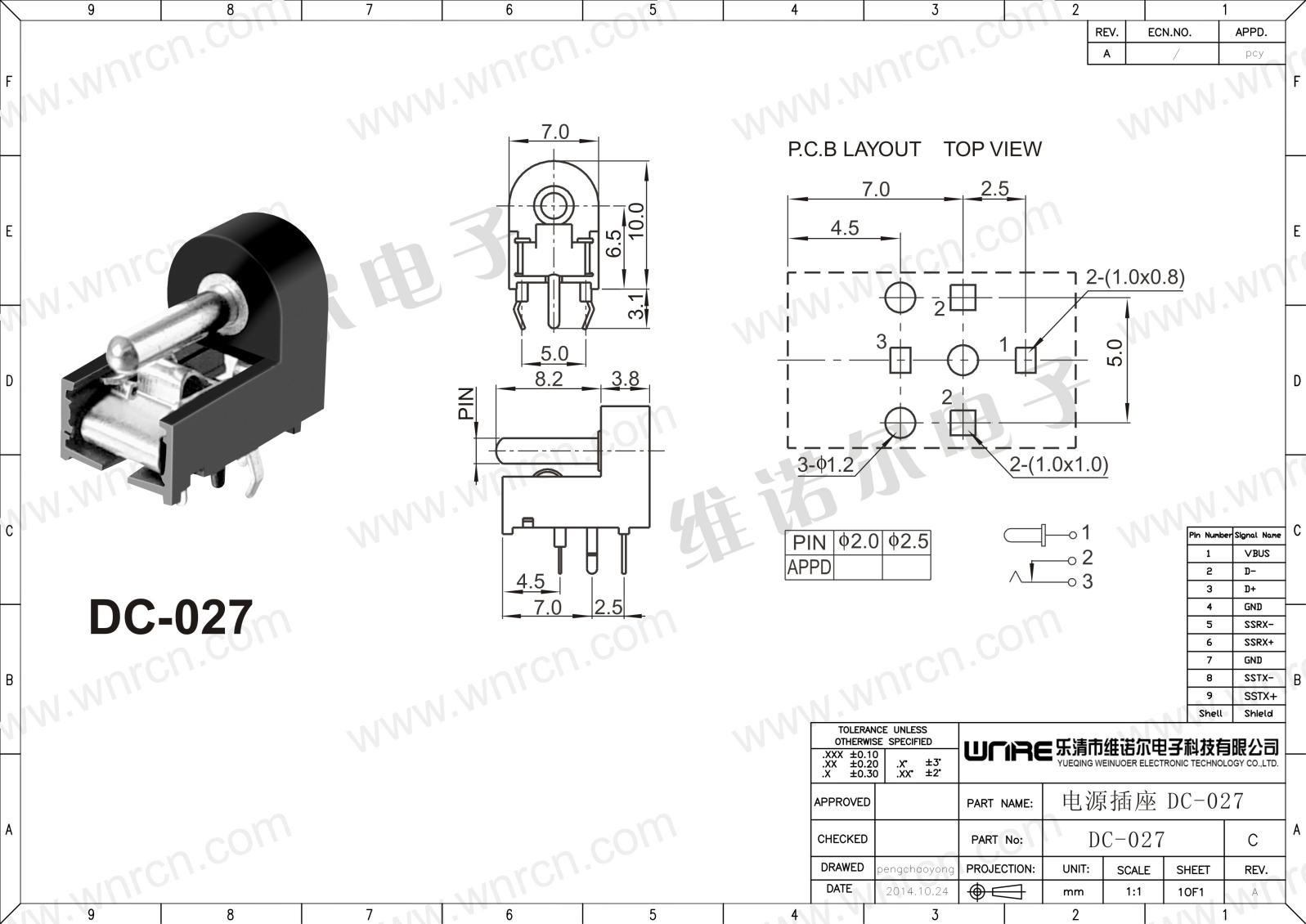

The DC socket is a specialized power supply component composed of a transverse jack, longitudinal jack, insulation base, and fork-type contact shrapnel. It features a directional keyway, with two fork-type contact shrapnels located in the center of the base in a non-connected vertical and horizontal arrangement.
One end of the shrapnel serves as a wiring port exposed on the base cylinder for connecting power cables. The other end consists of two elastic arms interconnected by a matrix, arranged in the plug insertion direction to ensure a stable supply for computer monitors and other digital equipment.
