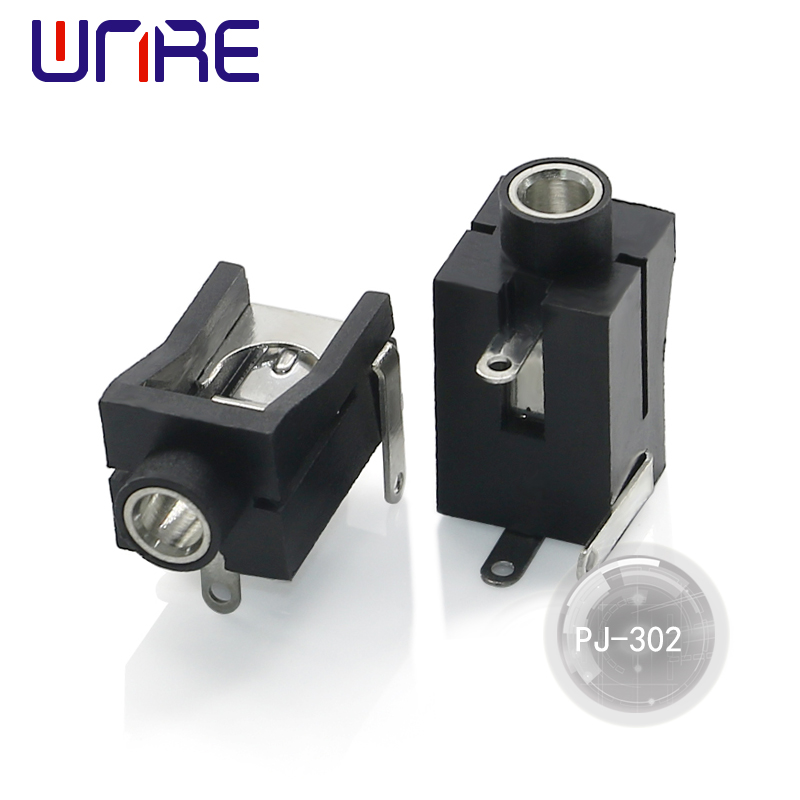

OEM PJ-302, Black, 3-pin, Headphone socket, High quality product Suppliers, Companies

Product model: PJ-302 Metal material: Tin/silver plated Shell material: Nylon Current: 0.5A Voltage: 30V Color: Black Temperature range: -30~70℃ Withstand voltage: AC500V(50Hz) /min Contact resistance: ≤0.03Ω Insulation resistance: ≥100MΩ Inserting and pulling force: 3-20N Life span: 5,000 times

Product Description

🎧
With 5.1 channel and audio high fidelity different structural design.
Small and light appearance, good electrical conductivity, high safety and stability.
🛠️
DIP and SMT are available for installation to meet different assembly needs.
🔄
Contact terminal adopts elastic structure design to ensure good, stable contact and service life.

Customizable Design: Can design different functional connection products according to customer requirements.

Superior Audio Output: Using high-quality conductor materials and metal contacts, the PJ-302 effectively reduces noise and distortion to provide clear, authentic audio performance, enabling users to enjoy a better music experience.

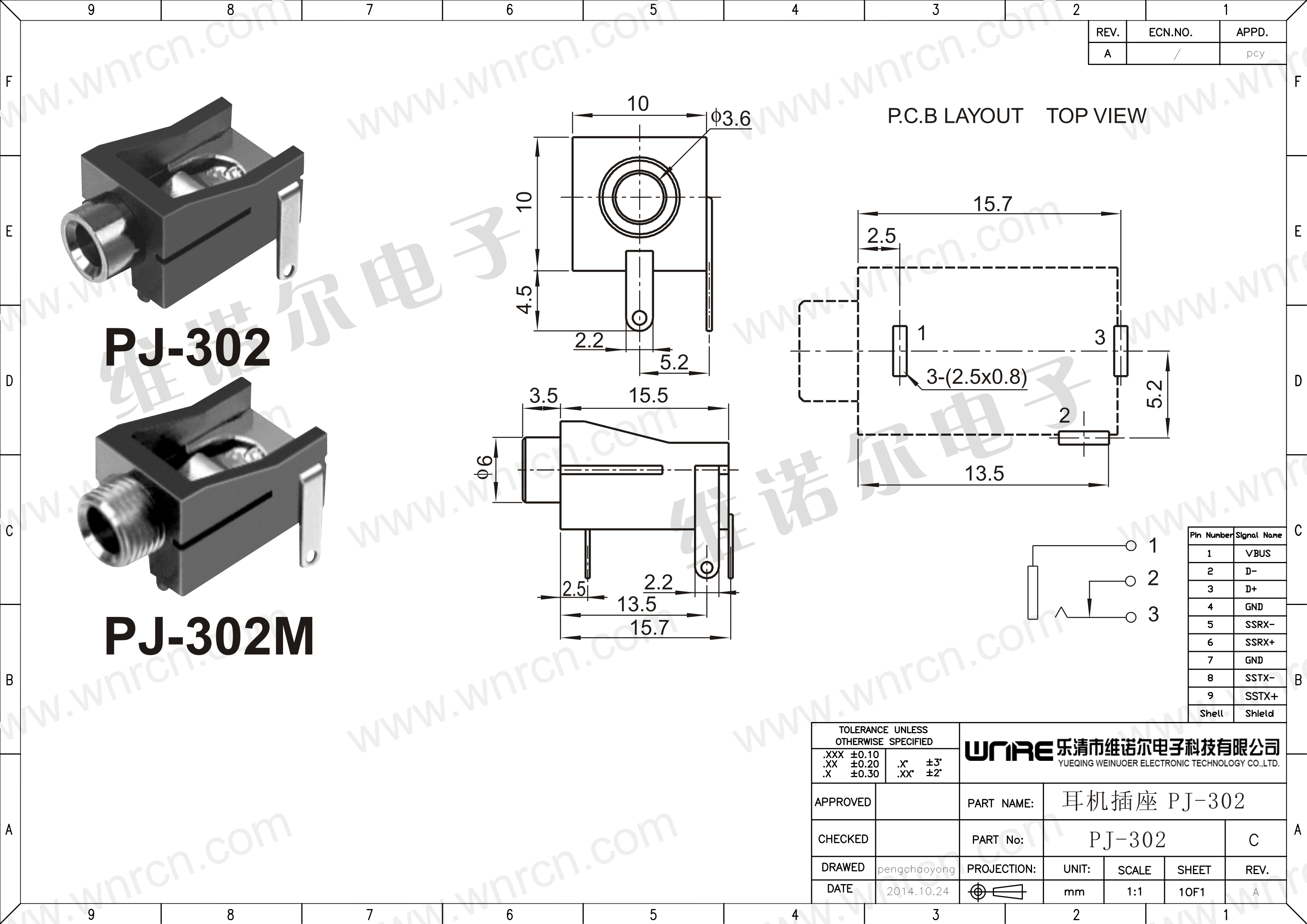

PJ-302 Audio Product
🏗️
Stability and durability: The interface part of PJ-302 is made of metal material, which has high oxidation resistance and stability.
📱
Light and easy to use: PJ-302 is small in size, light in weight, easy to plug and remove, very convenient to use.
Wide Application Range:

PJ-302 is suitable for all devices that can accept 3.5mm audio input. It is widely used in:

  • • Mobile phones & Tablets
  • • Computers & Laptops
  • • CD/DVD players
  • • MP3 & Digital products
  • • Household appliances
  • • Communication products

Diversified interface selection: PJ-302 provides a variety of different interface forms, such as wire plug, plate, isolation and other interfaces, which is convenient for users to choose and use according to actual needs.

The PJ-302 Headphone socket is compatible with many different audio devices, such as mobile phones, laptops, tablets, audio players, and more. As long as your device has a headphone jack, you can easily connect to the PJ-302 headphone socket. It is a highly compatible, high-performance, portable and durable audio interface, very suitable for use in travel, sports, office and other occasions.

PJ-302 Application View
 Frequently Asked Questions
Q1: What are the primary audio features of the PJ-302? The PJ-302 features a 5.1 channel and audio high fidelity design, utilizing high-quality conductor materials to reduce noise and distortion for clear audio performance.
Q2: What mounting options are available for this socket? Both DIP (Dual In-line Package) and SMT (Surface Mount Technology) are available for installation to accommodate different manufacturing requirements.
Q3: Is the PJ-302 durable for long-term use? Yes, the interface is made of metal with high oxidation resistance. The contact terminals use an elastic structure design to ensure a stable contact and long service life.
Q4: Which devices are compatible with the PJ-302 headphone socket? It is compatible with any device accepting 3.5mm audio input, including mobile phones, laptops, tablets, MP3 players, and desktop computers.
Q5: Are there different interface forms available? Yes, the PJ-302 offers diversified choices including wire plug, plate, and isolation interfaces to meet actual user needs.
Q6: What makes the PJ-302 suitable for portable devices? Its small and light appearance, combined with easy plug-and-remove functionality, makes it an ideal accessory for mobile electronics and travel use.
