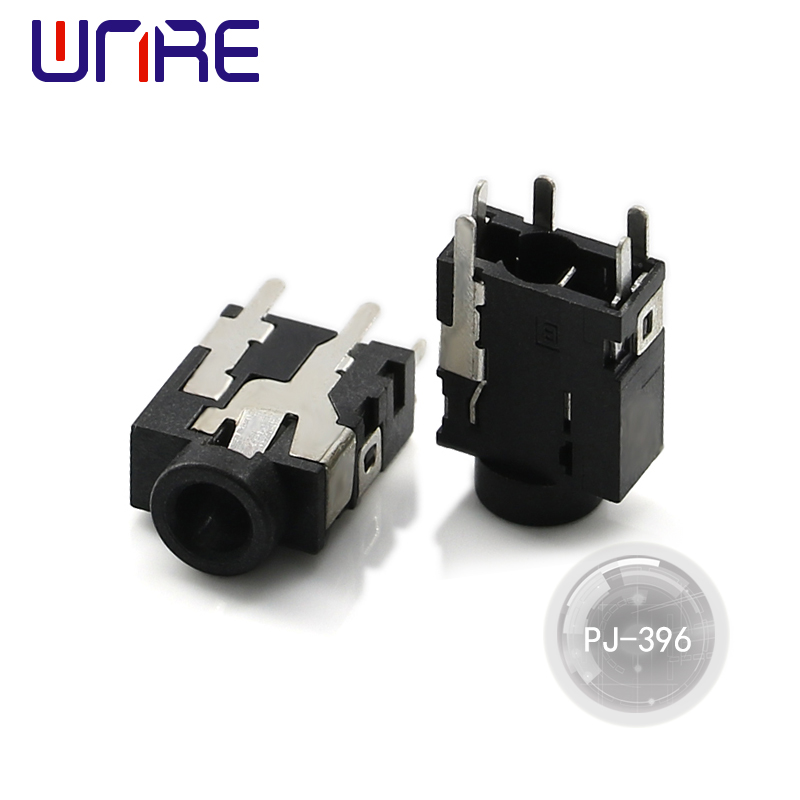

China pj-396 Headphone Socket, Black, 5-pin audio device Manufacturer, Companies

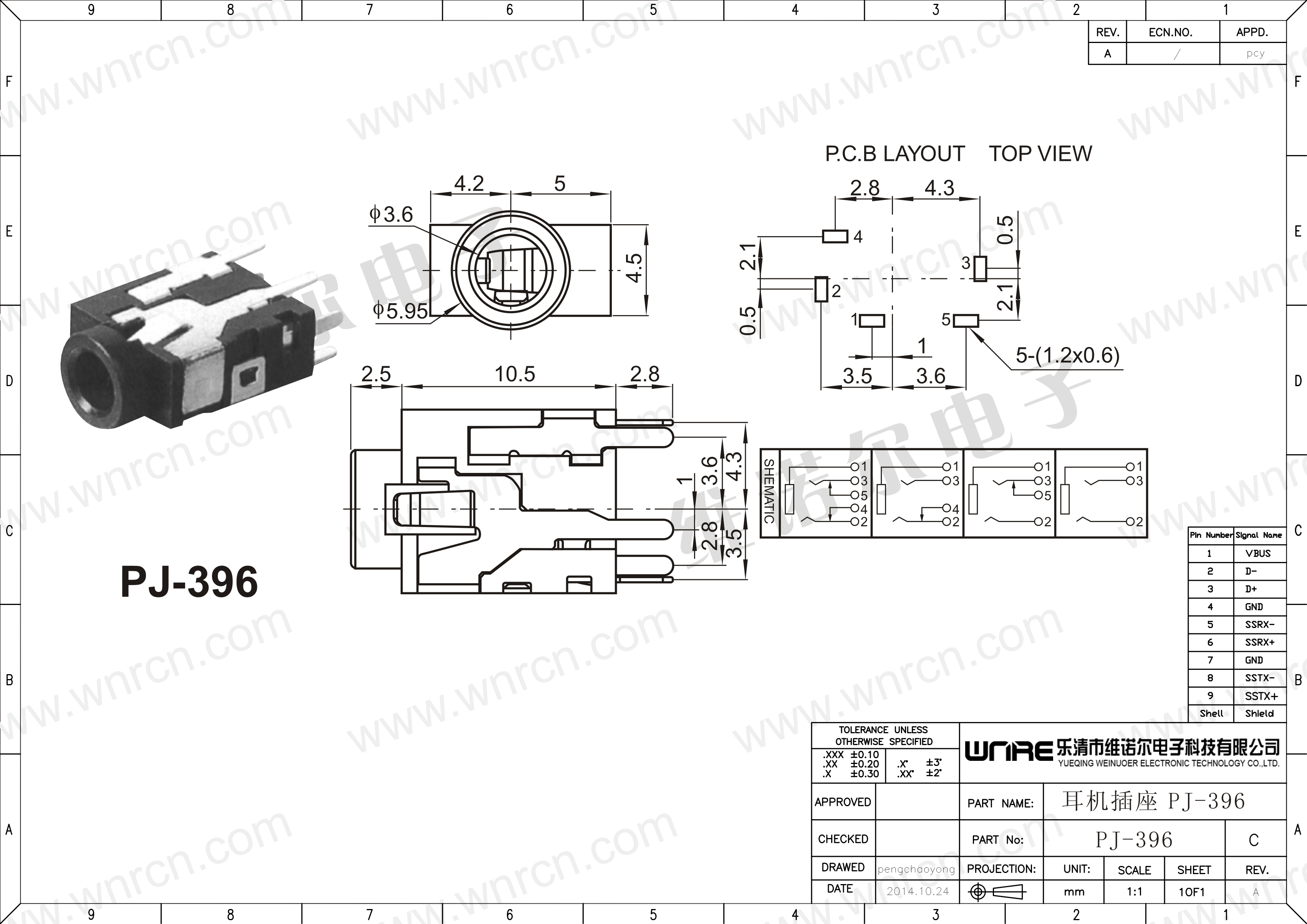

Product model: PJ-396 Metal material: nickel plated/silver plated Shell material: Nylon Current: 0.5A Voltage: 30V Color: Black Temperature range: -30~70℃ Withstand voltage: AC500V(50Hz) /min Contact resistance: ≤0.03Ω Insulation resistance: ≥100MΩ Inserting and pulling force: 3-20N Life span: 5,000 times

Product Description

5.1 channel and audio high fidelity structural design.
Small and light appearance, good electrical conductivity, high safety and stability.
DIP and SMT available for versatile installation.
Contact terminal adopts elastic structure design to ensure stable contact and long service life.
Customizable functional connection designs according to requirements.

Universal Versatility: The pj-396 Headphone socket is a versatile audio interface suitable for most headphones and audio devices. Users can easily connect to cell phones, computers, MP3s, and other external audio equipment.

Stable Connection: Features stable insertion and removal performance. Ensures no bad contact or loose situations, maintaining signal stability and avoiding noise interference.

High Durability: Manufactured with high-quality materials offering excellent wear, folding, and high-temperature resistance, reducing maintenance costs and replacement frequency.

Interchangeability: Adopts the universal 3.5mm interface design, ensuring compatibility across various equipment without the need for additional accessories.

Aesthetic Design: Smooth surface, refined outline, and high-quality manufacturing technology provide a fashionable look and premium feel.

Product Applications
Video and Audio Products Notebooks & Tablets Communication Products Household Appliances CD/DVD Players MP3 & MP4 Players Digital Products

Many mobile phones and laptops are equipped with the pj-396 headphone socket, allowing users to connect earbuds or external audio devices for a superior sound quality experience while listening to music or watching movies.

Frequently Asked Questions
Q1: What is the interface size of the pj-396 socket?
The pj-396 headphone socket adopts the universal standard 3.5mm interface design.
Q2: Does it support different mounting methods?
Yes, both DIP (Dual In-line Package) and SMT (Surface Mount Technology) are available for installation.
Q3: How many audio channels does this connector support?
It is designed with 5.1 channel support for high-fidelity audio output.
Q4: Is the connection stable for frequent use?
Yes, the contact terminal features an elastic structure design to ensure stable contact and a long insertion/removal service life.
Q5: Can it withstand high temperatures?
The pj-396 is made from high-quality materials that offer excellent wear resistance and high-temperature resistance.
Q6: What devices are compatible with this socket?
It is compatible with a wide range of devices including smartphones, laptops, MP3/MP4 players, tablets, and household audio systems.
