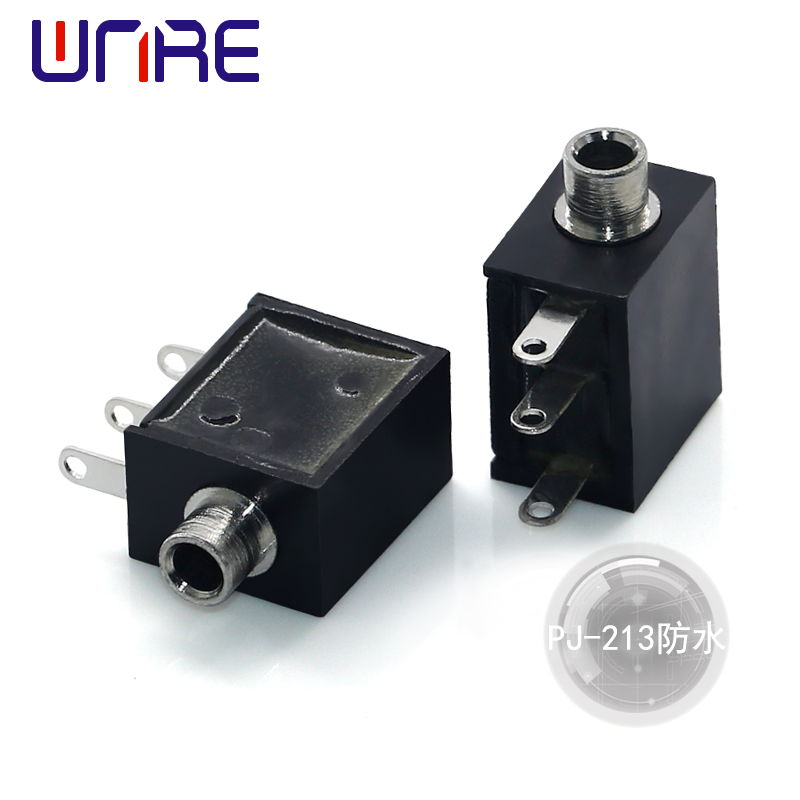

China PJ-213 Waterproof, 3-pin, Black, Headphone socket Supplier, Suppliers

Product model: PJ-213 Metal material: Tin/silver plated Shell material: Nylon Current: 0.5A Voltage: 30V Color: Black Temperature range: -30~70℃ Withstand voltage: AC500V(50Hz) /min Contact resistance: ≤0.03Ω Insulation resistance: ≥100MΩ Inserting and pulling force: 3-20N Life span: 5,000 times

Product Description

High Fidelity: 5.1 channel design with structural high fidelity for superior sound quality.
Compact Design: Small and light appearance with high safety, stability, and good conductivity.
Flexible Installation: Both DIP and SMT options are available for versatile mounting.
Stable Contact: Elastic structure design ensures stable connection and extended service life.

The PJ-213 is a high-quality headphone socket featuring superior performance and an easy-to-use design. Utilizing a high-quality sound chip and advanced digital processing technology, it minimizes distortion to provide exceptional sound clarity. Its advanced internal circuit design effectively reduces noise, improving the authenticity of the audio experience.

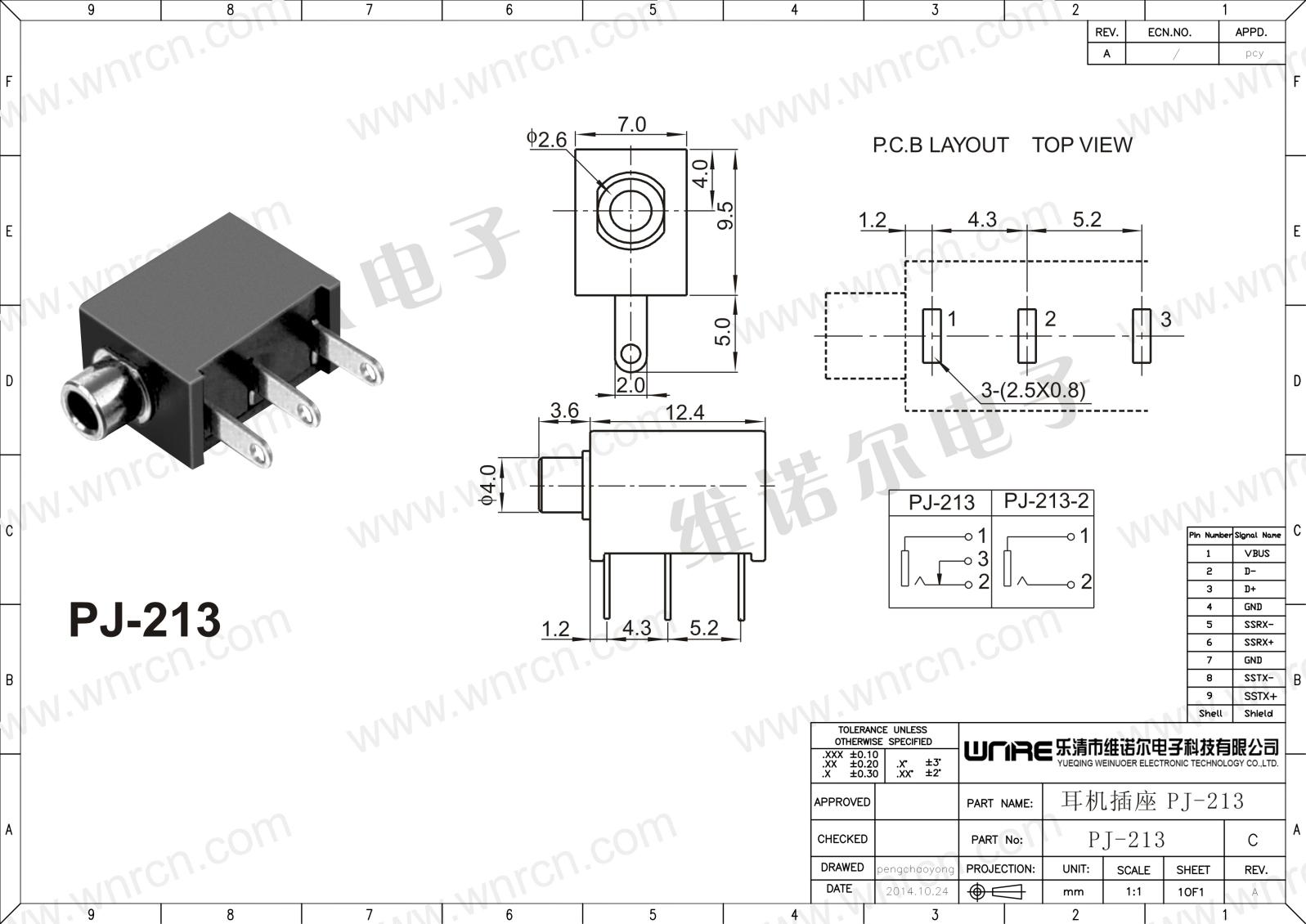

PJ-213 Headphone Socket

With a diameter of 3.5 mm, this socket is a very popular audio jack suitable for a wide range of applications. It provides convenient and practical audio functions for mobile phones, tablets, and other portable devices, allowing users to enjoy music, watch movies, or use microphones for voice recognition and calls.

In addition to portable devices, the PJ-213 plays a vital role in connecting audio equipment like MP3 players, TVs, and computers. In home audio systems, it facilitates the sharing and application of multimedia devices through stable audio signal transmission. Thanks to professional conductor and connector technology, it ensures HD audio stability and purity by reducing interference.

PJ-213 Audio Connector
Frequently Asked Questions (FAQ)
What are the main audio features of the PJ-213?
The PJ-213 supports 5.1 channel audio and high-fidelity sound quality with low distortion and noise reduction capabilities.
What is the size of the PJ-213 headphone jack?
The socket has a standard diameter of 3.5 mm, making it compatible with most common audio devices.
Which devices are compatible with this socket?
It is widely used in mobile phones, tablets, TV sets, computers, MP3 players, and various home audio systems.
How can the PJ-213 be installed on a PCB?
The product is designed for versatility and is available for both DIP (Dual In-line Package) and SMT (Surface Mount Technology) installations.
Does the PJ-213 support microphone functions?
Yes, it allows users to access audio signals through headphones and use a microphone for calls or voice recognition.
Why is the signal transmission quality so high?
It uses professional conductor and connector technology, which ensures HD audio stability and reduces interference and noise.
