China IF-FM8M5-3543-150A Manufacturer, Manufacturers

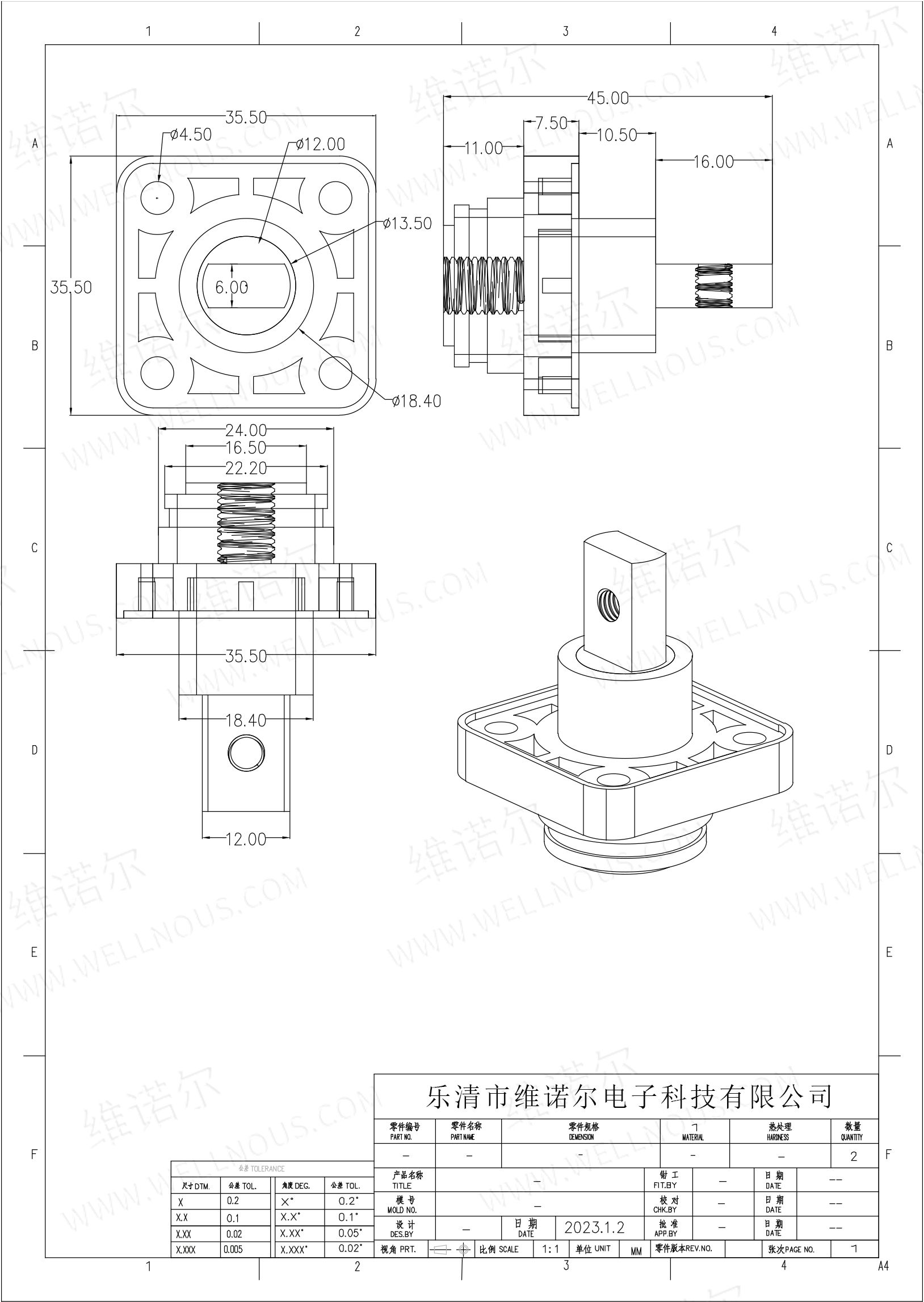

Product Model: IF-FM8M5-3543-150A Material: PA66/H62 BRASS Current: 150A Voltage: 0~600V AC. Color: red/black Dielectric strength: 3000V Copper nose size:12*6mm Screw diameter: copper column outer diameter Φ19 thread inner diameter M8 head/M5 tail Mounting screw: M4*16mm Opening size: Φ18.5-Φ4.5*4 (23*23mm)

Product Description

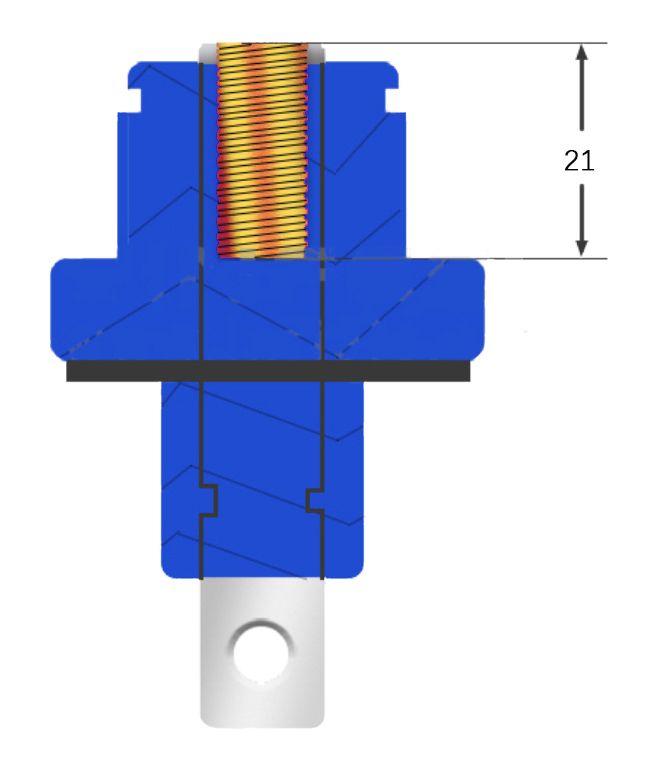

Wiring Column Thread Depth

To effectively avoid slippery wires during use, the thread depth is designed at 21mm. This ensures a solid connection for voltage lines, preventing loosening and eliminating hidden hazards.

PA66 Premium Material

1. Excellent insulation and dielectric properties for secure use.
2. Superior heat resistance, aging resistance, and flame retardant properties.

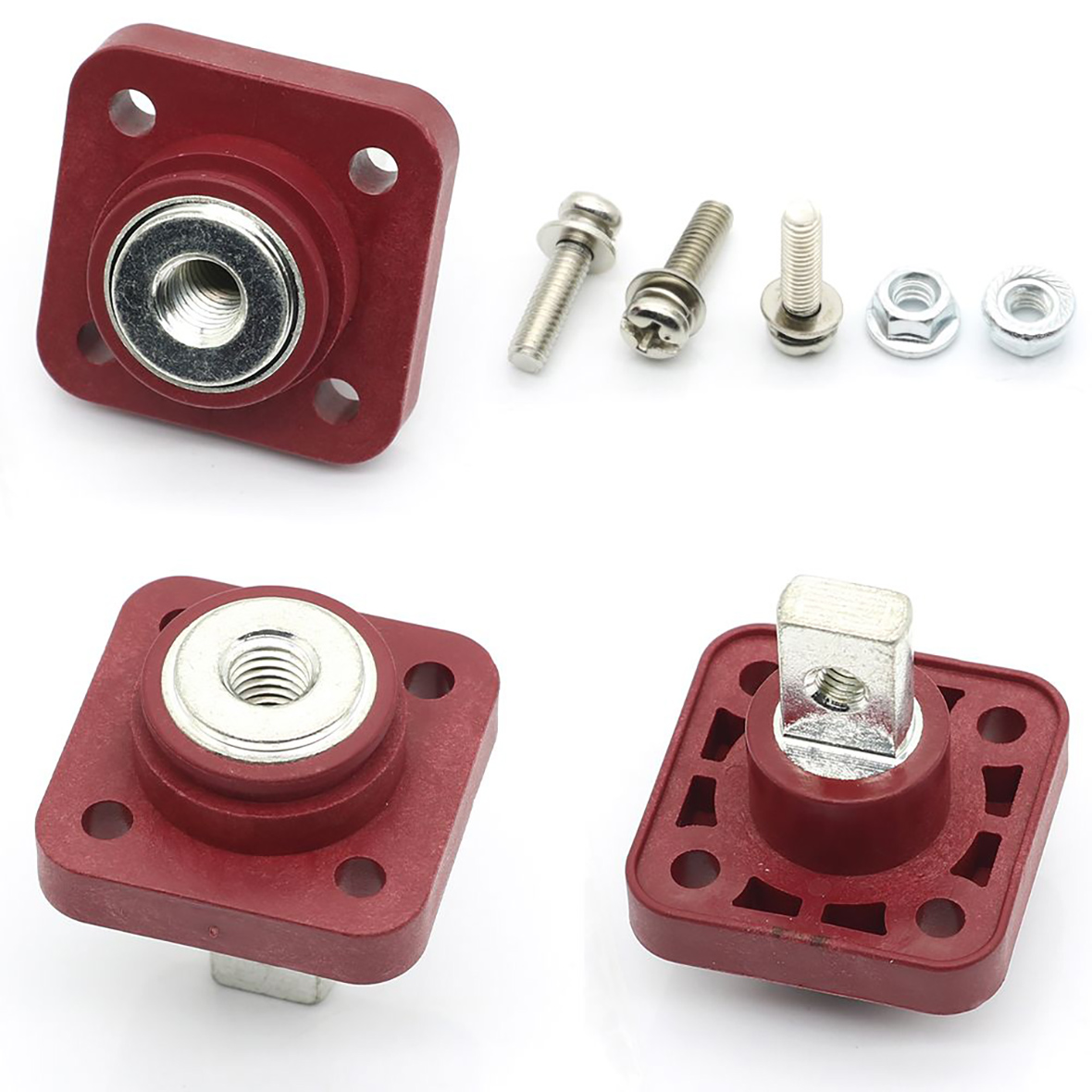

Nickel Plating & Sealing

The nickel plating process improves wear and corrosion resistance. Coupled with a professional sealing gasket, it ensures a tighter seal between the product and the plate when tightened.

Versatile Applications: Widely used in energy storage systems, batteries, storage cabinets, high-current machinery, and various industrial equipment scenarios.
Energy Storage Batteries Storage Cabinets High-Current Machines
Frequently Asked Questions
What is the advantage of the 21mm thread depth?
The 21mm depth is specifically designed to prevent wire slippage, ensuring the connection is firm and less likely to loosen over time, which enhances safety.
Is PA66 material safe for high-temperature environments?
Yes, PA66 is known for its excellent heat resistance and flame retardant properties, making it highly durable against aging and thermal stress.
How does nickel plating benefit the connector?
Nickel plating provides a protective layer that significantly improves surface wear resistance and prevents corrosion in harsh environments.
Does the product provide a waterproof seal?
The included sealing gasket ensures a tight and secure fit between the product and the mounting plate, enhancing overall sealing performance.
Can these connectors be used for high-current applications?
Absolutely. These are ideally suited for high-current machines, equipment, and large-scale energy storage battery systems.
Does the material have good insulation?
Yes, PA66 material provides excellent dielectric properties, ensuring reliable insulation for electrical safety.
