China IF-FM8M6-3356-150A Factories, Company

Product Model:IF-FM8M6-3356-150A Material:PA66/H62 BRASS Current:150A Voltage: 0~600V AC. Color: red/black Dielectric strength:3000V Opening size: Φ18.2-Φ4.2*4 (24*24mm) Copper nose size:12*18mm Screw diameter:M6M8 Mounting screw:M4

Product Description

PA66 Material Performance 1. Excellent insulation and dielectric properties, ensuring safe and secure usage. 2. Superior heat aging resistance and flame retardant capabilities.
Nickel Plating Process Significantly improves the wear resistance of the product surface and enhances corrosion resistance for long-term durability.

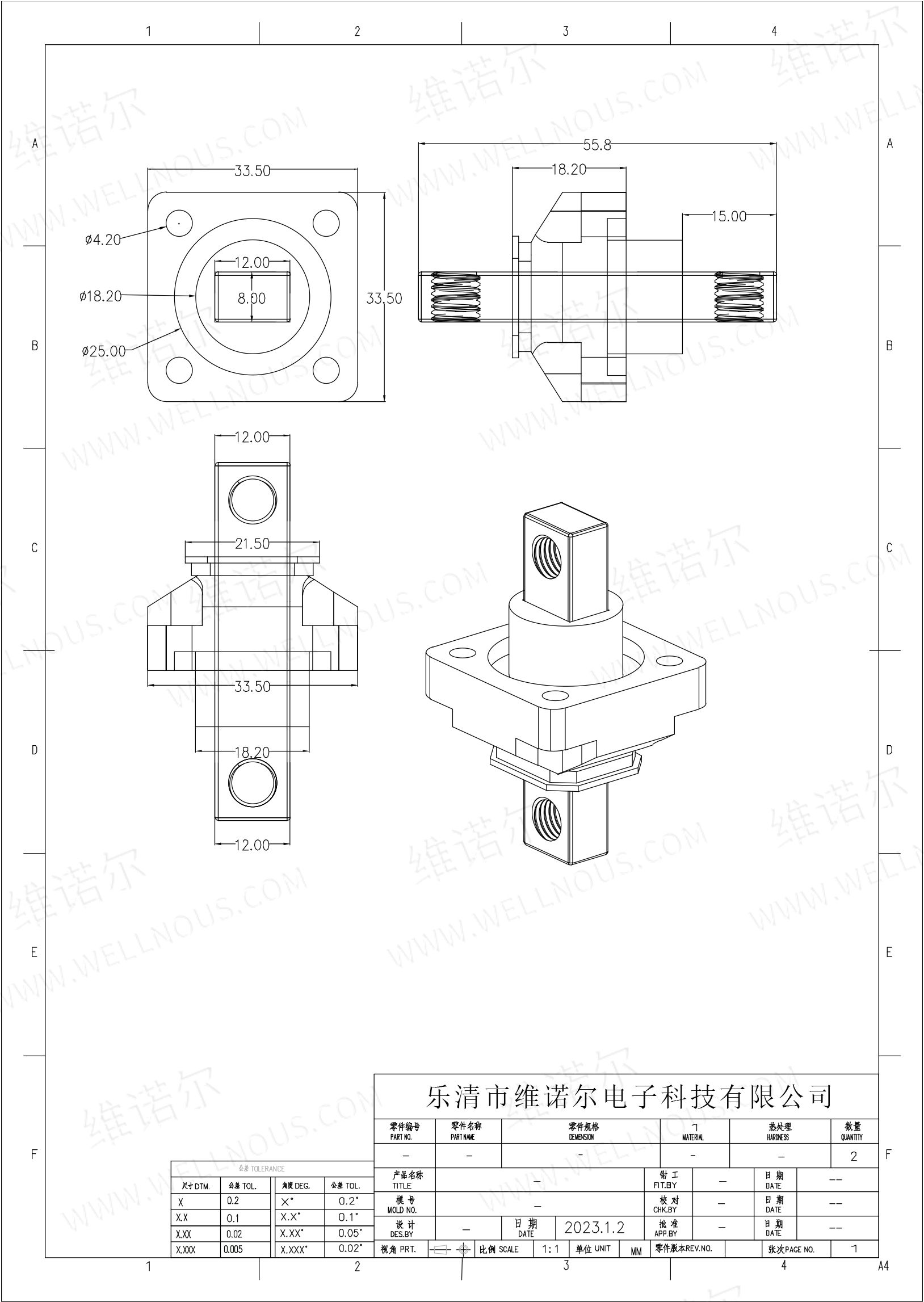

PA66 Material Product

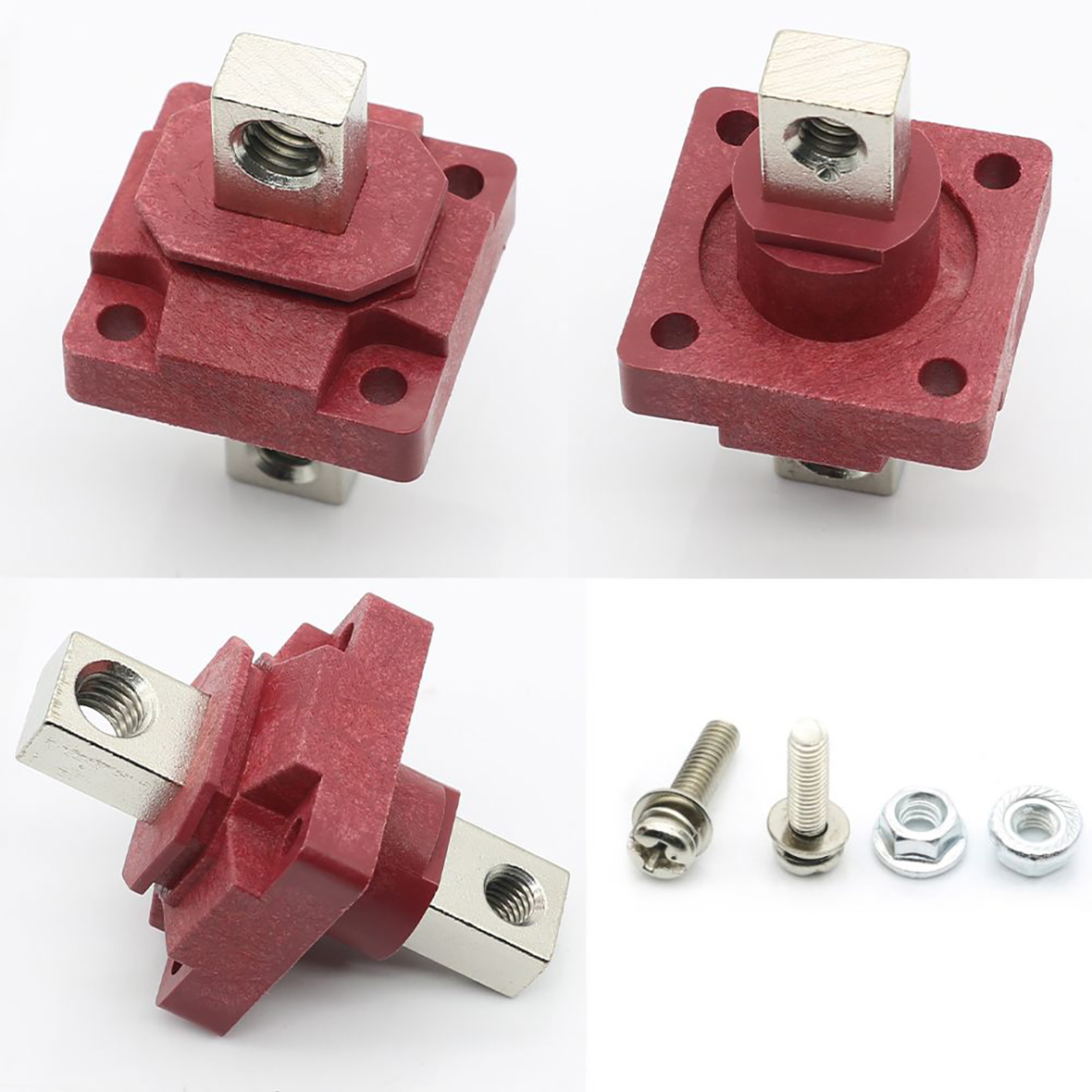

Nickel Plated Component
Widely Used Applications
Energy Storage
Batteries
Storage Cabinets
High-current Machines & Equipment
Application Scenario
Frequently Asked Questions
What are the main advantages of using PA66 material?
PA66 is known for its excellent insulation, dielectric properties, and high heat aging resistance, making it extremely safe for electrical applications.
Is the material flame retardant?
Yes, the PA66 material used features flame retardant properties to ensure safety in high-temperature or critical electrical environments.
What is the benefit of the nickel plating process?
Nickel plating is applied to improve the surface wear resistance and provide strong protection against corrosion.
Can these components be used in energy storage systems?
Absolutely. They are widely used in energy storage, batteries, and storage cabinet scenarios due to their robust design.
Are these products suitable for high-current equipment?
Yes, they are specifically designed to handle high-current machines and various industrial equipment effectively.
How does the insulation property benefit the user?
The high-quality dielectric properties ensure that the connectors operate safely without electrical leakage or failure.
