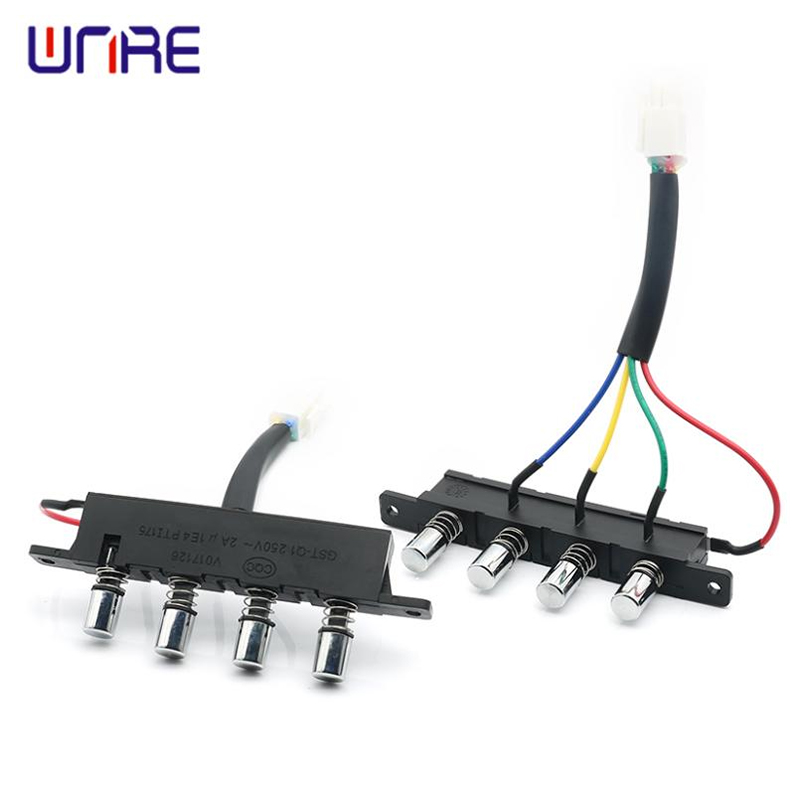

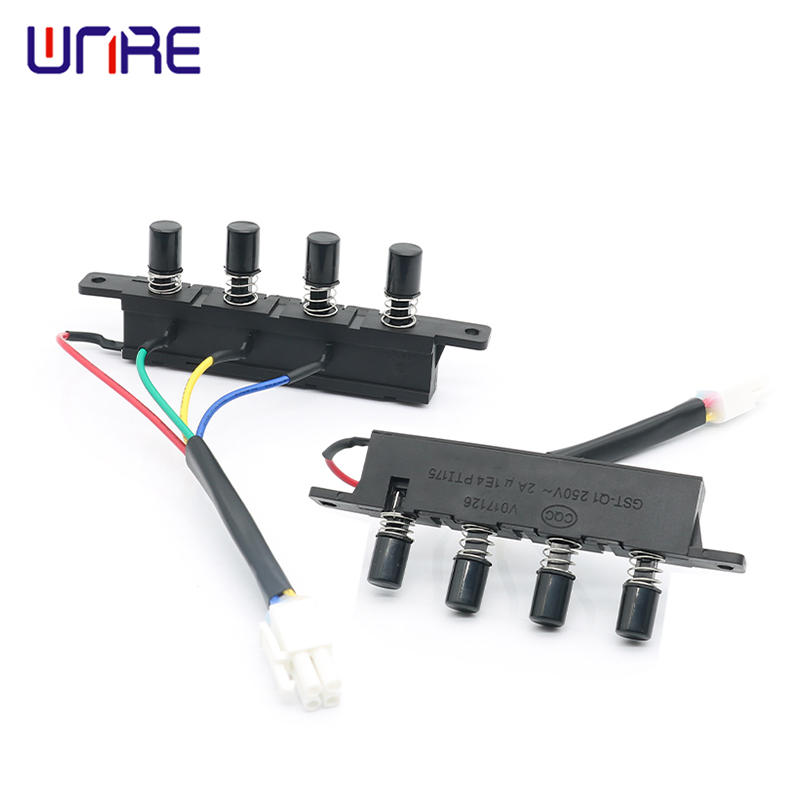

China A complete set of keyboard switches GST Q1 Color With Black And Silver Factories, Company
Product Model:GST-Q1-silver
Voltage Resistance: 2000V DC
Insulation resistance: ≥100MΩ
Mechanical life: 10000times
Operating Force：5N～15N
Withstand voltage：2000V 1s no breakdown.
Temperature: -25～+70℃
Relative humidity：≤95%
Rated Voltage：250V AC
Rated Current：2A
The light is red, the strong gear is green, the weak gear is yellow, and the power supply is blue

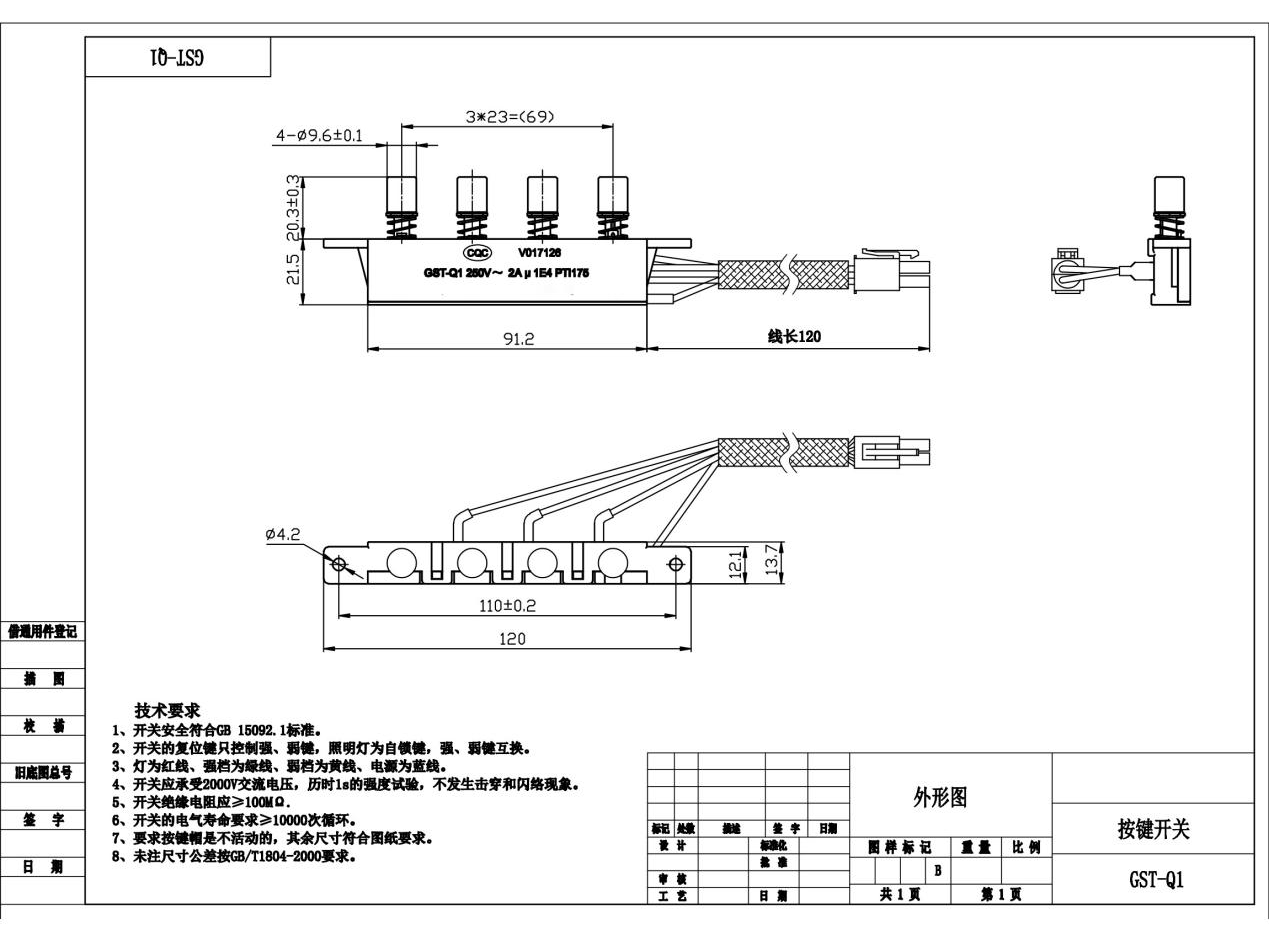

Surface Quality: Metal surface should be smooth and not be corroded by rust. Plating should not crease or peel off.
Casing Integrity: Plastic casing should not be uneven, crude or have any cracks or damage.
Insulation Performance: Different parts conducting electricity should bear the function of experiment voltage with no punctures.
Soldering & Durability: 90% of the surface will be covered by solder. Components satisfy mechanical and electronic performance without base deformation. Action remains smooth without blocking.
Frequently Asked Questions
1. What are the quality requirements for the metal surfaces?
The metal surface must be smooth, free from rust corrosion, and the plating must be intact without creasing or peeling.
2. How should the plastic casing appear upon inspection?
The plastic casing should be even and refined, showing no signs of crude manufacturing, cracks, or physical damage.
3. What are the standards for electrical insulation?
Insulation must withstand experimental voltage across different conducting parts without any punctures or failures.
4. What is the required solder coverage for the surface?
At least 90% of the relevant surface area must be effectively covered by solder for optimal performance.
5. Will the base deform under mechanical stress?
No, the design ensures no deformation of the base, allowing it to satisfy both mechanical and electronic performance requirements.
6. How does the button mechanism perform during operation?
The action is designed to be smooth without any blocking phenomenon, and the button is engineered to allow for standard wear on the surface.
