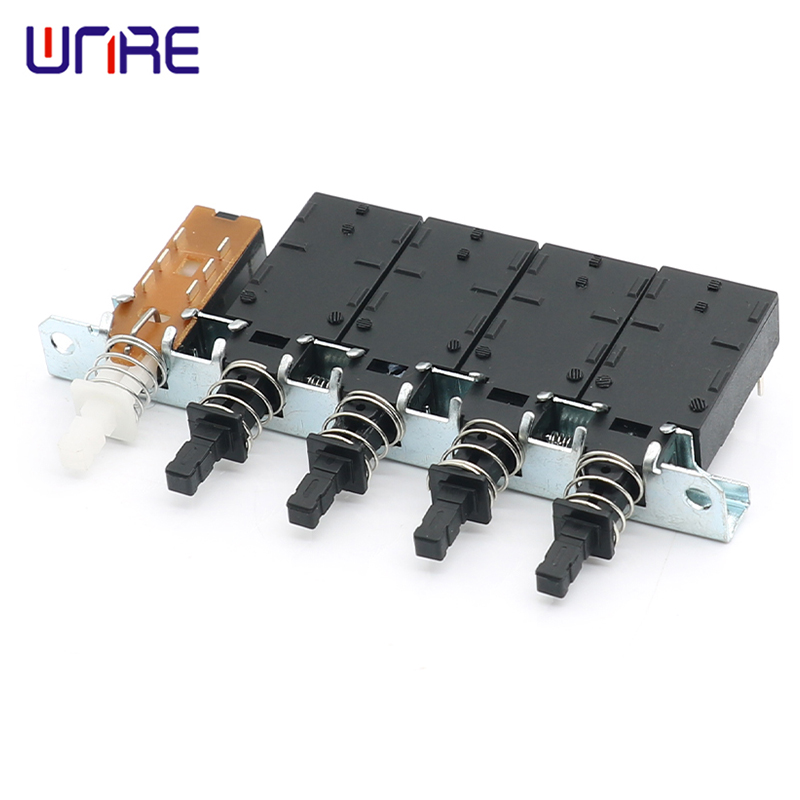

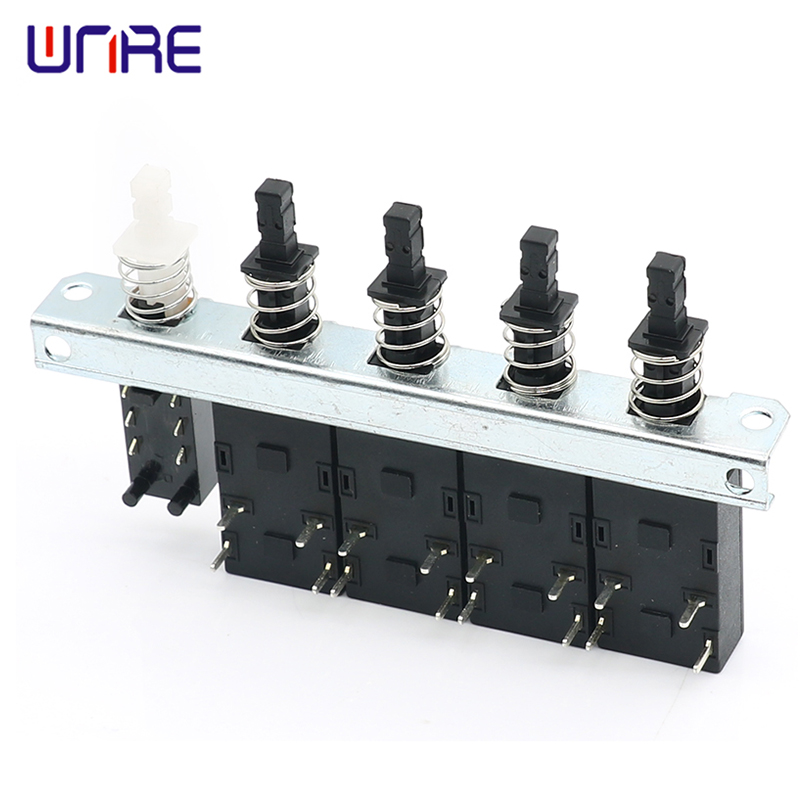

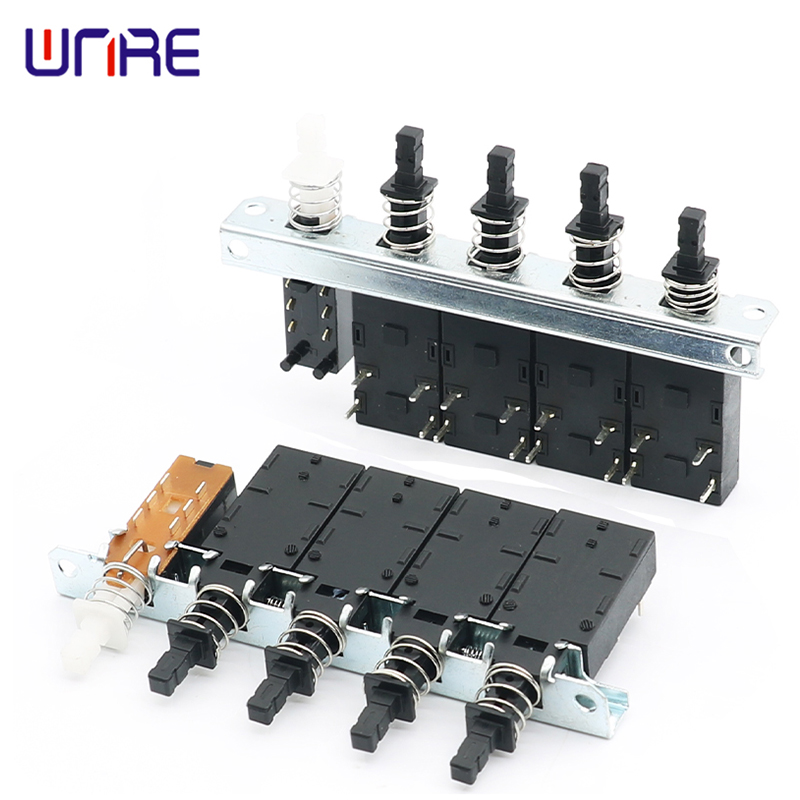

OEM Key Switch A complete set of keyboard switches GST P4A15 5P1 Car Engine Power Switch Power switch and button Suppliers, Factory
Product Model:GST-P4A15-5P1
Voltage Resistance: 2000V DC
Insulation resistance: ≥100MΩ
Mechanical life: 20000times
Operating Force：2N～8N
Withstand voltage：1500V 1s no breakdown.
Temperature: -25～+85℃
Relative humidity：≤95%
Rated Voltage：250V AC
Rated Current：4A
Premium Surface Quality
Metal surfaces are engineered to be smooth and completely free from rust corrosion. The high-quality plating ensures no creasing or peeling occurs during use.
Durable Plastic Casing
The plastic components are precision-molded to avoid uneven textures, crude finishes, or any structural cracks and damages.
Superior Insulation
Advanced insulation technology protects conducting parts, successfully bearing experiment voltages without any punctures or electrical failure.
Reliable Soldering & Performance
Features 90% solder coverage and zero base deformation, ensuring the component satisfies all mechanical and electronic performance requirements with smooth button action.
Frequently Asked Questions
What are the appearance requirements for the metal parts?
Metal surfaces must be smooth and free from any rust corrosion. Additionally, the plating must be stable and should not crease or peel off.
How is the quality of the plastic casing ensured?
The plastic casing is inspected to ensure it is even and refined, with no cracks, crude spots, or physical damage.
Can the insulation withstand high voltage?
Yes, the insulation of the electricity-conducting parts is designed to bear specific experiment voltages without any punctures.
What is the standard for solder coverage?
At least 90% of the relevant surface will be covered by solder to ensure optimal connectivity.
Is there any risk of deformation during use?
The design ensures there is no deformation of the base, allowing the product to satisfy both mechanical and electronic performance standards.
How does the button mechanism perform?
The action operates smoothly without any blocking phenomenon, and the button is designed to allow for standard surface wear.
