China 3-Core MR60PW-M Gold-plated Plug For RC Aircraft Parts Manufacturer, Suppliers
1 / 1
China 3-Core MR60PW-M Gold-plated Plug For RC Aircraft Parts Manufacturer, Suppliers

China 3-Core MR60PW-M Gold-plated Plug For RC Aircraft Parts Manufacturer, Suppliers

Product Model: MR60PW-M Rated Current: 35A MAX（△＜85℃） Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.0MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, YELLOW, BLACK Pinhole: Aldary，Elecreoplate: Gold Plating
Send Inquiry

Product Description

🔵
MR60PW-M is a horizontal assembly type 3PIN connector which provides an integrated solution for the horizontal PCB board with space. It is the standard component of lithium power supply and using line to line design. It can be used to connect the lithium battery to the controller.
MR60PW-M Connector Application
Electric vehicle | UAV | Traversal machine | Solar lamp

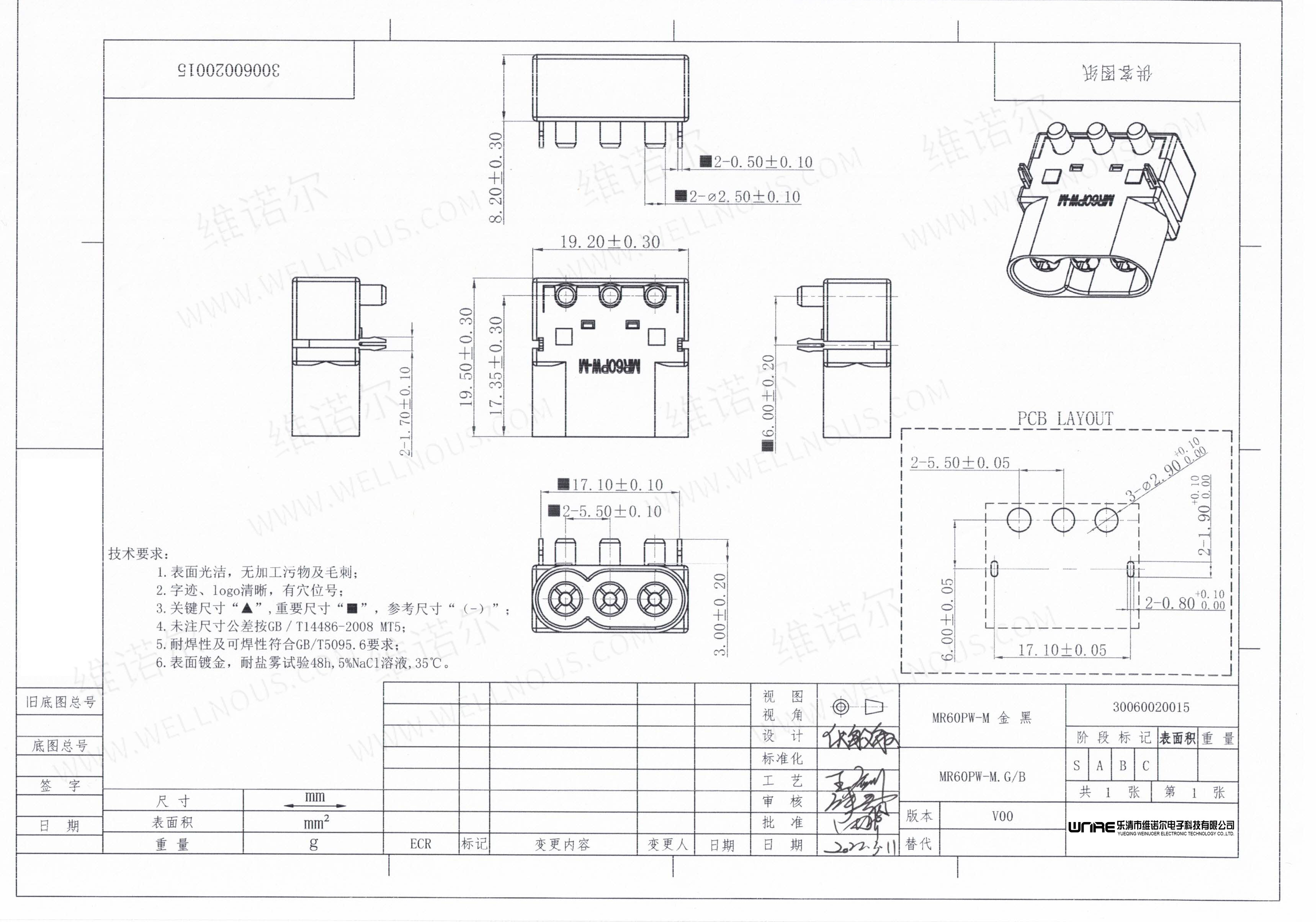

MR60PW-M Structural Design
MR60PW-M Product View

Usage Guidelines & Safety

⚠️ Please don’t exceed the rated current and voltage when in use.
⚠️ Do not use it when external forces are applied to the connector.
⚠️ Do not use it in high temperature or humid areas.
⚠️ When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.
Precaution 1
Precaution 2
Precaution 3
Balancing Car Application
Balancing car | Electric scooter | Twister
RC Models Application
Telecontrolled aircraft | Telecar | Remote control ship | Unicycle
Frequently Asked Questions (FAQ)
Q1: What is the main design feature of the MR60PW-M connector? A: The MR60PW-M features a horizontal assembly type 3PIN design specifically optimized for horizontal PCB board integration where space efficiency is required.
Q2: Where is this connector typically used? A: It is widely used in lithium power supplies, connecting batteries to controllers in devices like electric vehicles, UAVs, solar lamps, and balancing cars.
Q3: Can the MR60PW-M be used in outdoor environments? A: While it is used in solar lamps and UAVs, it should not be used in high temperature or excessively humid areas to ensure performance and safety.
Q4: What precautions should be taken during installation? A: It is critical to ensure that no external forces are applied to the connector during operation and that terminals are not deformed or bent during unpacking and assembly.
Q5: Does the MR60PW-M support high-current applications? A: It is designed for lithium power supplies; however, users must strictly adhere to the rated current and voltage specifications to prevent equipment damage.
Q6: Is it compatible with remote control (RC) vehicles? A: Yes, it is an ideal connection solution for telecontrolled aircraft, RC cars, remote control ships, and unicycles.
