💡 Product Overview

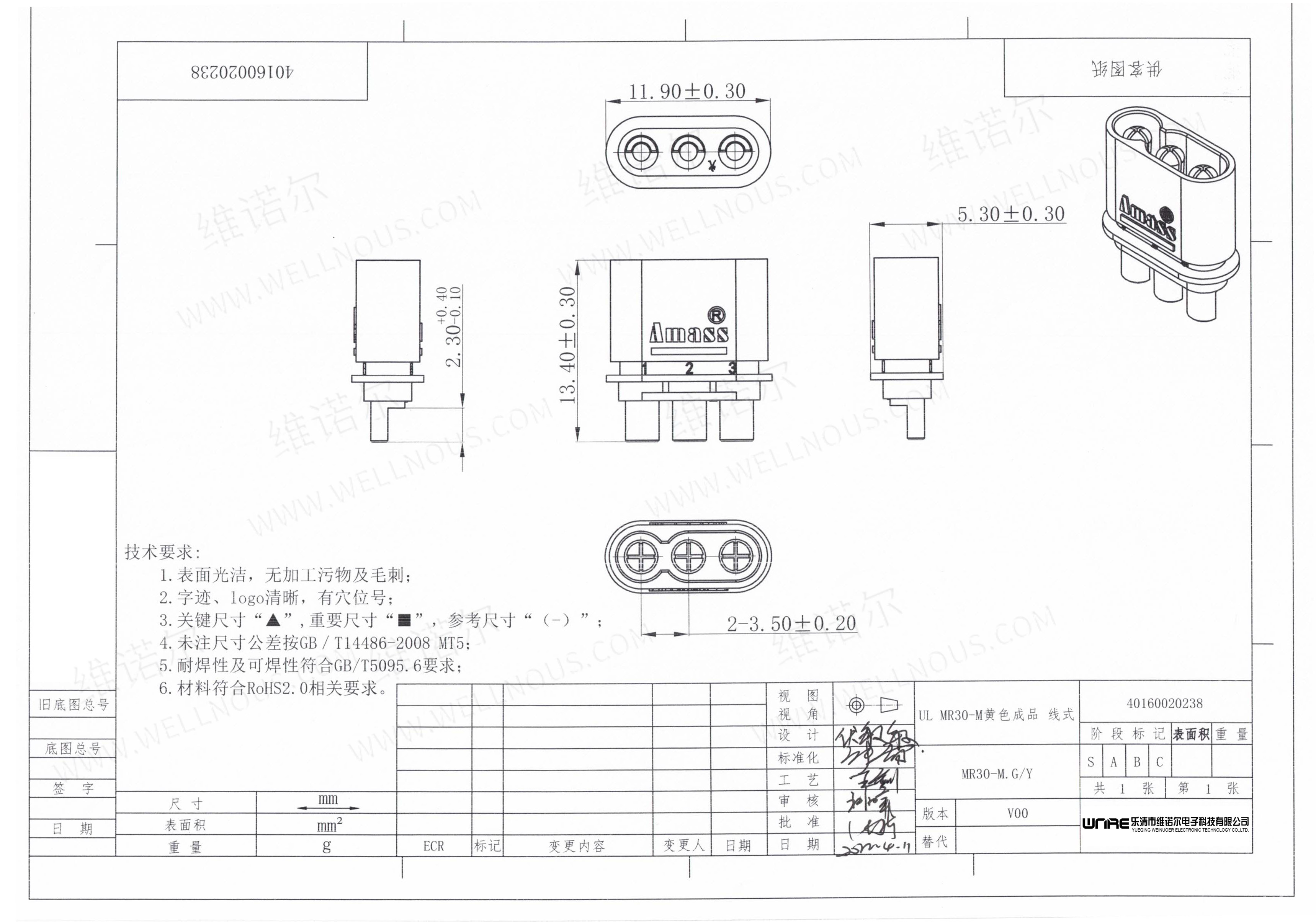

The MR30-M is a classic 180° line welded injection molded 3PIN connector, featuring an optional rear cover and rectangular arrangement. It provides an integrated solution for longitudinal space on PCB boards and can be combined perfectly with motors.
It is specifically designed for current power lithium power plug-in standard parts and other wired plate designs, making it ideal for wire-to-wire connection scenarios between lithium batteries and controllers.
Electric vehicle
UAV
Traversal machine
Solar lamp
⚠️ Usage Precautions
- Electrical Safety: When in use, do not exceed the rated current and voltage.
- Mechanical Stress: Do not use it when external forces are applied to the connector.
- Environment: Do not use it in a place with high temperature and humidity.
- Handling: When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.
Balancing car
Electric scooter
Twister
Telecontrolled aircraft
Telecar
Remote control ship
Unicycle
❓ FAQ
1. What is the MR30-M connector primarily used for?
It is designed for wire-to-wire connections between lithium batteries and controllers, widely used in UAVs, electric vehicles, and RC models.
2. Does the MR30-M support PCB mounting?
Yes, its 180° line welded design and rectangular arrangement provide an integrated solution for longitudinal space on PCB boards.
3. What should I be careful about during installation?
Ensure that no external force is applied to the connector and handle the package carefully to avoid deforming the terminals.
4. Can I use this connector in high-humidity environments?
No, it is recommended to avoid using the connector in places with high temperature and humidity to ensure stability.
5. What is the pin configuration of this model?
The MR30-M is a 3PIN injection molded connector featuring a classic welded design.
6. Are there specific voltage or current limits?
Yes, users must ensure they do not exceed the rated current and voltage specifications during operation for safety.
