OEM AS150UPB-M Connector Adapter Plug For Lipo Battery Suppliers, Factory

1 / 1

OEM AS150UPB-M Connector Adapter Plug For Lipo Battery Suppliers, Factory

Product Model: AS150UPB-M Rated Current: 75A MAX（△＜85℃）;Pin:1A Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤0.8MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA,YELLOW Pinhole: Aldary，Elecreoplate: Gold Plating

Send Inquiry

Product Description

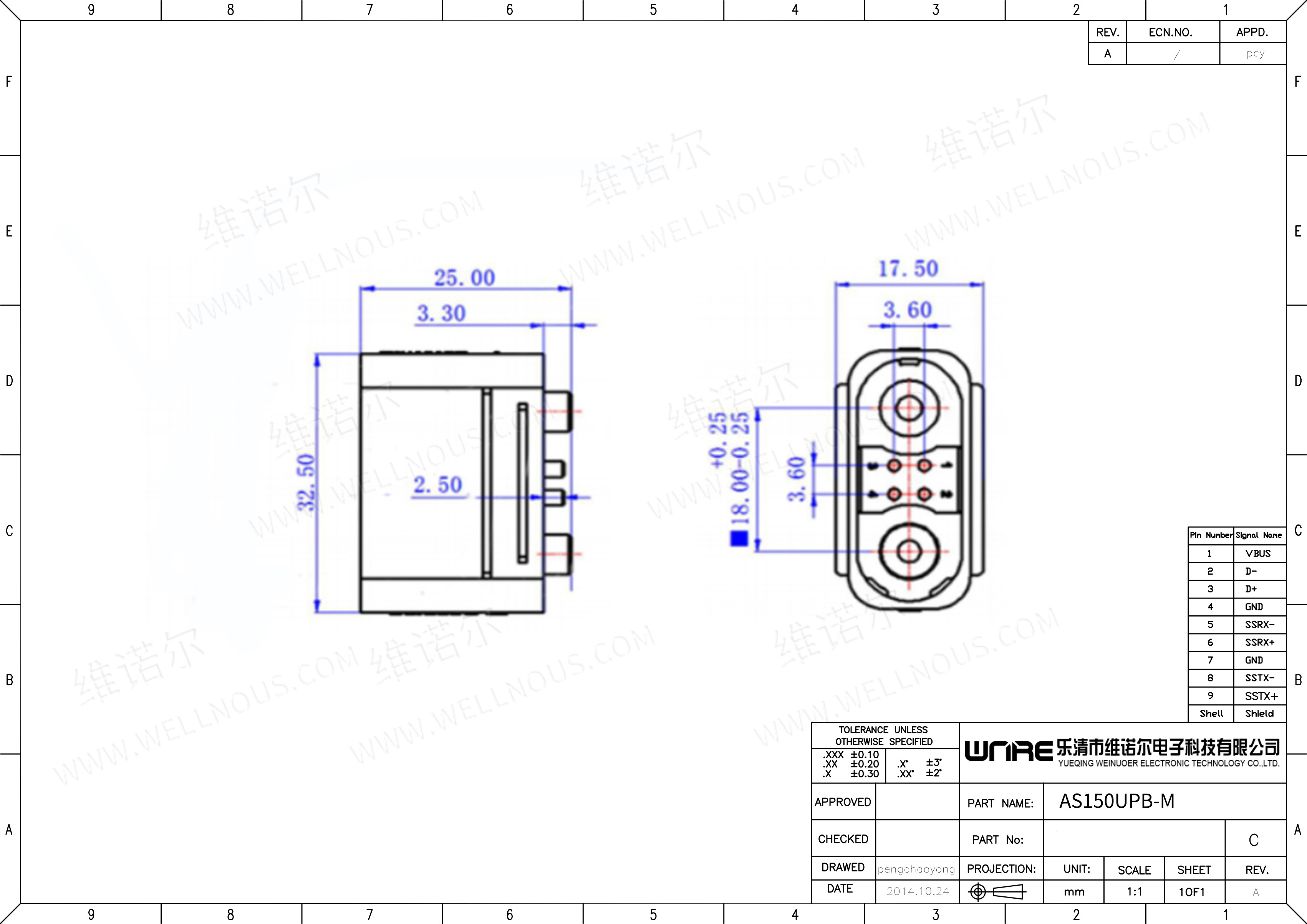

AS150UPB-M is a plate vertical assembly type 2+4PIN connector. The product dedicated to plant protection machine can meet the needs of intelligent battery use.
It can connecting the lithium battery to the controller.
