OEM High-current ICM150S17S-F Airplane Power Battery Plug Suppliers, Factories

Product Model: ICM150S17S-F Rated Current: 20A MAX（18AWG△＜85℃） Voltage Resistance: 600V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.5MΩ / ≤2.0 MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, BLACK Pinhole: Aldary，Elecreoplate: Gold Plating

Send Inquiry

Product Description

ℹ

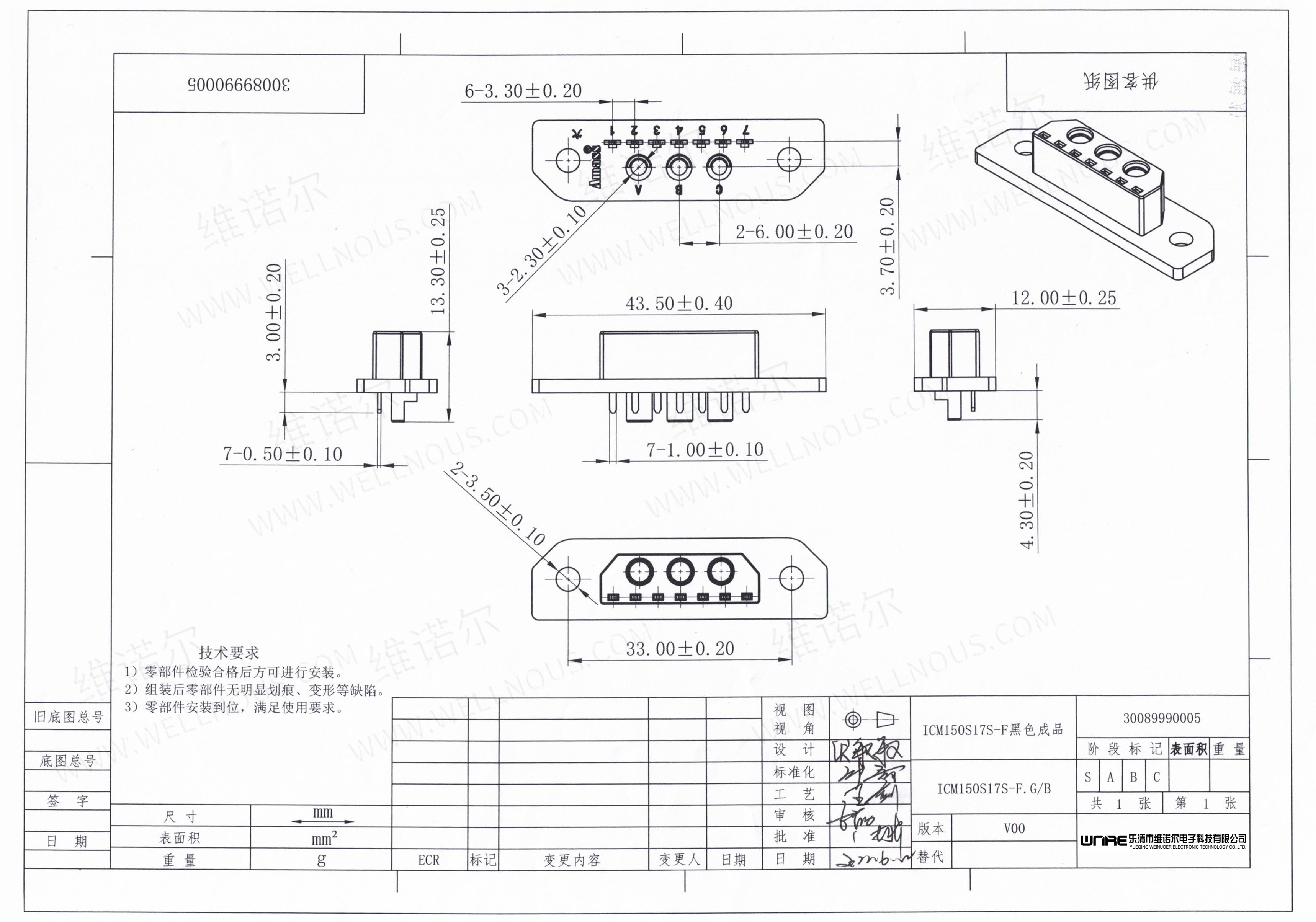

1. ICM150S17S-F is a welded assembly type 3+7PIN connector, which is a special product for the motor at present. It is compatible with ICM150S17PB-M or ICM150S17PW-M, and has a board layout design.

2. It can be applied to the controller and motor line plate connection scenario.

Electric vehicle | UAV | Traversal machine | Solar lamp

⚠️ Usage Precautions

When in use, do not exceed the rated current and voltage.

Do not use it when external forces are applied to the connector.

Do not use it in a place with high temperature and humidity.

When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

Balancing car | Electric scooter | Twister

Telecontrolled aircraft | Telecar | Remote control ship | Unicycle

Frequently Asked Questions (FAQ)

Q1: What is the pin configuration for the ICM150S17S-F? A1: The ICM150S17S-F features a 3+7PIN configuration, specifically designed for modern motor assembly requirements.

Q2: Which models are compatible with this connector? A2: This connector is fully compatible with ICM150S17PB-M and ICM150S17PW-M models, supporting flexible board layout designs.

Q3: In what scenarios can the ICM150S17S-F be used? A3: It is primarily used for connection scenarios between controllers and motor line plates in products like electric vehicles, UAVs, and solar lamps.

Q4: Are there any electrical limitations I should be aware of? A4: Yes, it is critical not to exceed the rated current and voltage during operation to ensure safety and device longevity.

Q5: What environmental factors affect the performance of this connector? A5: It is recommended to avoid using the connector in environments with high temperature and high humidity to maintain optimal performance.

Q6: What should I keep in mind when handling the product packaging? A6: When opening the package, handle with care to prevent any deformation, bending, or accidental ejection of the terminals.
