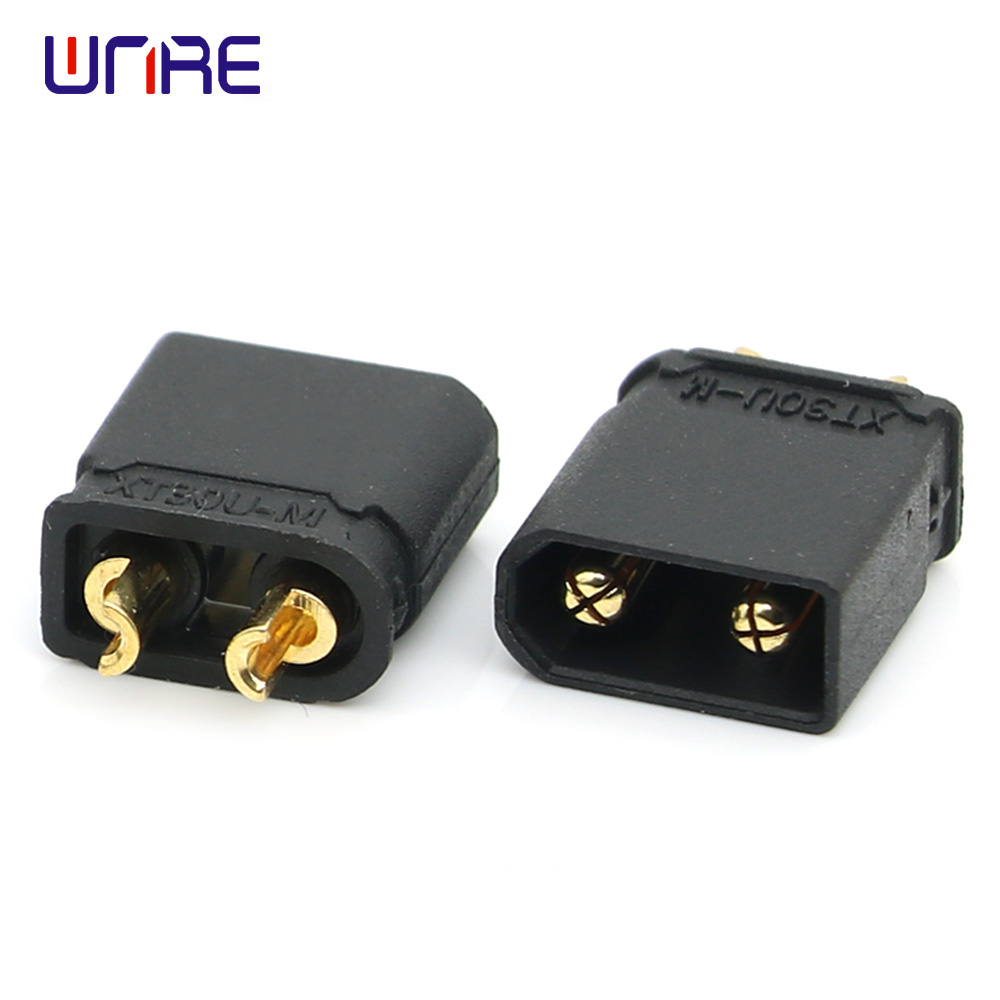

XT30U-M is a classic 180° outgoing welded injection molded 2PIN connector. As a current power lithium plug-in standard part, it features a compact wired plate design, approximately the size of a coin.
It is perfectly suited for wire-to-board and board-to-board connections between lithium batteries and controllers.
Electric vehicleUAVTraversal machineSolar lamp
When in use, do not exceed the rated current and voltage.
Do not use it when external forces are applied to the connector or in places with high temperature and humidity.
When opening the package, please pay attention to avoid deformation, bending, or ejecting of terminals.
Balancing carElectric scooterTwister
Telecontrolled aircraftTelecarRemote control shipUnicycle
Frequently Asked Questions
Q1: What is the main design feature of the XT30U-M connector?The XT30U-M is a 180° outgoing welded injection molded 2PIN connector designed for efficiency and compact space management, being roughly the size of a coin.
Q2: Which devices are compatible with this connector?It is widely used in electric vehicles, UAVs, traversal machines, solar lamps, balancing cars, electric scooters, and various remote-controlled vehicles.
Q3: Can it be used for board-level connections?Yes, it is specifically designed for both wire-to-board and board-to-board connections, typically between lithium batteries and controllers.
Q4: What environmental conditions should be avoided?It is recommended to avoid using the connector in environments with high temperature, high humidity, or where external physical forces are applied to the housing.
Q5: What should I check before applying power?Always ensure that the operating environment does not exceed the rated current and voltage specifications of the XT30U-M connector to ensure safety.
Q6: How should the package be handled upon arrival?When opening the package, handle with care to avoid any deformation or bending of the terminals, which could affect the connection quality.
