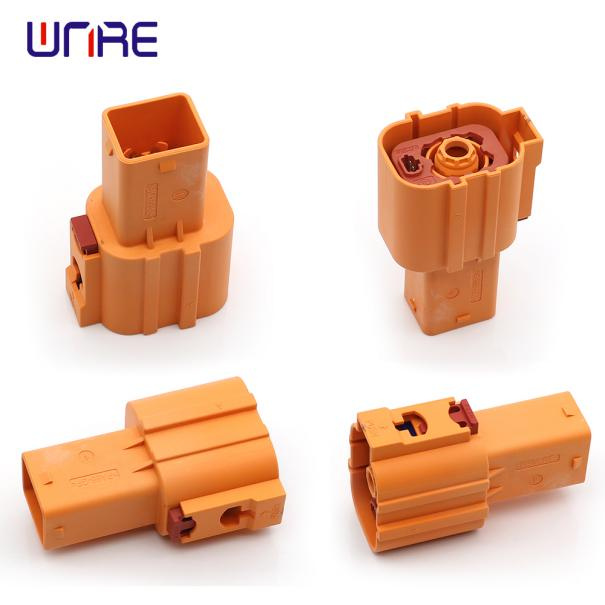

China cheap price high voltage 1500V energy storage power supply male and female high voltage waterproof connector

Product Model:8mm single core straight plug socket Mating design:Serviceable locking leg Locking assurance by CPA Operation with handle. Termianl system:1 x Ø8mm Radsok, silver plated wire size: 25/35/50mm², shielding HVIL contact system. Terminal technology:Crimping for power termination.Screw fasten for power terminal Crimping for HVIL termination General Features:IP67, IP6K9K (mated) IPXXB (separated) High pressure interlock 360 ° shielding

Product Description

🔥 High temperature resistance, flame retardant, beautiful and durable.
🛡️ High quality material selection, reliable, safe and durable products.
🔌 PA66 texture connector, fall and impact resistant.

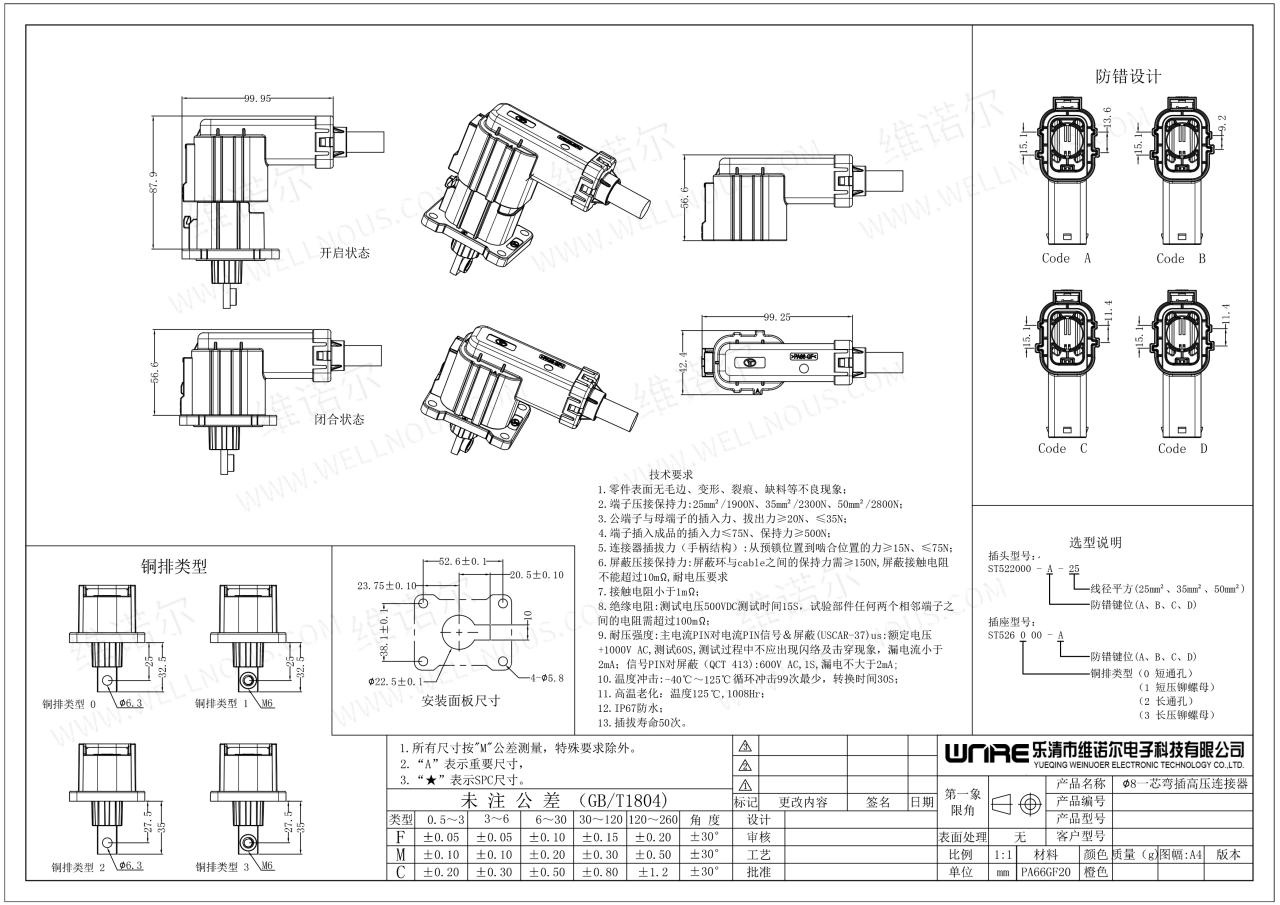

Connector details 1 Connector details 2 Connector details 3

A solid business reputation record, excellent after-sales service, and modern production facilities ensure high quality and reasonable pricing, bringing stable long-term satisfaction. The primary aim is providing quality products, excellent service, competitive price, and timely delivery. With great enthusiasm and loyalty, the focus remains on providing the best solutions through precise process equipment, advanced injection molding facilities, equipment assembly lines, laboratories, and software advancements.

Through continuous improvement of solutions and services, there is a strong commitment to working with business partners to elevate cooperation and share success globally. These unique features and advanced manufacturing capabilities support mutual benefit and professional development in the industry.

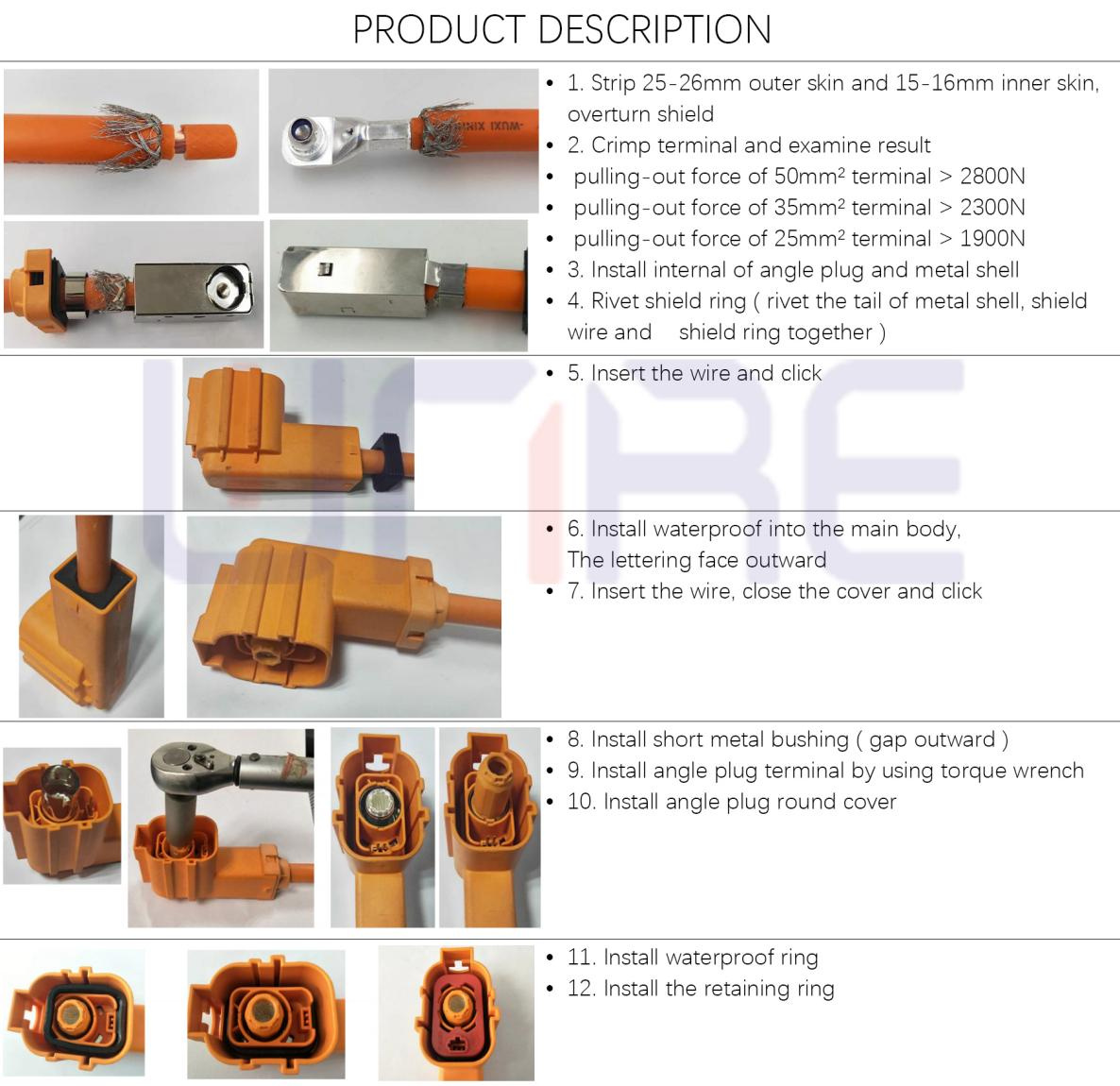

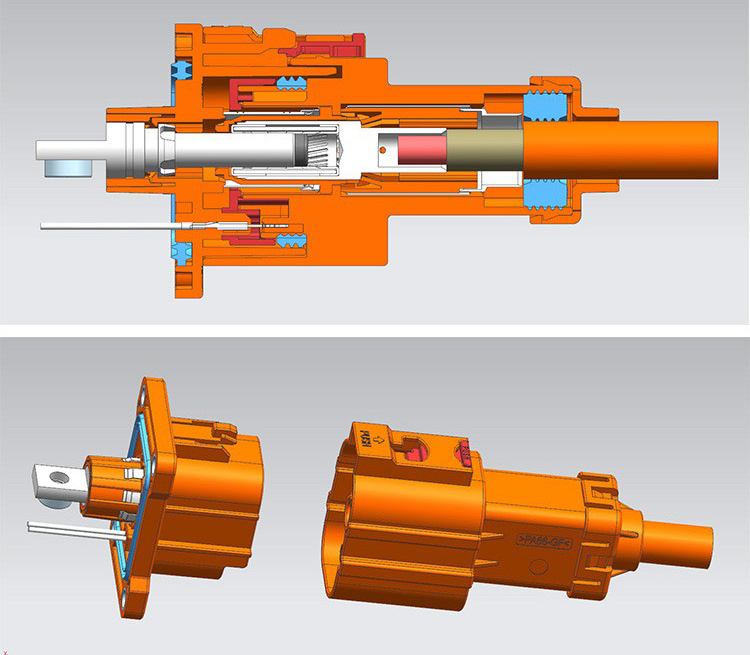

Manufacturing process 1 Manufacturing process 2 Manufacturing process 3
Plastic Housing PA66-GF V0, Orange
Terminal Copper alloy, silver plated
RFI/EMI Protection Metal shield
Operation Force ≤100N
Temp. Range -40℃ ~ 140℃
Rated Voltage 1500V DC
Mating Cycles ≥50
Current Capacity 125A=25mm², 150A=35mm², 200A=50mm²
Frequently Asked Questions
Q1: What materials are used for the connector housing? The housing is made of high-quality PA66-GF V0 material, which is flame retardant and resistant to high temperatures.
Q2: What is the maximum operating voltage for these connectors? These connectors are rated for a high voltage of up to 1500V DC.
Q3: Does the product support interference protection? Yes, the products feature a metal shield specifically designed for RFI/EMI protection.
Q4: What is the temperature endurance of the connectors? The connectors are designed to perform reliably in a temperature range from -40℃ to 140℃.
Q5: How many times can the connector be safely mated? The design supports a minimum of 50 mating cycles while maintaining safe performance.
Q6: What current capacities are available? Current capacity options include 125A (25mm²), 150A (35mm²), and 200A (50mm²).
