Product Model:8mm two-core straight plug socket Plug: 25mm²( Ø11.6~12.2)35mm²( Ø13.8~14.4)50mm²( Ø15.2~15.8) Mating design:Serviceable locking leg Locking assurance by CPA Operation with handle

Product Description

Terminal System Specifications
  • Terminal system: 2 x Ø8mm Radsok, silver plated
  • Wire size: 25 / 35 / 50mm²
  • Contact system: Shielding HVIL contact system
  • Terminal technology: Crimping for power termination, Screw fasten for power terminal, Crimping for HVIL termination
  • General Features: IP67, IP6K9K (mated), IPXXB (separated)
  • Safety: High pressure interlock, 360° shielding
  • Housing: PA66-GF V0, Orange
  • Materials: Copper alloy, silver plated
  • Protection: RFI/EMI metal shield
Product Visuals

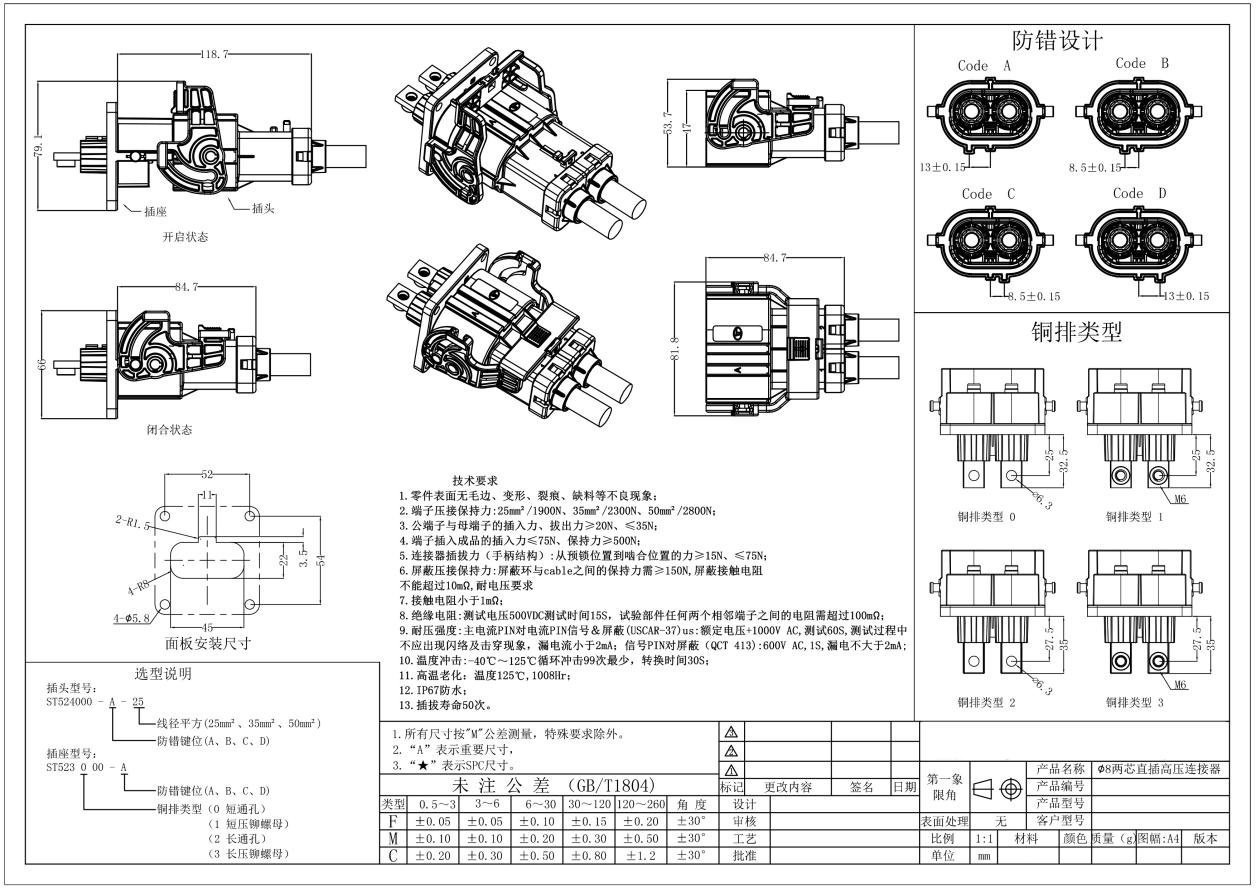

Terminal System 1
Terminal System 2
Terminal System 3
Performance Characteristics
Operation force: ≤100N
Temp. Range: -40 ℃ ~ 140 ℃
Rated Voltage: 1500V DC
Mating Cycles: ≥50
Current Capacity:   125A (25mm²) | 150A (35mm²) | 200A (50mm²)

Built on the concepts of integrity, innovation, rigor, and efficiency, we maintain a focus on quality and preferential pricing. With over 8 years of business, we have accumulated rich experience and advanced technology in product generation. Our solutions provide fast quotations and informed consultancy to help select the right product for all requirements. Backed by short manufacturing times and responsible quality management, these products are widely utilized in the United States, Japan, Europe, and other global markets, accounting for 80% of our exports.

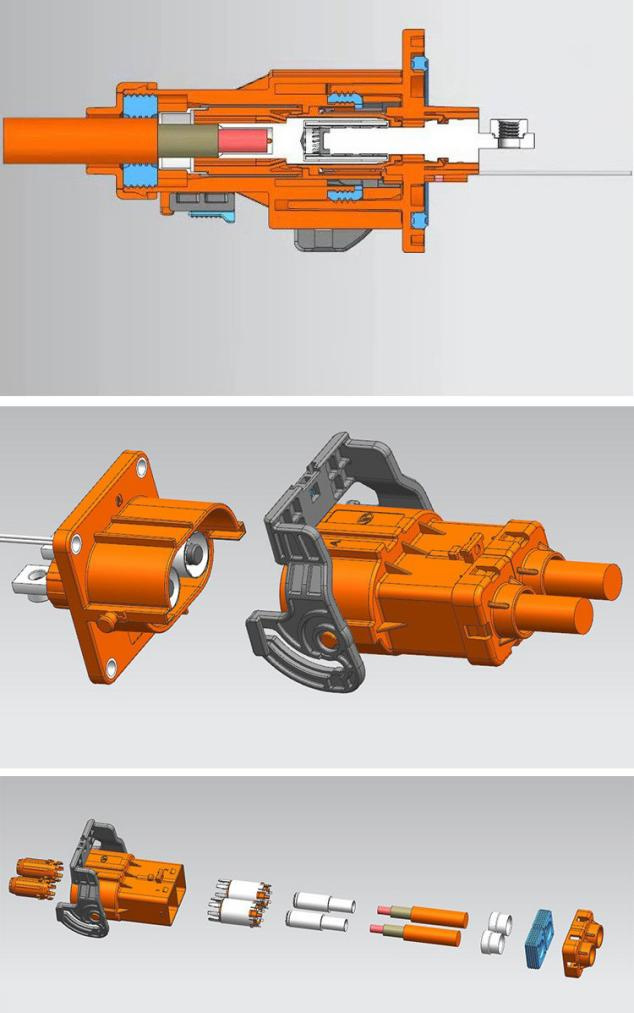

Production Process 1

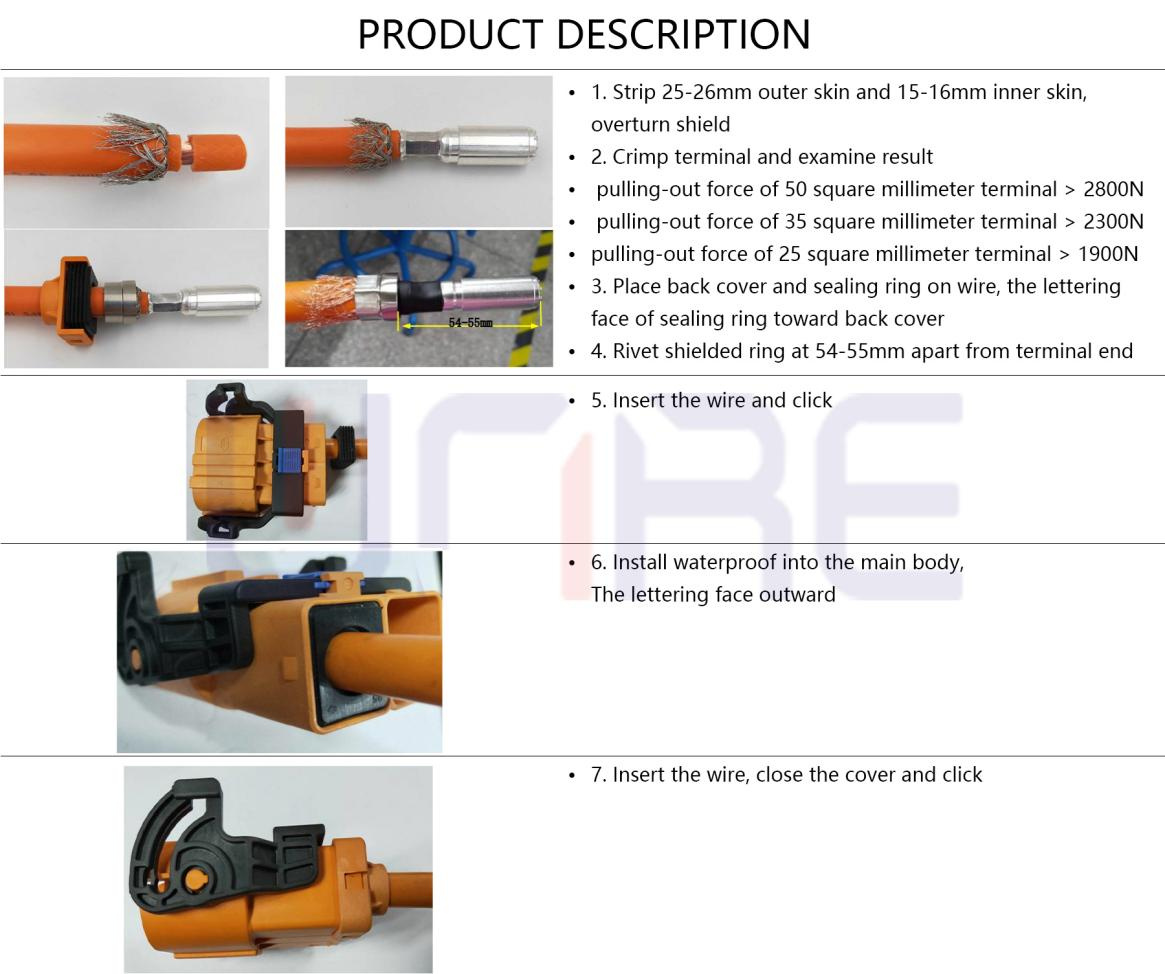

Production Process 2
