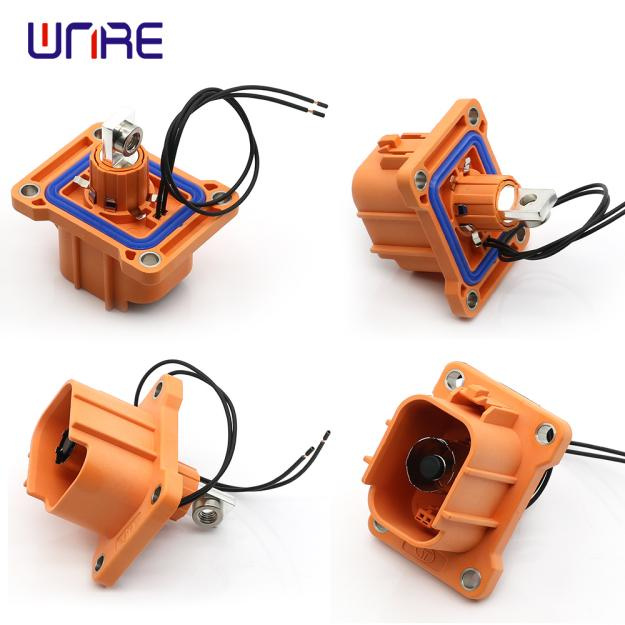

OEM Original straight hair energy storage electronic connector energy storage plastic connector high pressure waterproof 8mm connector Manufacturer, Company

Product Model:8mm single core bent plug socket Mating design:Serviceable locking leg Locking assurance by CPAOperation with handle. Termianl system:1 x Ø8mm Radsok, silver plated wire size: 25/35/50mm², shielding HVIL contact system. Terminal technology:Crimping for power termination.Screw fasten for power terminal Crimping for HVIL termination General Features:IP67, IP6K9K (mated) IPXXB (separated) High pressure interlock 360 ° shielding

Product Description

Plastic Housing PA66-GF V0, Orange
Terminal Copper alloy, silver plated
🛡
RFI/EMI Protection Metal shield
Performance Characteristics Operation force: ≤100N
🌡
Temp. Range -40 ℃ ~ 140 ℃
Rated Voltage 1500V DC
🔄
Mating Cycles ≥50
🔌
Current Capacity 125A (25mm²), 150A (35mm²), 200A (50mm²)
Connector Image 1 Connector Image 2 Connector Image 3

We pay attention to management, the introduction of talents, team building, and strive to improve the quality and responsibility awareness of team members. We have successfully obtained IS9001 certification and European CE certification. The factory mainly produces battery connectors and energy storage connectors; we care about every step of our service, from factory selection, product development and design, price negotiation, inspection, transportation to aftermarket.

We have implemented a strict and complete quality control system to ensure that each product can meet the quality requirements of customers. In addition, all our cargo is strictly inspected before being loaded. Our products are widely recognized and trusted. After years of development, we have formed strong new product development capabilities and strict quality control system to ensure excellent quality and service. With the support of many long-term cooperative customers, our products are welcomed all over the world. We are your reliable partner for the environment.

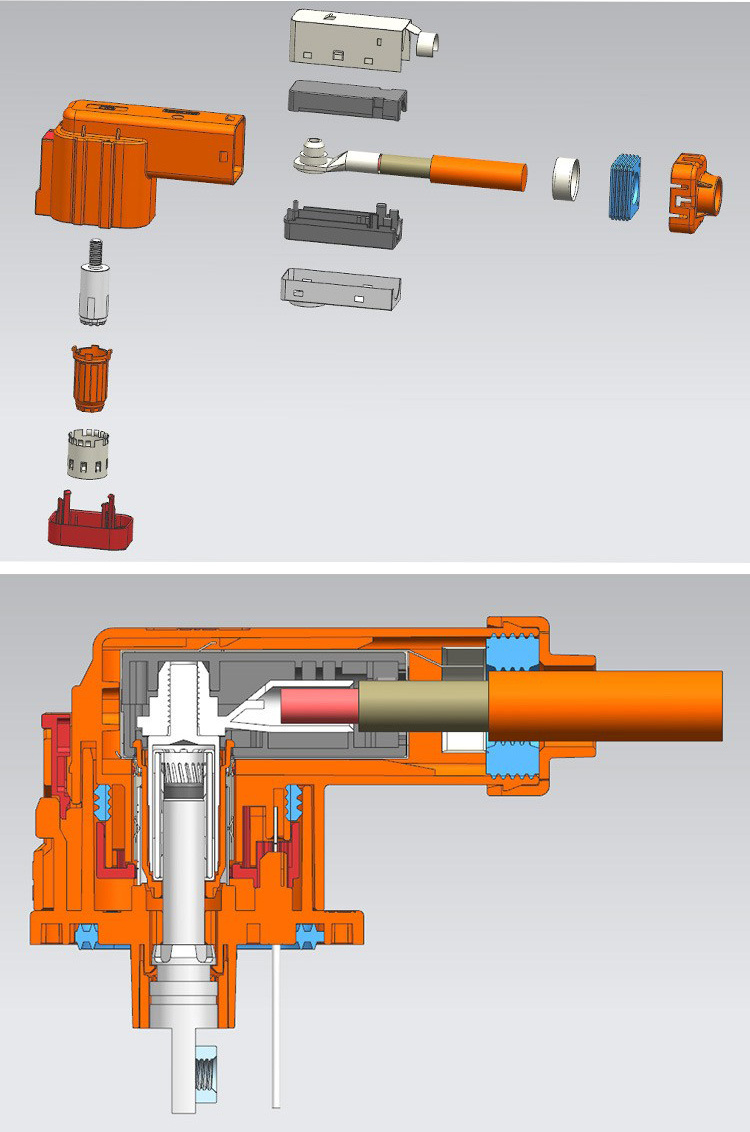

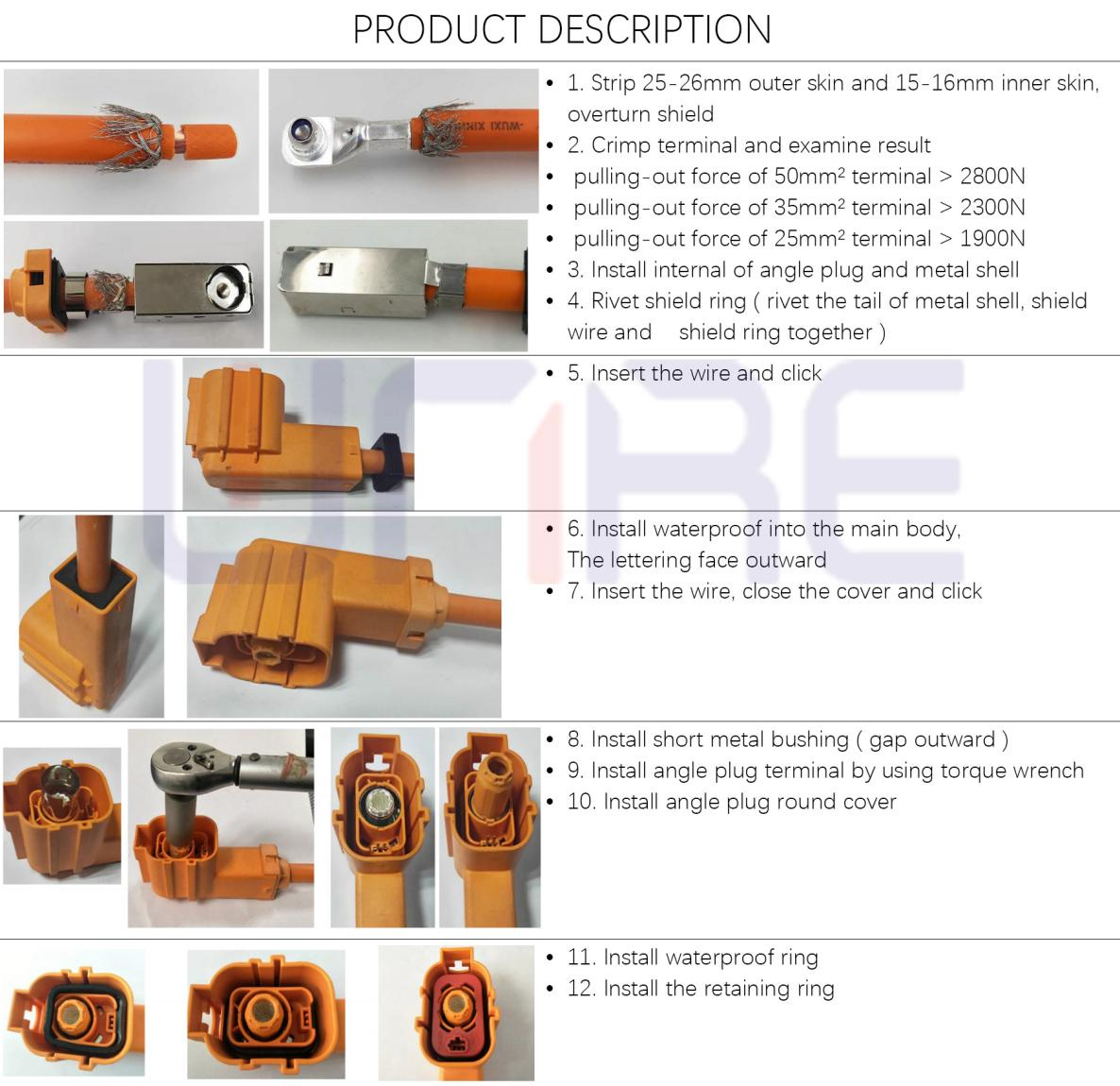

Connector Image 4 Connector Image 5 Connector Image 6
  • High temperature resistance, flame retardant, beautiful and durable.
  • High quality material selection, reliable, safe and durable products.
  • PA66-GF texture connector, fall and impact resistant.
Frequently Asked Questions
1. What is the rated voltage of these connectors?
The connectors have a high-performance rated voltage of 1500V DC.
2. What materials are used for the connector housing?
The housing is made from PA66-GF V0 material, which is flame retardant and impact resistant.
3. Does the connector include EMI protection?
Yes, it features a metal shield for effective RFI/EMI protection.
4. What is the operating temperature range?
The product is designed to operate reliably in temperatures ranging from -40 ℃ to 140 ℃.
5. What certifications do these products have?
Our products have successfully obtained IS9001 and European CE certifications, ensuring international quality standards.
6. What are the current capacity options for different wire sizes?
The capacity is 125A for 25mm², 150A for 35mm², and 200A for 50mm² wires.
