China High-performance high-voltage 1500V female and male energy storage connectors Supplier, Companies

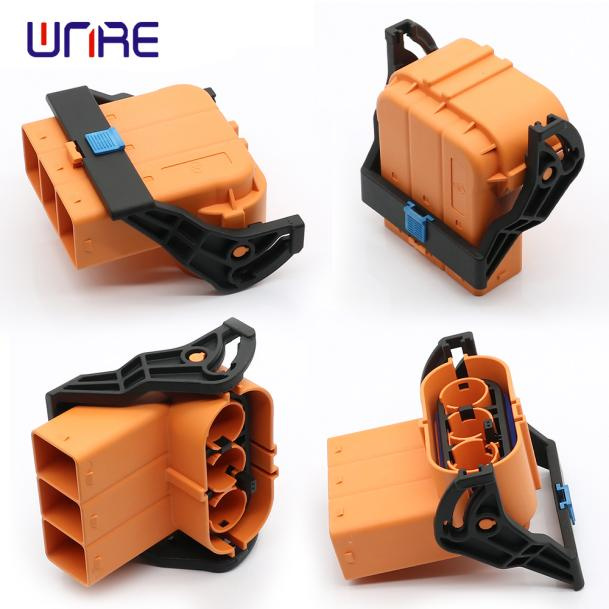

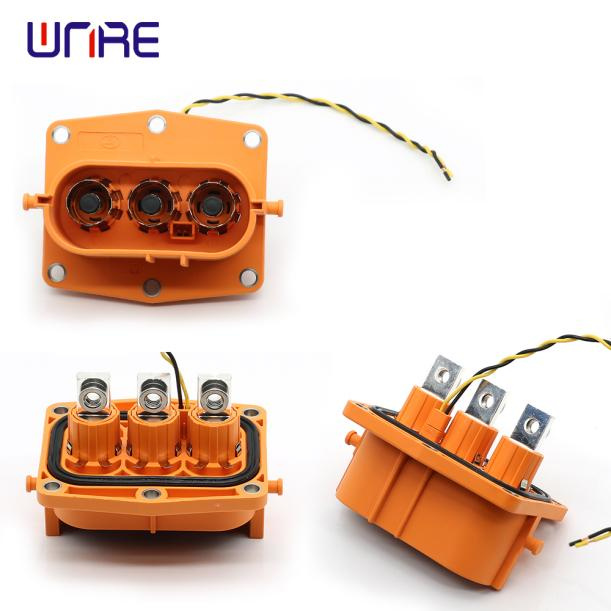

Product Model:8mm two-core straight plug socket Plug: 25mm²( Ø11.6~12.2)35mm²( Ø13.8~14.4)50mm²( Ø15.2~15.8) Mating design:Serviceable locking leg Locking assurance by CPA Operation with handle

Product Description

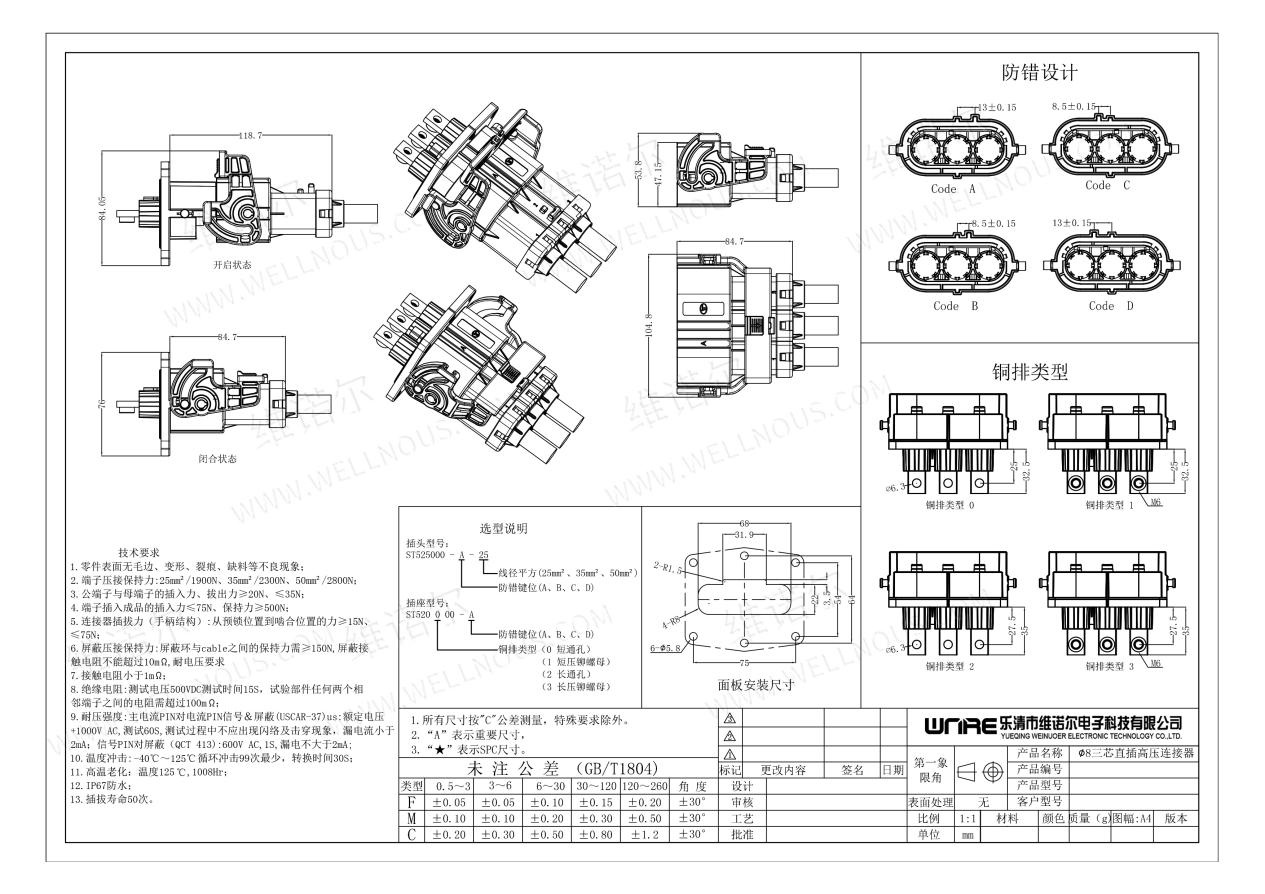

Technical Specifications

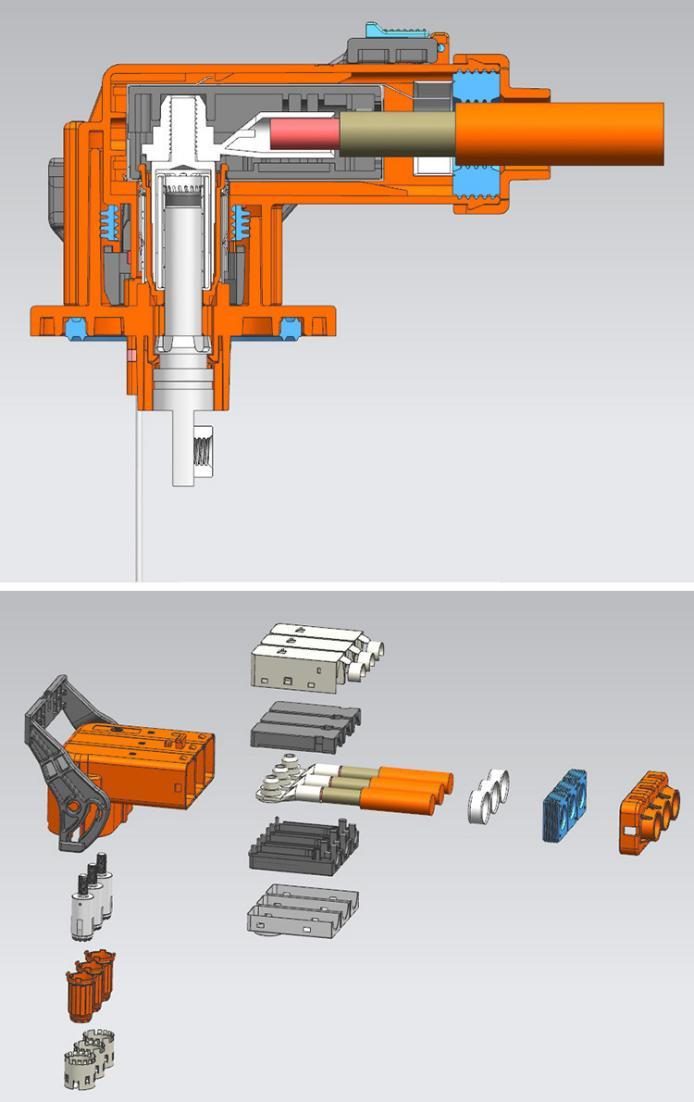

Terminal System: 2 x Ø8mm Radsok, silver plated
Wire Size: 25 / 35 / 50mm², shielding HVIL contact system

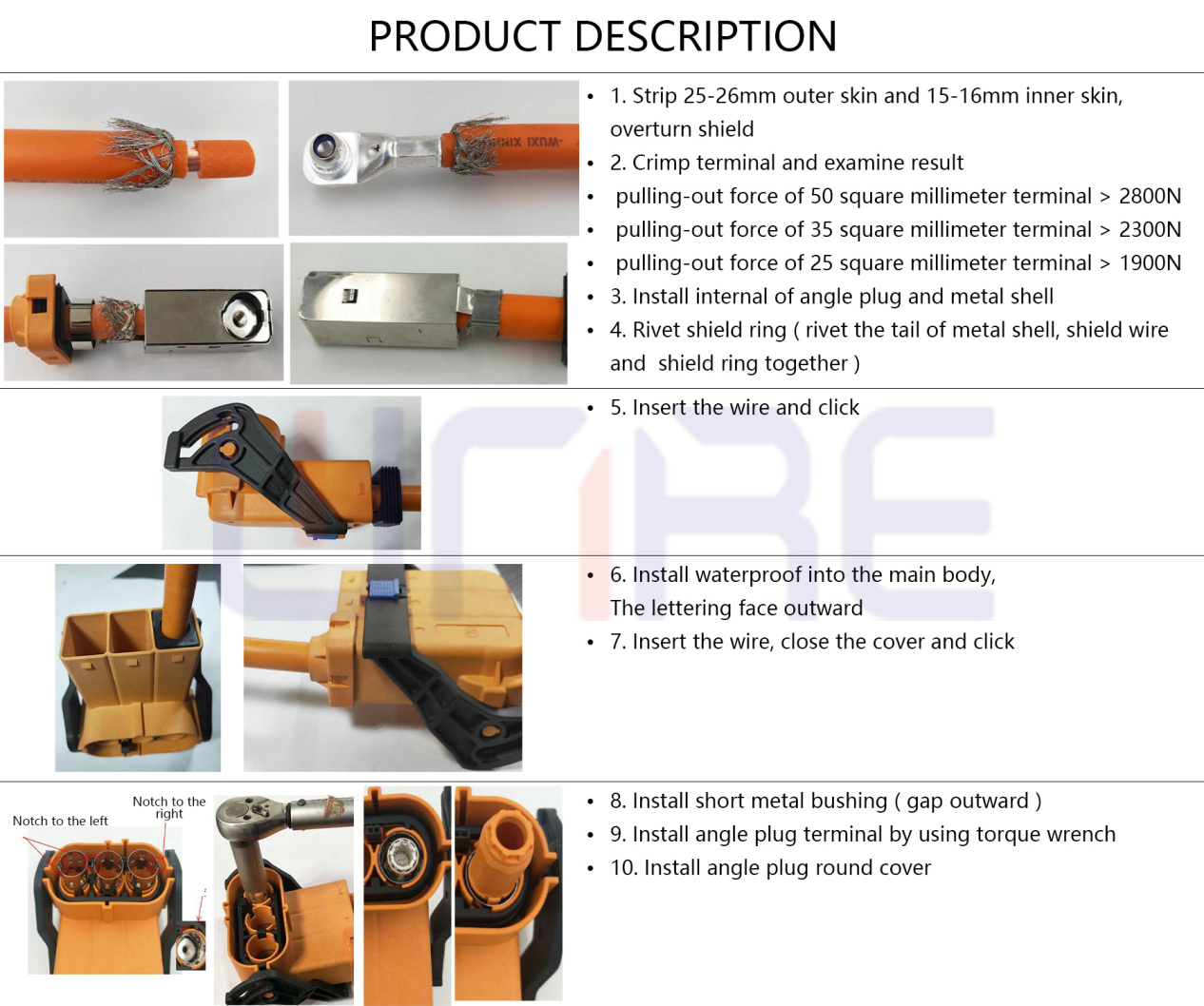

Terminal Technology: Crimping for power termination, Screw fasten for power terminal, Crimping for HVIL termination
General Features: IP67, IP6K9K (mated), IPXXB (separated), High pressure interlock, 360° shielding
Material: PA66-GF V0 (Orange), Copper alloy (Silver plated)
Protection: RFI/EMI metal shield

Performance Characteristics

Operation Force: ≤100N
Temp. Range: -40℃ ~ 140℃
Rated Voltage: 1500V DC
Mating Cycles: ≥50
Current Capacity: 125A (25mm²), 150A (35mm²), 200A (50mm²)

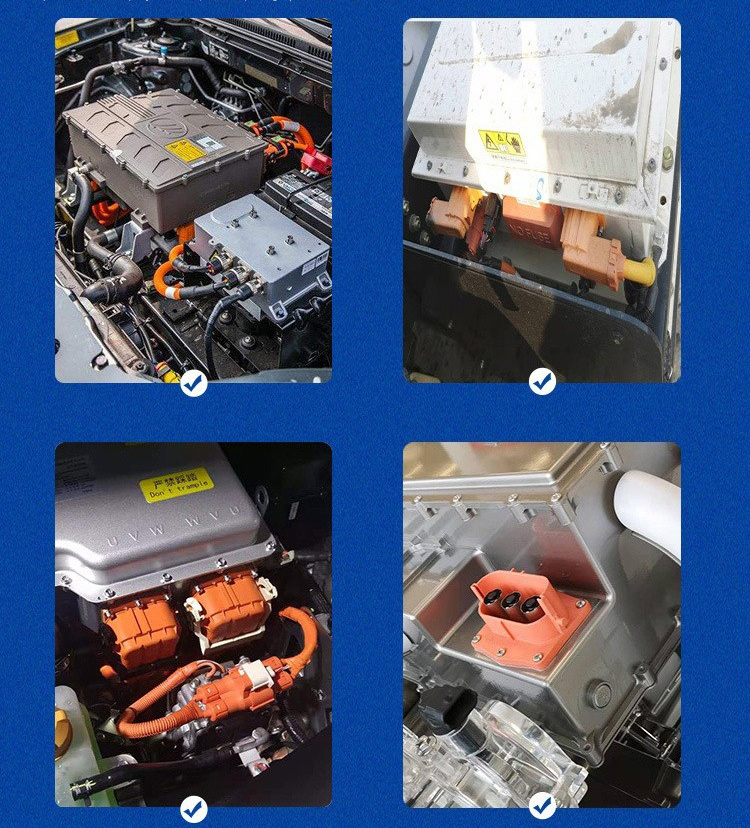

Quality Commitment & Manufacturing

Adhering to the tenet of "quality first, buyer first", our progress depends on advanced products, outstanding talents and constantly strengthening technical force. Combined with our excellent pre-sales and after-sales service, we ensure a strong competitiveness in the global market through a comprehensive scientific management process and excellent belief.
Our factory is equipped with 1000 square meters of complete facilities, allowing us to meet the production and sales of most auto parts solutions. Our advantages include full category availability, high quality, and competitive pricing. We strive to provide the most effective quality goods and aggressive cost-efficiency to every customer.

Key Advantages

  • High temperature resistance, flame retardant, beautiful and durable.
  • High quality material selection, reliable, safe and durable products.
  • PA66 texture connector, fall and impact resistant. Practical material.
?

Frequently Asked Questions

What is the maximum rated voltage for this system?
The system is rated for a maximum of 1500V DC.
What environment protection ratings does it meet?
It meets IP67 and IP6K9K standards when mated, and IPXXB when separated.
What are the available wire sizes?
The system supports 25mm², 35mm², and 50mm² wire sizes.
What is the operating temperature range?
It can operate effectively within a temperature range of -40℃ to 140℃.
Does the connector provide EMI protection?
Yes, it features a 360° metal shield for RFI/EMI protection.
What material is the plastic housing made of?
The housing is made of high-quality PA66-GF V0 flame-retardant material.
