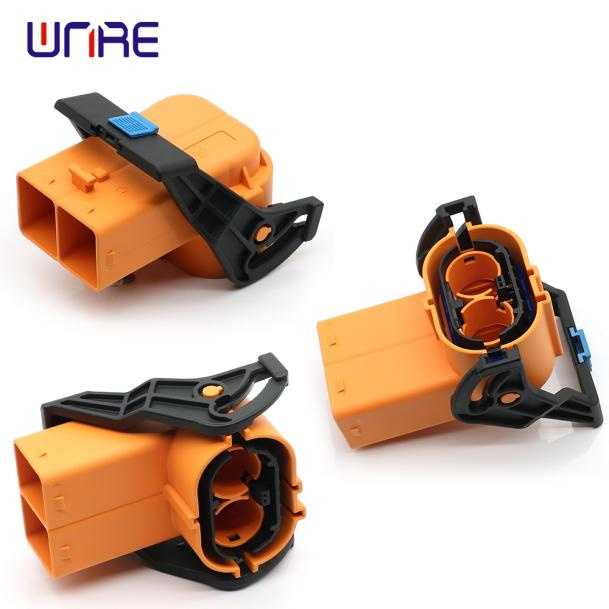

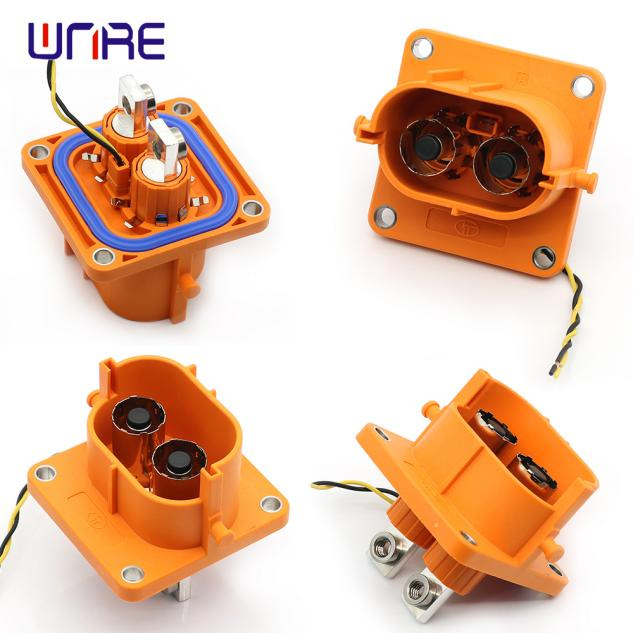

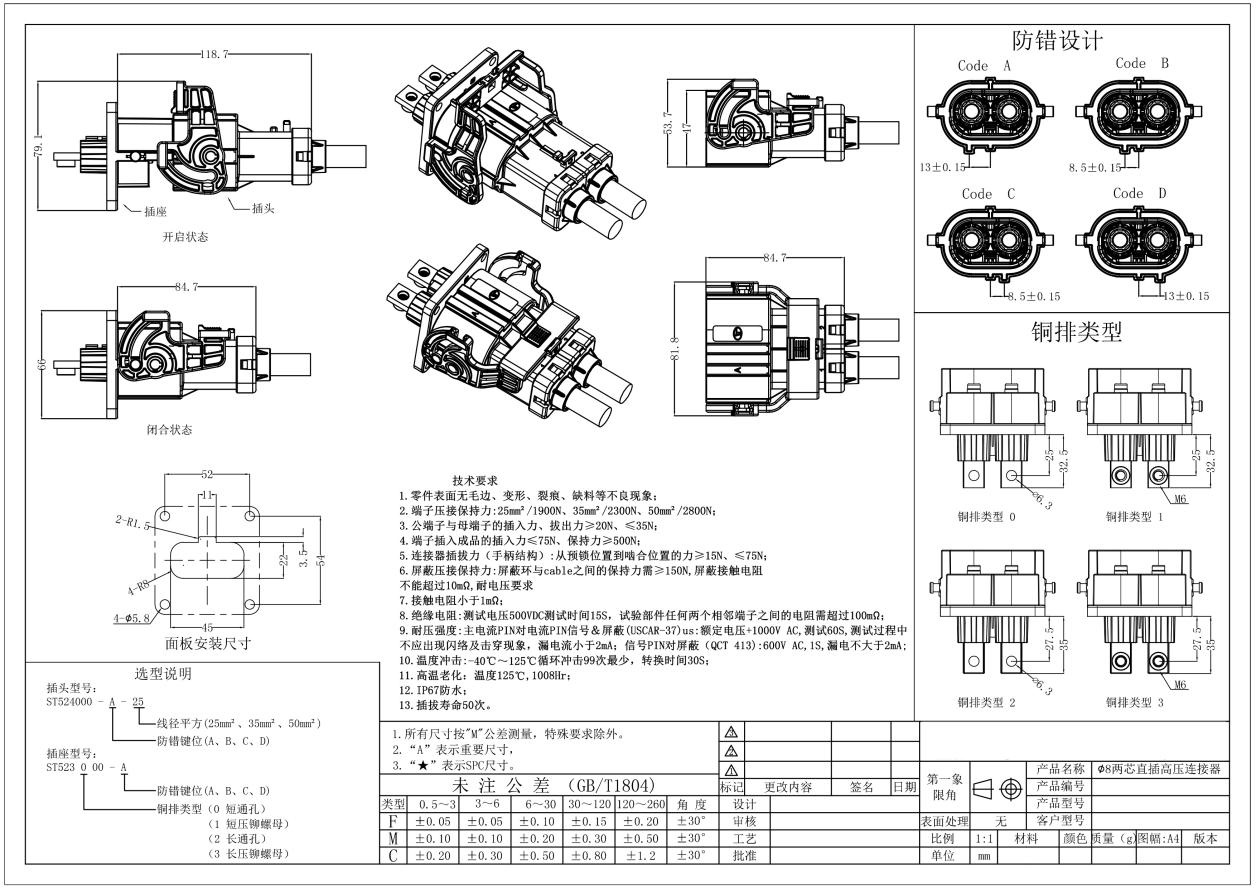

⚙️ Technical Specifications
Terminal Technology

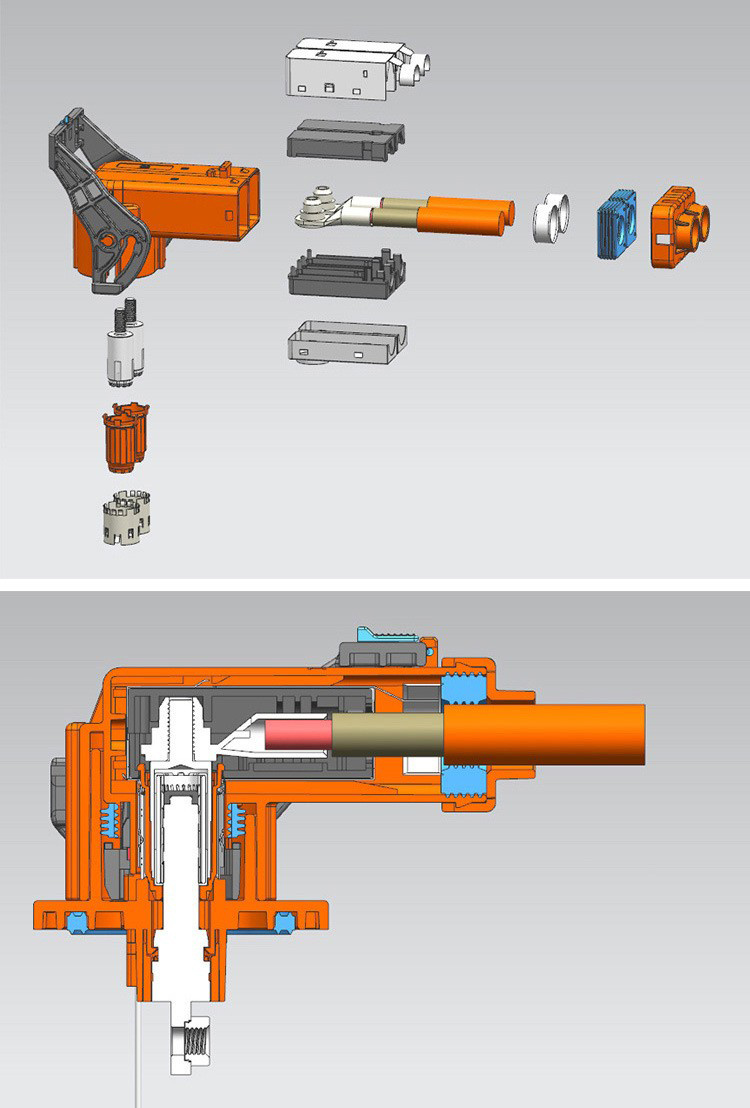

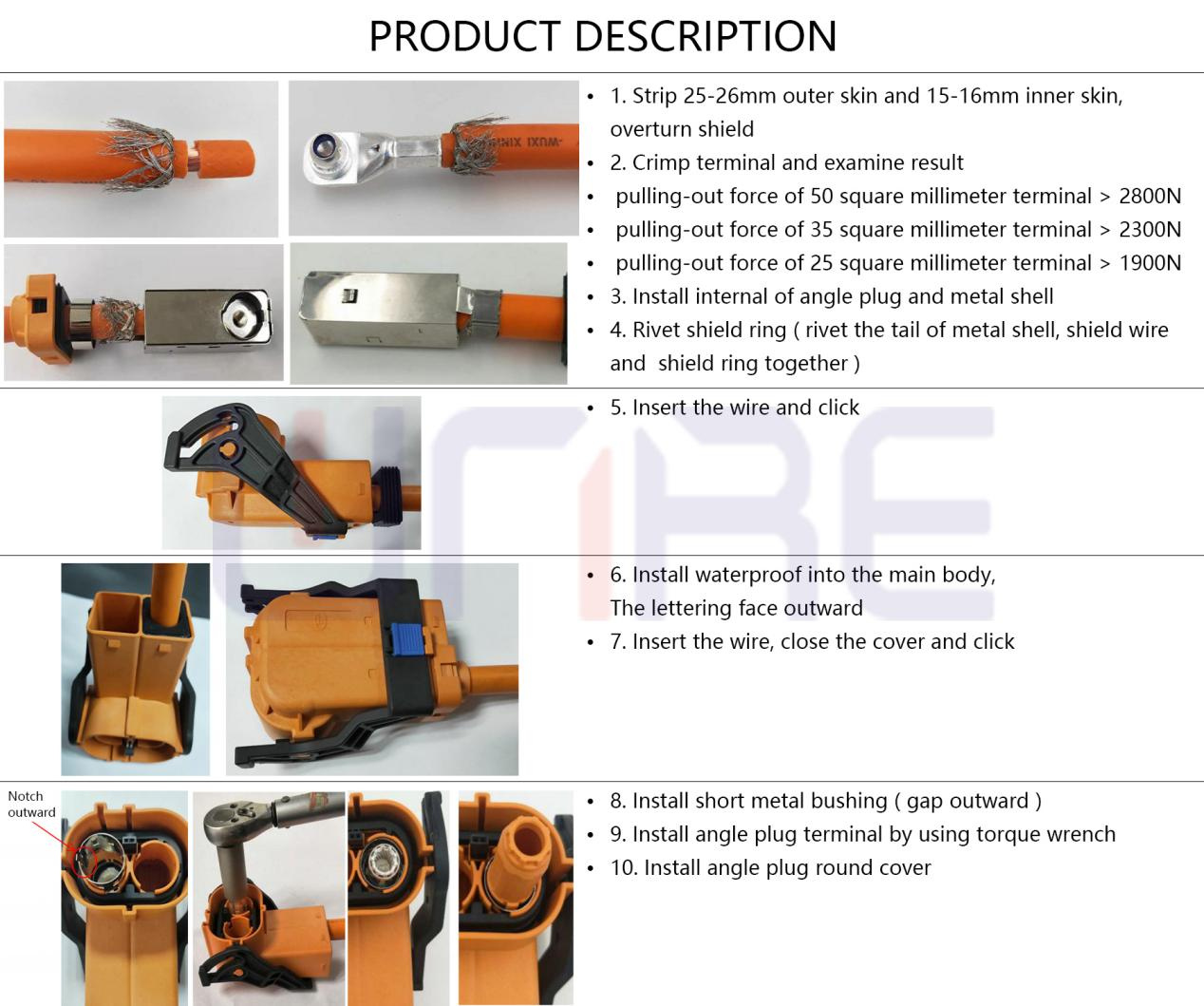

• Crimping for power termination
• Screw fasten for power terminal
• Crimping for HVIL termination
Protection & Shielding
• IP67, IP6K9K (mated)
• IPXXB (separated)
• 360° shielding (Metal shield RFI/EMI)
Materials
• Housing: PA66-GF V0, Orange
• Terminal: Copper alloy, silver plated
Performance
• Operation force: ≤100N
• Temp. Range: -40℃ ~ 140℃
• Rated Voltage: 1500V DC
• Mating Cycles: ≥50
Current Capacity
• 125A (25mm²)
• 150A (35mm²)
• 200A (50mm²)
🌐 Quality Assurance & Global Supply
We ensure top-quality ODM manufacturing for high voltage and high current connectors. By selecting the best suppliers and implementing a comprehensive quality control process throughout procurement, we guarantee superior product reliability. Our advanced production technology and commitment to innovation allow us to meet diverse needs at competitive prices, regardless of order size. Due to stable supply and sincere service, these products are widely exported to international markets, including the Middle East, Asia, Europe, and other regions.
❓ Frequently Asked Questions
1. What is the maximum rated voltage for this connector?
The connector is rated for a maximum voltage of 1500V DC, making it suitable for high-voltage EV and industrial applications.
2. What are the IP protection ratings?
It features IP67 and IP6K9K ratings when mated, providing excellent protection against dust and high-pressure water jets. It also maintains IPXXB protection when separated.
3. What is the operating temperature range?
The connector is designed to operate reliably in extreme environments ranging from -40℃ to 140℃.
4. How does the current capacity vary with wire size?
The current capacity is 125A for 25mm² wires, 150A for 35mm² wires, and up to 200A for 50mm² wires.
5. Does the connector provide EMI protection?
Yes, it includes a 360° metal shield for robust RFI/EMI protection, ensuring signal integrity in electromagnetic environments.
6. What materials are used for the housing?
The housing is made of high-grade PA66-GF V0 plastic, which is flame retardant (Orange color) and highly resistant to impacts.
