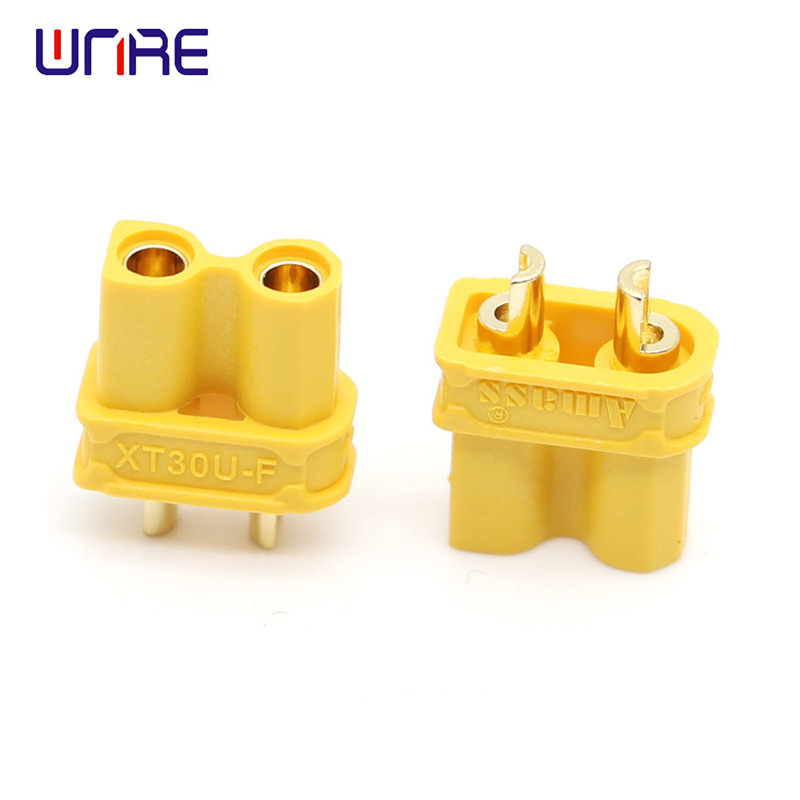

XT30U-F is a classic 180° outgoing welded injection molded 2PIN connector. As a current power lithium power plug-in standard part, it features a wired plate design and a compact size roughly that of a dime.
It is highly suitable for wire-to-board or board-to-board connections between lithium batteries and controllers.
⚠️
Rated Limits: When in use, do not exceed the rated current and voltage.
🚫
External Force: Do not use it when external forces are applied to the connector.
🌡️
Environment: Do not use it in a place with high temperature and humidity.
📦
Handling: Be careful to avoid the deformation, bending, or ejecting of terminals when opening the package.
Frequently Asked Questions
1. What are the primary applications for the XT30U-F connector?
The XT30U-F is widely used in electric vehicles, UAVs, traversal machines, solar lamps, and various remote-controlled toys like aircraft and ships.
2. Does the XT30U-F support board-to-board connections?
Yes, its design is appropriate for both wire-to-board and board-to-board connections, specifically between lithium batteries and controllers.
3. What is the physical design style of this connector?
It is a 180° outgoing welded injection molded 2PIN connector, known for its compact size, comparable to a dime.
4. Can I use this connector in humid environments?
No, it is recommended to avoid using the connector in places with high temperature and humidity to ensure safety and longevity.
5. What precautions should be taken regarding electrical ratings?
Always ensure that the operating current and voltage do not exceed the rated specifications of the XT30U-F connector.
6. What should I look out for when unpacking the product?
Be extremely careful to avoid deforming, bending, or ejecting the terminals when opening the package.
