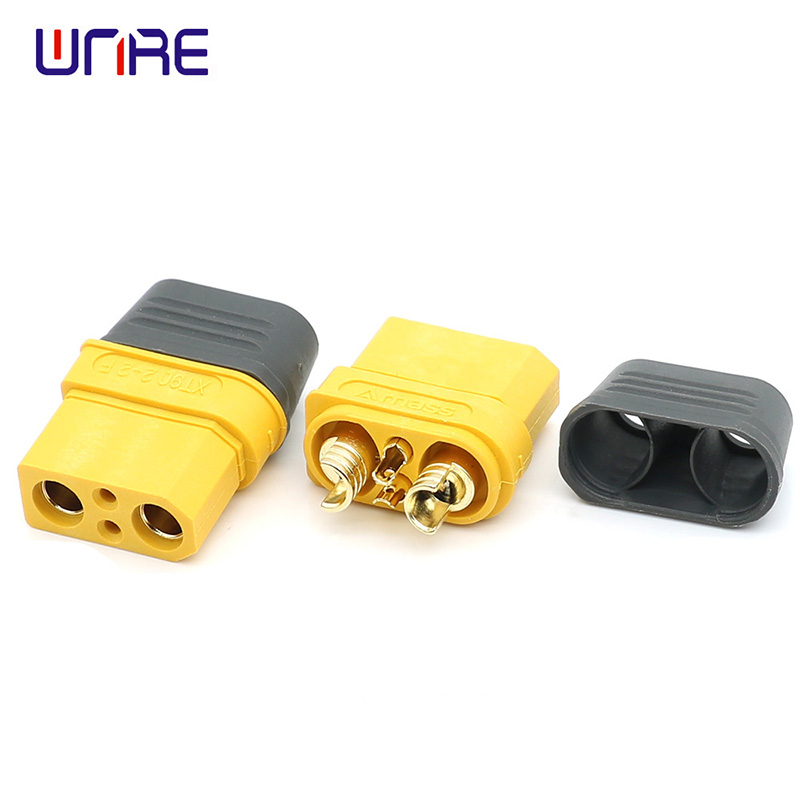

XT90(2+2)-F is a 180° out-line welded injection molding + assembly type 2+2PIN connector, which is the current power lithium power plug-in standard parts with wired layout design.
It may be used to connect the lithium battery and the controller.
Electric vehicleUAVTraversal machineSolar lamp
Usage Precautions & Safety Guidelines
When in use, do not exceed the rated current and voltage.
Do not use in an environment where external forces are applied.
Do not use this product in a place with high temperature and humidity.
Please be careful to prevent deformation, bending, or ejecting of terminals.
Balancing carElectric scooterTwister
Telecontrolled aircraftTelecarRemote control shipUnicycle
Frequently Asked Questions
Q1: What is the specific design of the XT90(2+2)-F connector?A: It is a 180° out-line welded injection molding and assembly type 2+2PIN connector, specifically designed for wired layouts in power lithium applications.
Q2: What is the primary function of this connector?A: It is primarily used to establish a reliable connection between power lithium batteries and their respective controllers.
Q3: Can this connector be used for RC vehicles and UAVs?A: Yes, it is suitable for telecontrolled aircraft, telecars, remote control ships, UAVs, and traversal machines.
Q4: What environmental conditions should I avoid?A: Avoid using the product in environments with high temperatures, high humidity, or where external forces may be applied to the connector.
Q5: Are there specific electrical limits I should be aware of?A: Yes, it is critical not to exceed the rated current and voltage during operation to ensure safety and performance.
Q6: How should I handle the terminals during installation?A: Care should be taken to prevent any deformation, bending, or accidental ejecting of the terminals to maintain a secure connection.
