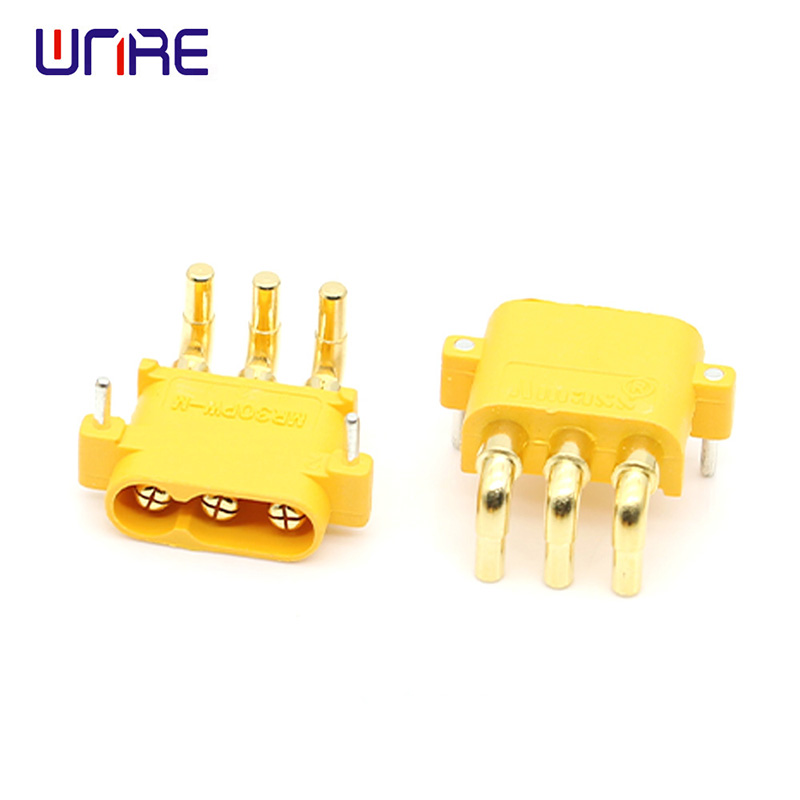

1. MR30PW-M is a horizontal injection molded 3PIN connector, designed to provide integrated solutions for horizontal space PCB boards. It can be perfectly combined and integrated with motors, serving as a standard part for current power lithium power plug-ins, with an additional line-to-line design.
2. It is applicable to the board-to-board or wire-to-board connection between lithium batteries and controllers.
Electric vehicle
UAV
Traversal machine
Solar lamp
- When in use, do not exceed the rated current and voltage.
- Do not use it when external forces are applied to the connector.
- Do not use it in a place with high temperature and humidity.
- When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.
Balancing car
Electric scooter
Twister
Telecontrolled aircraft
Telecar
Remote control ship
Unicycle
What is the main design feature of the MR30PW-M connector?
The MR30PW-M is a horizontal injection molded 3PIN connector designed for horizontal PCB space, offering integrated solutions for motor and lithium power applications.
What types of connections can this connector handle?
It is suitable for both board-to-board and wire-to-board connections, specifically between lithium batteries and controllers.
What applications are best suited for the MR30PW-M?
Common applications include electric vehicles, UAVs, traversal machines, solar lamps, balancing cars, electric scooters, and remote-controlled vehicles.
What are the critical environmental limitations for this connector?
It should not be used in environments with high temperature and humidity, and users must ensure not to exceed the rated current and voltage.
How should the connector be handled during installation?
It is important to avoid applying external forces to the connector during use and to be careful when opening the package to prevent terminal deformation or bending.
Is the MR30PW-M compatible with standard lithium power components?
Yes, it is a standard part for current power lithium power plug-ins and supports integrated solutions with motors.
