OEM MT30-F Plug Connector With Sheath Set Manufacturer, Factories

-Product Model: MT30-F. -Rated Current: 20A MAX（16AWG△＜85℃）Pin: 1A. -Voltage Resistance: 500V DC. -Insulation resistance: ≥2000MΩ. -Contact resistance:≤1.2MΩ. -Operational Temperature: -20℃~120℃. -Flame Retardant Rating: UL94 V-0. -Outer Hull: PA, BLACK, YELLOW. -Pinhole: Aldary，Elecreoplate: Gold Plating. -Mechanical life: 100times. -Salt Spray: 48h. -Protection level: IP40.

Send Inquiry

Product Description

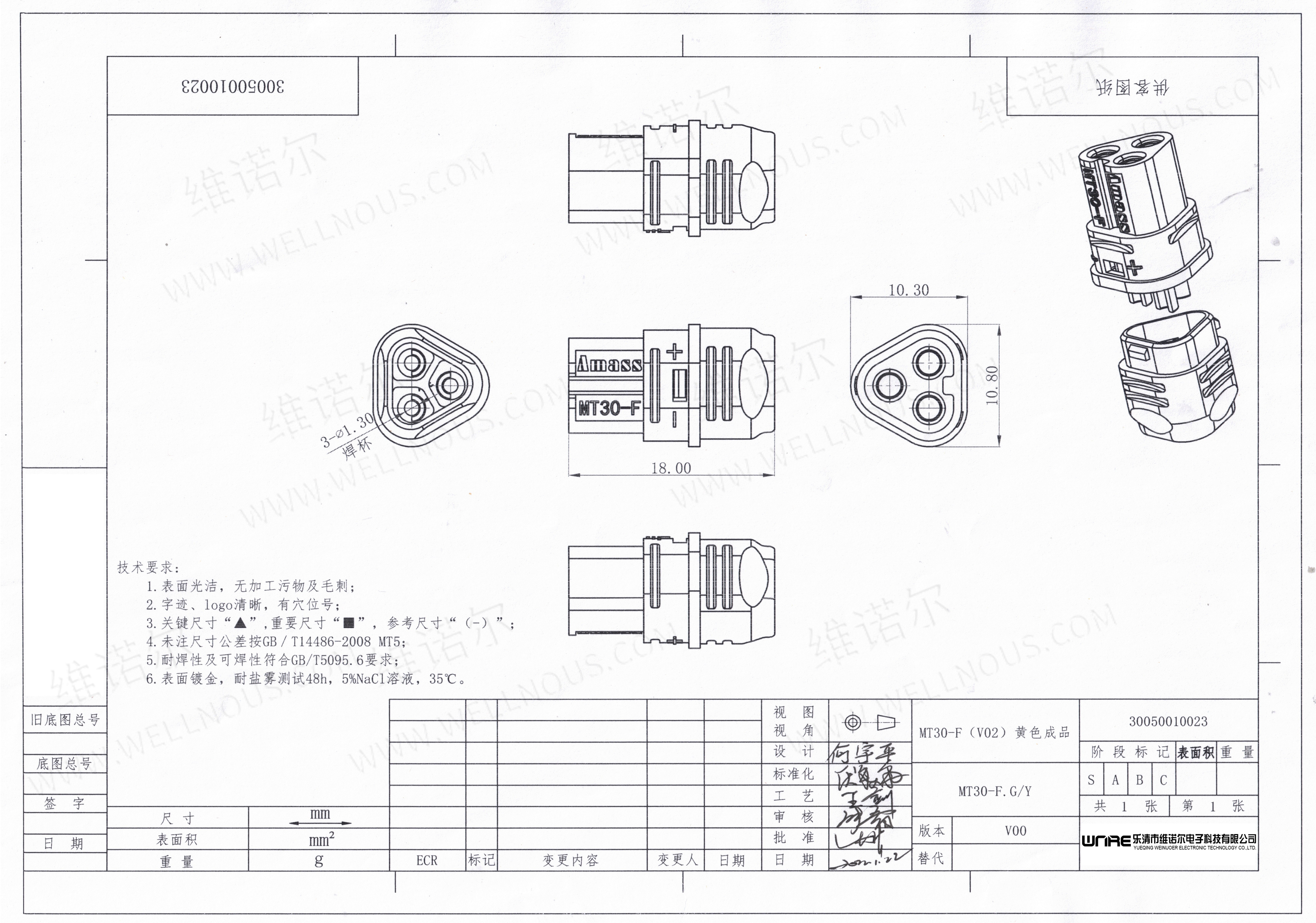

Product Overview & Technical Specifications

The MT30-F is a high-performance 180° out-of-the-line welding injection molding 3PIN joint. Featuring a matching back cover and a positive triangular arrangement, it serves as a standard power lithium plug-in component. It is specifically optimized for the longitudinal space of motor emergency controllers, providing a simple and highly efficient plug-and-play solution. It is ideally used to connect lithium batteries directly to controllers.

Application Showcase

Electric vehicle

UAV & Traversal machine

Solar lamp & Balancing car

Electric scooter

Twister & Remote control Ship

Telecontrolled aircraft & Telecar

Unicycle & Specialized Robotics

Advanced Remote Control Systems

Important Usage Guidelines

Ensure operation does not exceed the rated current and voltage limits.
Avoid usage when external mechanical forces are applied to the connector.
Do not operate in environments with high temperature and extreme humidity.
Handle with care during unpacking to prevent terminal deformation, bending, or ejection.

Frequently Asked Questions

What are the primary features of the MT30-F connector?

The MT30-F is a 3PIN joint featuring a 180° welding injection molding design and a positive triangular arrangement, making it a standard part for power lithium applications.

In which applications is this connector most commonly used?

It is widely used in electric vehicles, UAVs, traversal machines, solar lamps, balancing cars, electric scooters, and various remote-controlled vehicles like aircraft and ships.

Is the MT30-F suitable for tight spaces?

Yes, it is specifically designed to suit the longitudinal space of motor emergency controllers, offering a compact and convenient plug-in solution.

What safety precautions should be taken regarding electrical limits?

It is crucial not to exceed the rated current and voltage during use to ensure the safety and longevity of the connection.

How should the product be handled during unpacking?

When opening the package, be careful to prevent any deformation, bending, or accidental ejecting of the terminals.

Can it withstand harsh environmental conditions?

The connector should not be used in places with high temperature and humidity, and external forces should not be applied to the connector during operation.
