OEM Three-core MR60-M Plug With Sheath Brass Gold Plated Manufacturer, Company
1 / 1
OEM Three-core MR60-M Plug With Sheath Brass Gold Plated Manufacturer, Company

OEM Three-core MR60-M Plug With Sheath Brass Gold Plated Manufacturer, Company

Product Model: MR60-M Rated Current: 35A MAX（12AWG△＜85℃） Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.0MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, YELLOW Pinhole: Aldary，Elecreoplate: Gold Plating
Send Inquiry

Product Description

1
MR60-M is a classic 180° outbound welding injection molded 3PIN connector, which is the current power lithium power plug-in standard parts. It features a wire-to-wire design with a rear cover and rectangular arrangement.
2
Apply to the wire-to-wire connection scenario between lithium batteries and controllers.

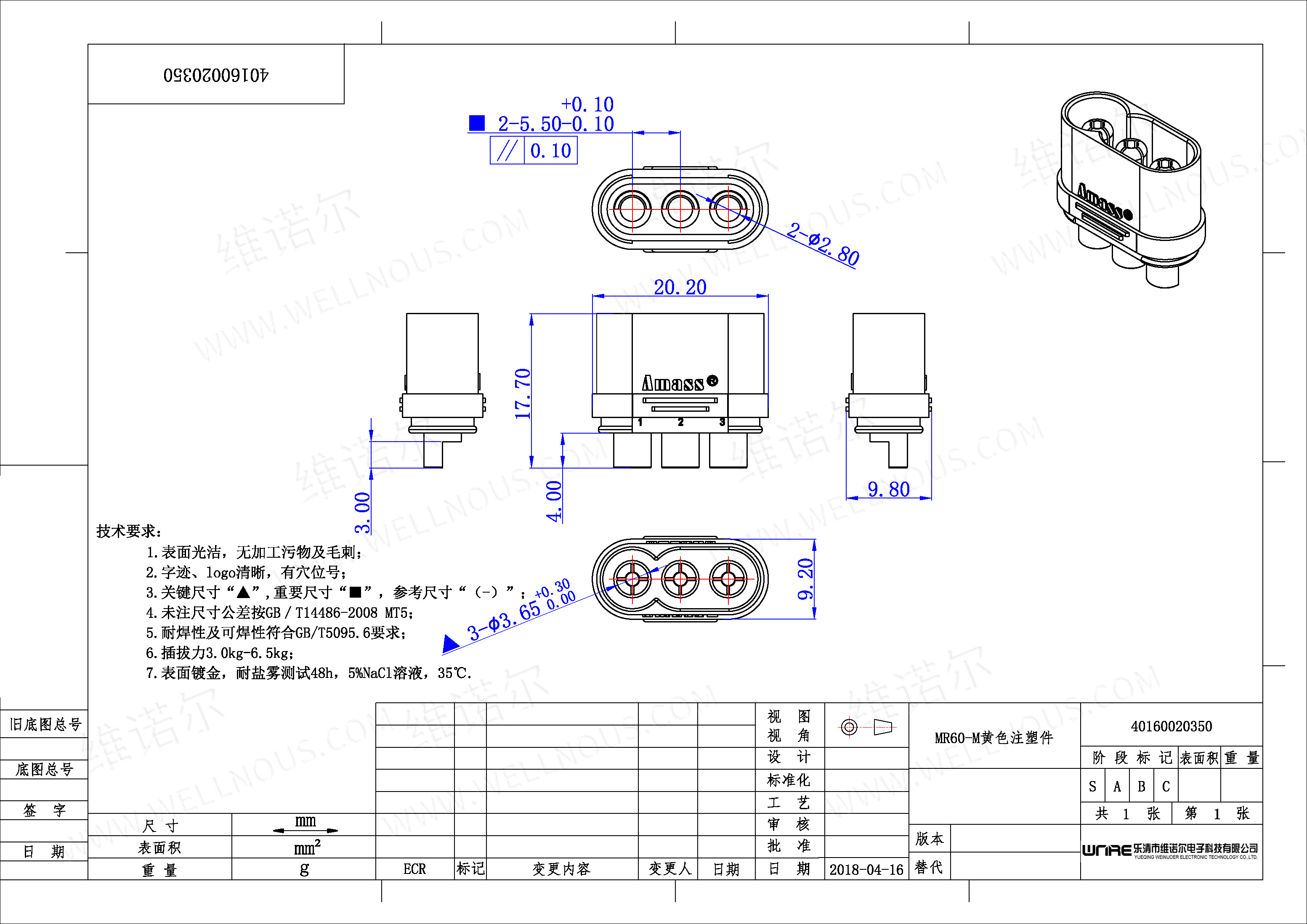

MR60-M Connector
Electric vehicle | UAV | Traversal machine | Solar lamp
Product Detail 1
Product Detail 2
! Precaution:

When in use, do not exceed the rated current and voltage.

Safety Check 1
! Usage Warning:

Do not use it under external force.

Safety Check 2
! Environment:

Do not use it in a place with high temperature and humidity.

Safety Check 3
! Handling:

When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

Safety Check 4
Balancing car | Electric scooter | Twister
Application Scenarios
Telecontrolled aircraft | Telecar | Remote control ship | Unicycle
Frequently Asked Questions
Q1: What are the main features of the MR60-M connector?
A: The MR60-M is a classic 180° outbound welding 3PIN connector designed specifically for power lithium applications. It includes a rear cover and a rectangular arrangement for stable performance.
Q2: Where is the MR60-M commonly used?
A: It is widely used for wire-to-wire connections in electric vehicles, UAVs, traversal machines, balancing cars, electric scooters, and various remote-controlled vehicles.
Q3: Can this connector be used with controllers?
A: Yes, it is optimized for the wire-to-wire connection scenarios between lithium batteries and electronic controllers.
Q4: What should I avoid when using this connector?
A: You should avoid exceeding the rated current and voltage, applying external mechanical force during operation, and using the product in high temperature or high humidity environments.
Q5: What handling precautions should be taken?
A: When unpacking, handle with care to prevent any deformation or bending of the terminals, and ensure parts do not eject during the process.
Q6: Is the MR60-M a standard part?
A: Yes, it is considered a current standard part for power lithium-ion battery plug-in connections.
