➤ Product Overview

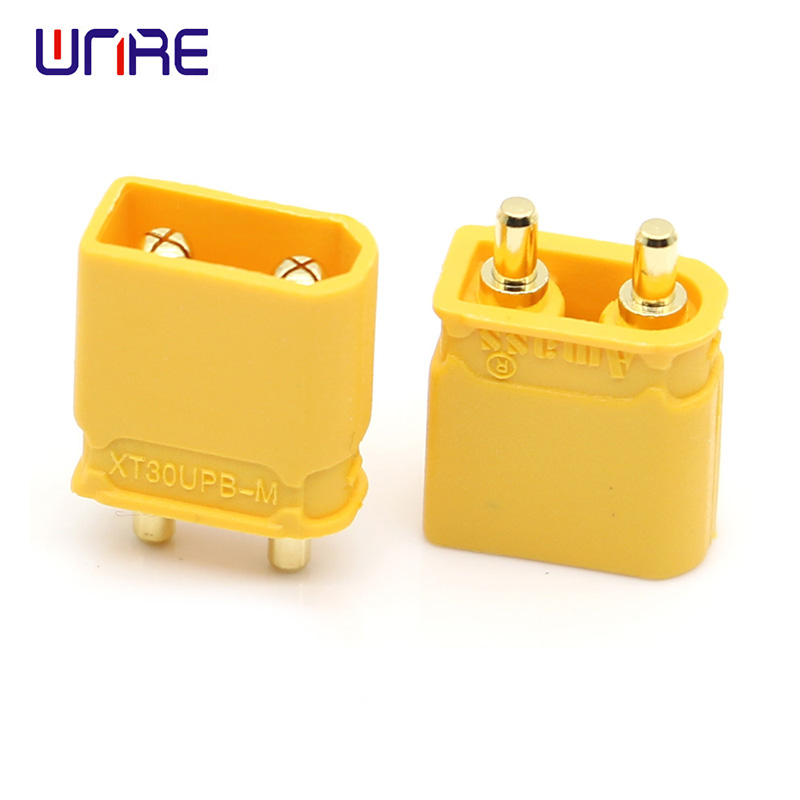

1. XT30UPB-M is a vertical injection molded 2PIN connector, which provides an integrated solution for longitudinal PCB board with space. In addition, it is wired to plate design, the size of a dime.
2. It is applicable to the wire-to-board or board-to-board connection between lithium batteries and controllers.
Electric vehicle UAV Traversal machine Solar lamp
⚠ Usage Precautions & Guidelines
✔
When in use, do not exceed the rated current and voltage.
✔
Do not use it when external forces are applied to the connector.
✔
Do not use it in a place with high temperature and humidity.
✔
When opening the package, please pay attention to avoid deformation, bending, or ejecting of terminals.
Balancing car Electric scooter Twister
Telecontrolled aircraft Telecar Remote control ship Unicycle
Frequently Asked Questions
Q1: What is the main advantage of the XT30UPB-M vertical design?
A: Its vertical injection molded 2PIN design provides an integrated solution specifically for longitudinal PCB boards where space optimization is critical.
Q2: Can this connector be used for battery-to-controller connections?
A: Yes, it is specifically applicable for wire-to-board or board-to-board connections between lithium batteries and controllers.
Q3: What environments should I avoid when using this connector?
A: You should avoid using the connector in environments with high temperature, high humidity, or where external physical forces are applied to the component.
Q4: What precautions should be taken during unpacking?
A: When opening the package, handle with care to avoid any deformation, bending, or accidental ejecting of the terminals.
Q5: Is the XT30UPB-M suitable for small-scale electronics?
A: Yes, with a size comparable to a dime, it is ideal for compact applications like UAVs, traversal machines, and solar lamps.
Q6: What is the electrical safety requirement for this product?
A: It is essential to ensure that the operating conditions do not exceed the specified rated current and voltage for the connector.
