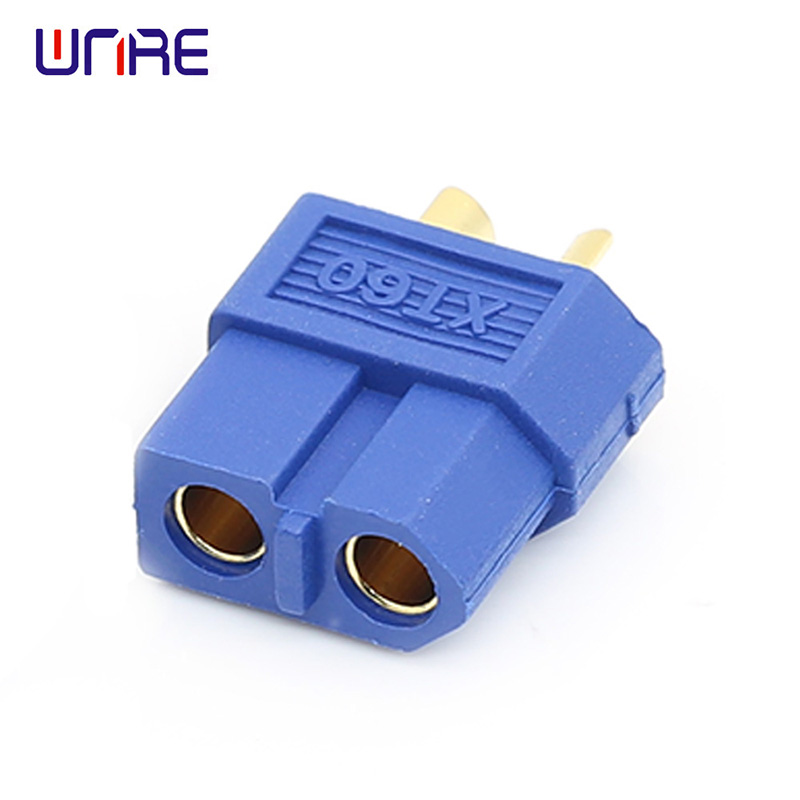

OEM XT60 Female Bullet Connectors Plugs For UAV Supplier, Company

`Product Model: XT60-F `Rated Current: 35A MAX(12AWG△<85℃) `Voltage Resistance: 500V DC `Insulation resistance: ≥2000MΩ `Contact resistance: ≤1.0MΩ `Mechanical life: 100times `Salt Spray: 48h `Operational Temperature: -20℃~120℃ `Flame Retardant Rating: UL94 V-0 `Outer Hull: PA, BLUE `Pinhole: Aldary,Elecreoplate: Gold Plating `Protection level: IP40

Product Description

XT60-F is a classic 180° out-line welded injection molded 2PIN connector, which is the current power lithium power plug-in standard parts and has been verified by more than 1,000 brand enterprises in the past decade. It has very high stability and high price performance ratio.
Apply to the wire-to-wire connection scenario between lithium batteries and controllers.

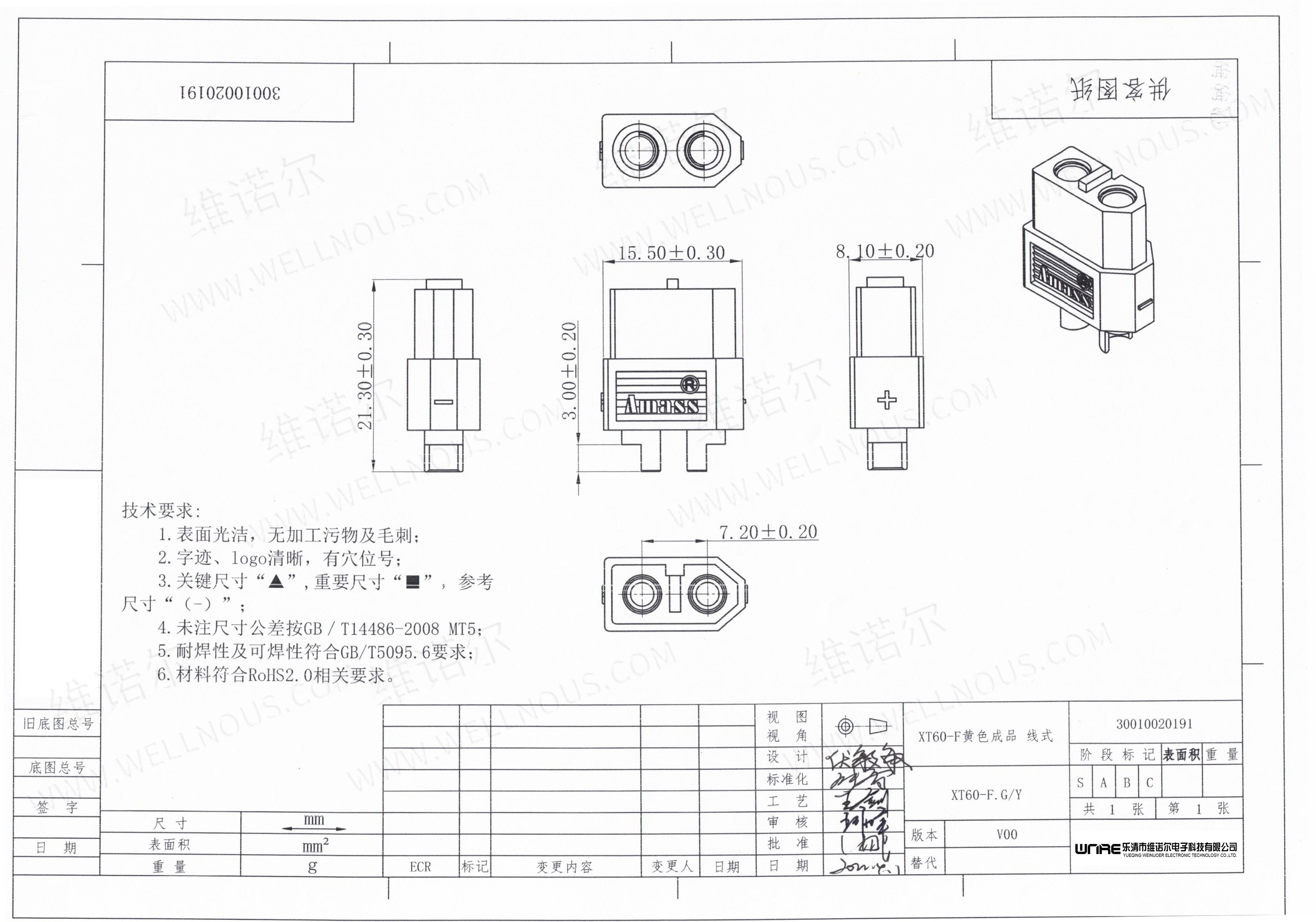

XT60-F Application
Connector Detail
Product Specification
Electric vehicle UAV Traversal machine Solar lamp
!
When in use, do not exceed the rated current and voltage.
!
Do not use it when external forces are applied to the connector.
!
Please don’t use it in a place with high temperature and humidity.
!
When opening the package, please pay attention to aviod deformation, bending, or ejecting of terminals.
Usage Instruction 1
Usage Instruction 2
Usage Instruction 3
Internal Structure
Terminal Quality
Balancing car Electric scooter Twister Telecontrolled aircraft Telecar Remote control ship Unicycle
Q1: What are the main features of the XT60-F connector?

A: The XT60-F is a classic 180° out-line welded injection molded 2PIN connector known for its high stability and excellent price-performance ratio. It is a standard part for power lithium battery connections.

Q2: In what scenarios can the XT60-F be used?

A: It is primarily used for wire-to-wire connections between lithium batteries and controllers in devices like electric vehicles, UAVs, and solar lamps.

Q3: How long has the XT60-F been on the market?

A: It has been a standard part verified by more than 1,000 brand enterprises over the past decade, ensuring its reliability in various power applications.

Q4: What should I avoid when using this connector?

A: You should avoid exceeding the rated voltage and current, applying external forces to the connector during use, and using it in environments with high temperature or humidity.

Q5: What precautions should be taken regarding the terminals?

A: When opening the package, be careful to avoid any deformation, bending, or ejection of the terminals to ensure proper functionality.

Q6: Is this connector suitable for remote-controlled hobbies?

A: Yes, it is widely used in remote-controlled applications including telecontrolled aircraft, telecars, remote control ships, and traversal machines.
