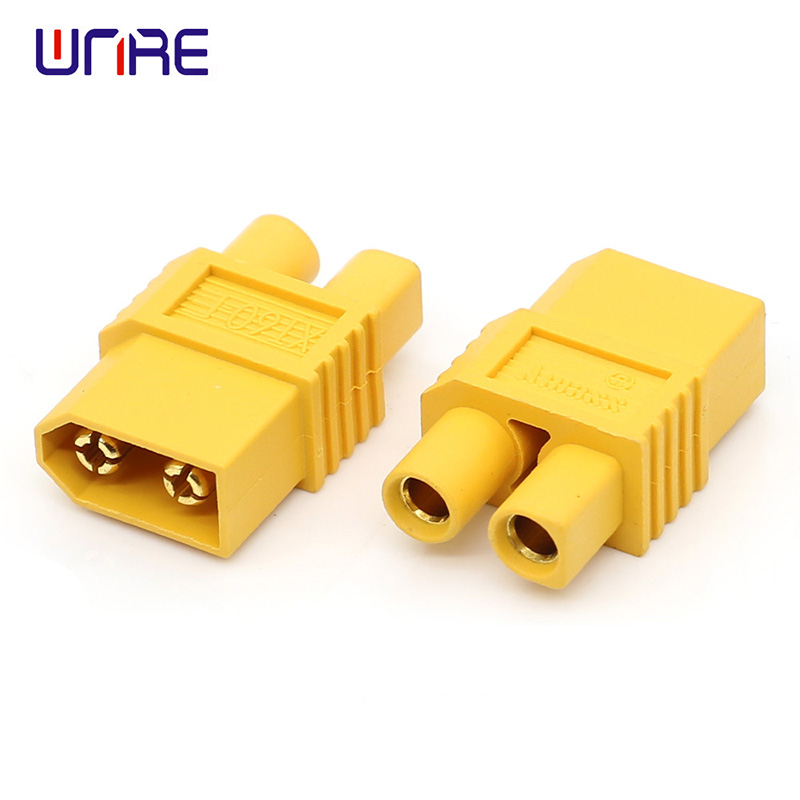

OEM XT60E Bullet Connectors Plugs For Flight Factories, Company

·Product Model: XT60E. ·Rated Current: 35A MAX（10AWG△＜85℃）. ·Voltage Resistance: 600V DC. ·Contact resistance: ≤0.8MΩ. ·Mechanical life: 100times. ·Salt Spray: 48h. ·Insulation resistance: ≥2000MΩ. ·Flame Retardant Rating: UL94 V-0. ·Outer Hull: PA, YELLOW. ·Pinhole: Aldary，Elecreoplate: Gold Plating. ·Protection level: IP40. ·Operational Temperature: -20℃~120℃.

Send Inquiry

Product Description

Product Overview

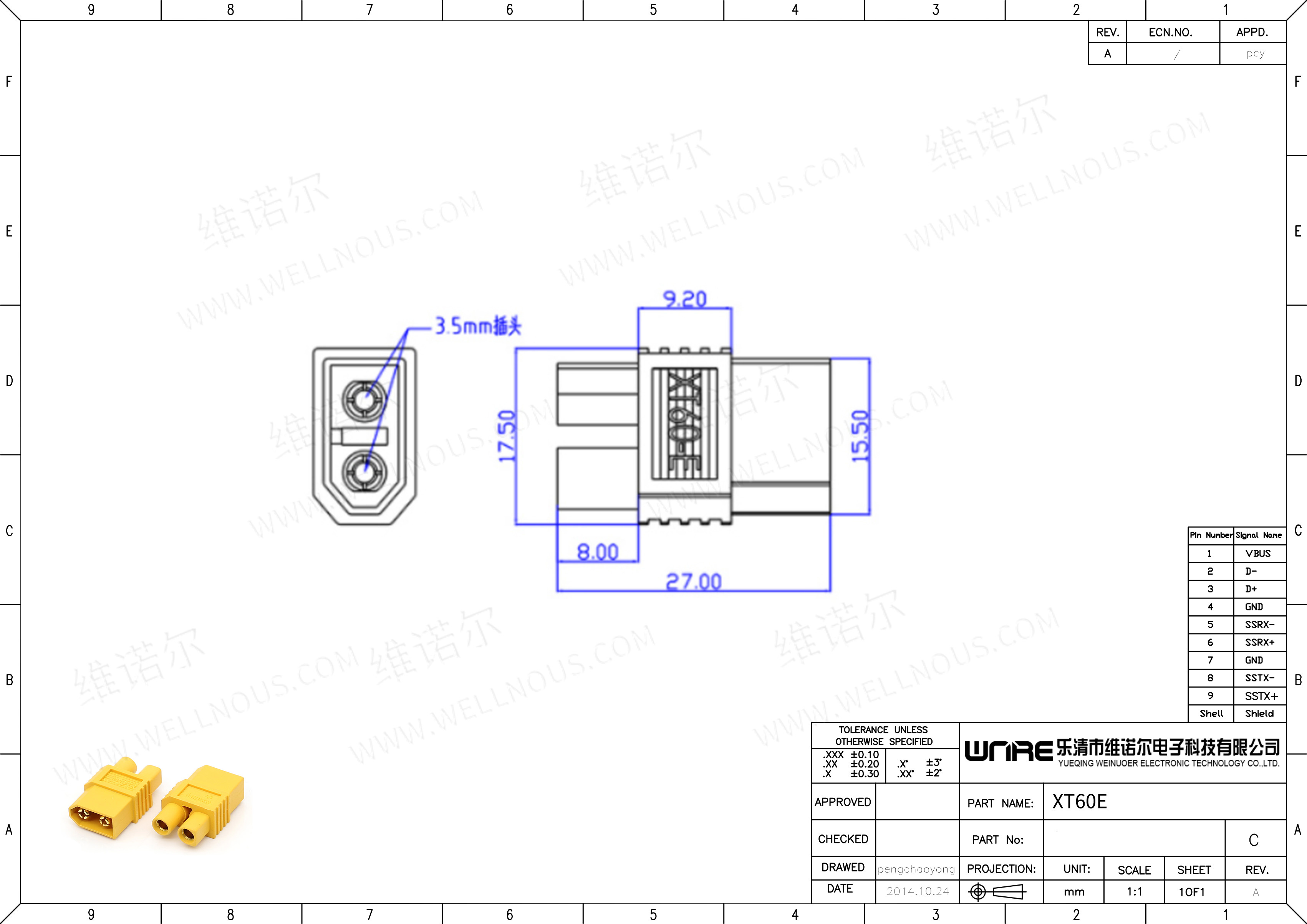

1. XT60E is a 180° outgoing welded injection molding + assembly 2PIN connector, suitable for panel installation, and is the current power lithium power plug-in standard parts.

2. This mode applies to the line-to-line connection between lithium batteries and controllers.

Primary Applications

Electric vehicle UAV Traversal machine Solar lamp

Usage & Safety Guidelines

-- While using it, do not exceed the rated current and voltage.

-- Do not use it when external forces are applied to the connector.

-- Do not use it in a place with high temperature and humidity.

-- When opening the package, please pay attention to avoid deformation, bending, or ejecting of terminals.

Additional Use Cases

Balancing car Electric scooter Twister Telecontrolled aircraft Telecar Remote control ship Unicycle

FAQ

What are the main features of the XT60E connector?

The XT60E is a 2PIN connector featuring a 180° outgoing welded design. It uses a combination of injection molding and assembly, specifically optimized for panel mounting.

Can this connector be used for battery-to-controller connections?

Yes, it is specifically designed for line-to-line connections between lithium batteries and motor controllers in various power applications.

What are the environmental limitations for using the XT60E?

It is recommended to avoid using the connector in environments with high temperature or high humidity. Additionally, ensure the connector is not subjected to external physical forces during operation.

What safety precautions should I take regarding electrical ratings?

Always ensure that the operating environment does not exceed the connector's rated current and voltage to prevent damage or safety hazards.

What should I look out for when unboxing the product?

When opening the package, handle with care to avoid terminal deformation, bending, or the accidental ejecting of internal pins.

What types of vehicles or devices are compatible with this connector?

The XT60E is widely used in electric vehicles, scooters, UAVs, traversal machines, solar lamps, balancing cars, and various remote-controlled ships or aircraft.
