OEM XT60E-M Bullet Connectors Plugs For Quadcopter Factories, Company

·Product Model: XT60E-M. ·Rated Current: 35A MAX（10AWG△＜85℃）. ·Voltage Resistance: 600V DC. ·Insulation resistance: ≥2000MΩ. ·Contact resistance: ≤0.8MΩ. ·Mechanical life: 100times. ·Salt Spray: 48h. ·Protection level: IP40. ·Operational Temperature: -20℃~120℃. ·Flame Retardant Rating: UL94 V-0. ·Outer Hull: PA, YELLOW. ·Pinhole: Aldary，Elecreoplate: Gold Plating.

Send Inquiry

Product Description

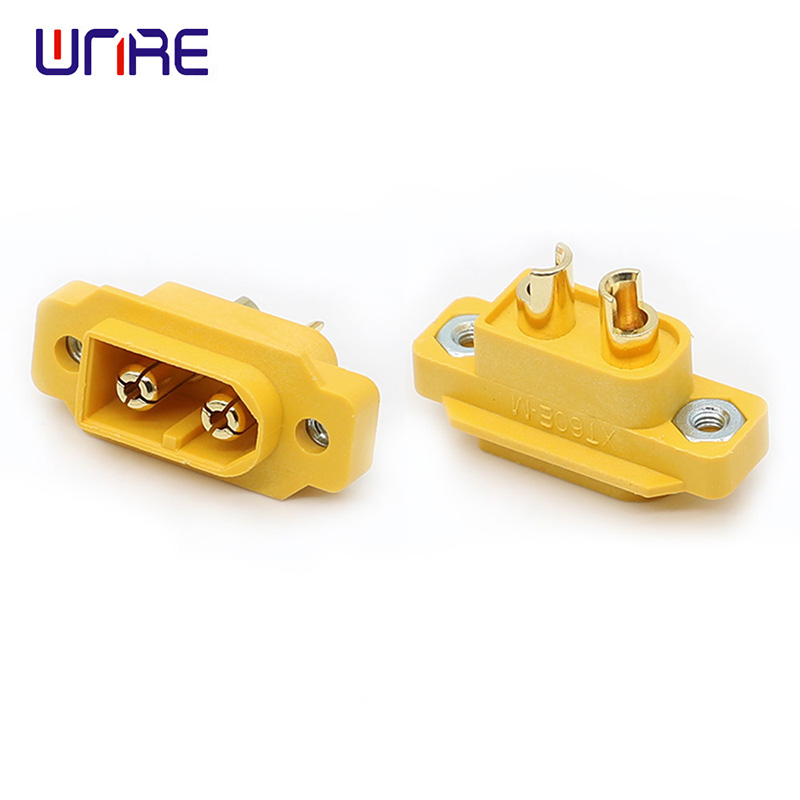

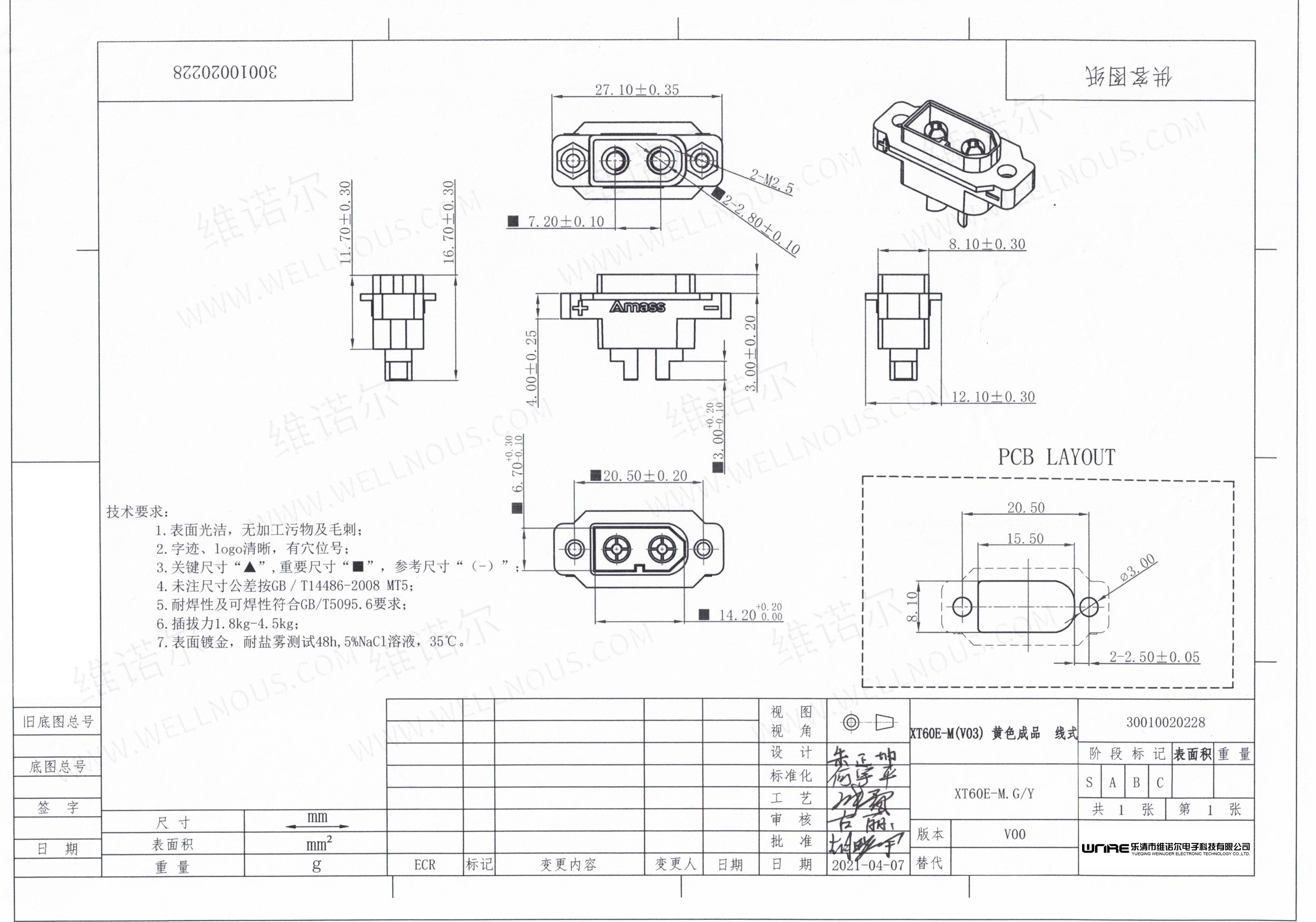

XT60E-M is a 180° out-line welded injection molding + assembly 2PIN connector, suitable for panel installation.

It is compatible with XT60U-F and serves as a standard power lithium plug-in component.

Applicable for scenarios where a lithium battery connects to a controller.

Electric vehicle UAV Traversal machine Solar lamp

Safety Precautions & Usage Guidelines

While using it, do not exceed the rated current and voltage.

Do not use it when external forces are applied to the connector.

Don't use it in when temperature and humidity is high.

When opening the package, please pay attention to avoid deformation, bending, or ejecting of terminals.

Balancing car Electric scooter Twister

Telecontrolled aircraft Telecar Remote control ship Unicycle

Frequently Asked Questions

Q1: What is the main use of the XT60E-M connector? A: It is primarily used as a standard part for connecting lithium batteries to controllers in devices like electric vehicles and UAVs.

Q2: Can the XT60E-M be mounted on a panel? A: Yes, the XT60E-M is specifically designed for panel installation with its 180° out-line welded structure.

Q3: Which connector is compatible with the XT60E-M? A: It is designed to work in mutual matching with the XT60U-F connector.

Q4: Are there any environmental restrictions for this connector? A: Yes, you should avoid using the connector in environments with high temperature and high humidity to ensure safety and longevity.

Q5: What should I check when receiving the product package? A: Please inspect the terminals carefully to ensure no deformation, bending, or ejection has occurred during shipping.

Q6: Is there a limit to the electrical load? A: Always ensure that the operating current and voltage do not exceed the rated specifications of the connector.
