OEM XT60PW-M Gold Plating Connectors Plug For UAV Supplier, Factories

Product Model: XT-60PW-M Rated Current: 35A MAX（△＜85℃） Voltage Resistance: 600V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.0MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, YELLOW Pinhole: Aldary，Elecreoplate: Gold Plating

Send Inquiry

Product Description

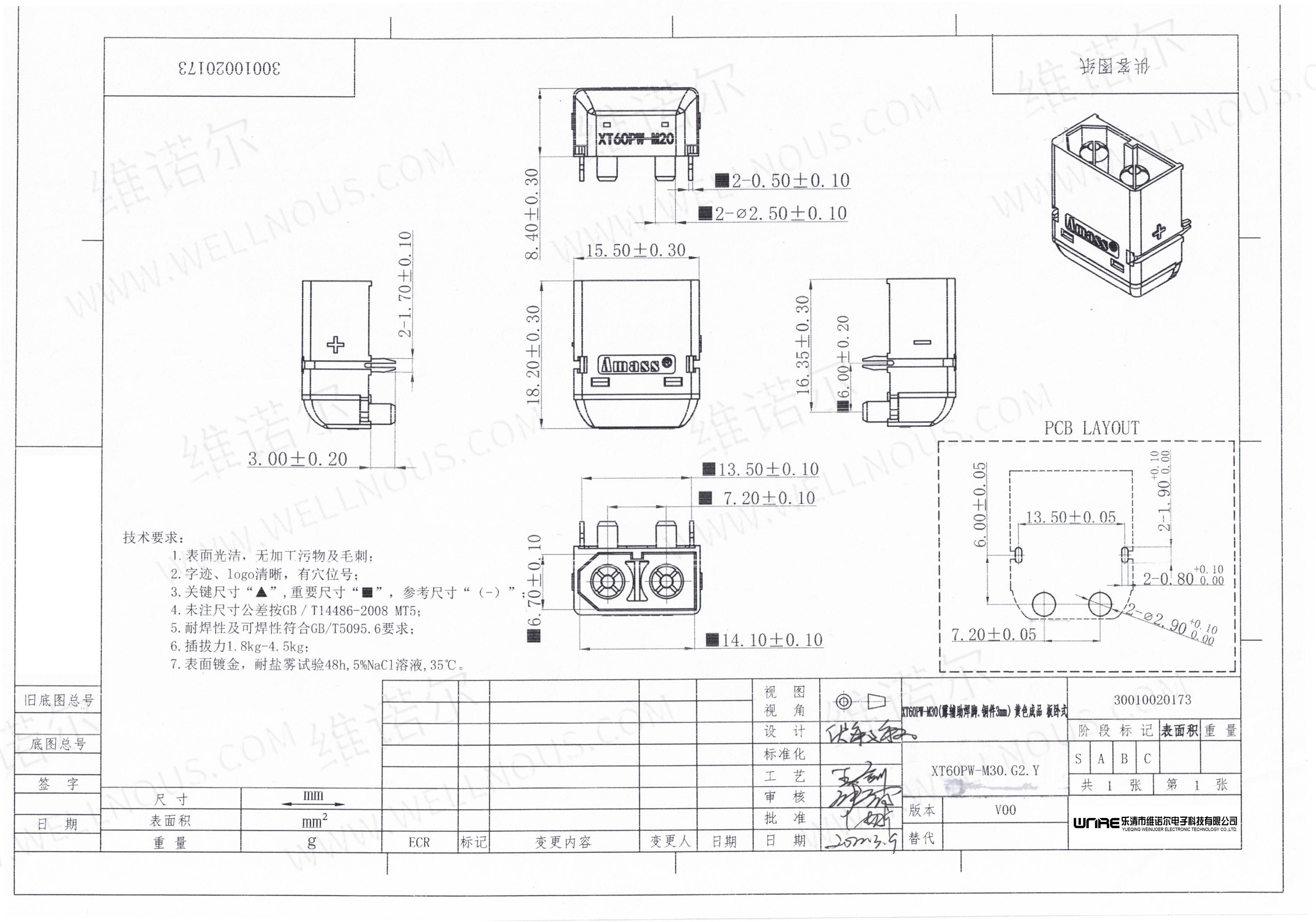

1. Product Overview: The XT-60PW male is a horizontal panel assembly 2-PIN connector with an optional back cover. It is the current standard for lithium power plugins, featuring a robust wire-to-wire design.

2. Versatile Application: It is highly applicable to wire-to-board or board-to-board connections between lithium batteries and controllers.

Electric vehicle | UAV | Traversal machine | Solar lamp

Safety & Usage Precautions

When in use, please do not exceed the rated current and voltage.

Do not use it when external forces are applied to the connector. Do not use it in a place with high temperature and humidity.

When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

Frequently Asked Questions

Q: What is the primary use of the XT-60PW connector?

A: It is a standard 2-PIN horizontal panel assembly connector used for lithium power plugins, specifically for wire-to-board or board-to-board connections.

Q: Does the XT-60PW come with a back cover?

A: Yes, it features an optional back cover for enhanced protection and assembly flexibility.

Q: What environments should I avoid when using this connector?

A: You should avoid using the connector in environments with high temperature, high humidity, or where external forces are directly applied to the unit.

Q: Are there any specific safety ratings to follow?

A: Always ensure that the operational current and voltage do not exceed the rated specifications of the connector to ensure safety and longevity.

Q: What types of vehicles are compatible with XT-60PW?

A: It is widely used in electric vehicles, UAVs, balancing cars, electric scooters, and various remote-controlled vehicles like telecars and RC ships.

Q: What should I look out for during unpacking?

A: Handle the package carefully to prevent any mechanical deformation, terminal bending, or accidental ejection of the terminals.
