OEM XT60W Anti-fire Gold-plated Model Airplane Factories, Company

Product Model: XT60W Rated Current: 35A MAX（12AWG△＜85℃） Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.0MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, BLACK Pinhole: Aldary，Elecreoplate: Gold Plating

Send Inquiry

Product Description

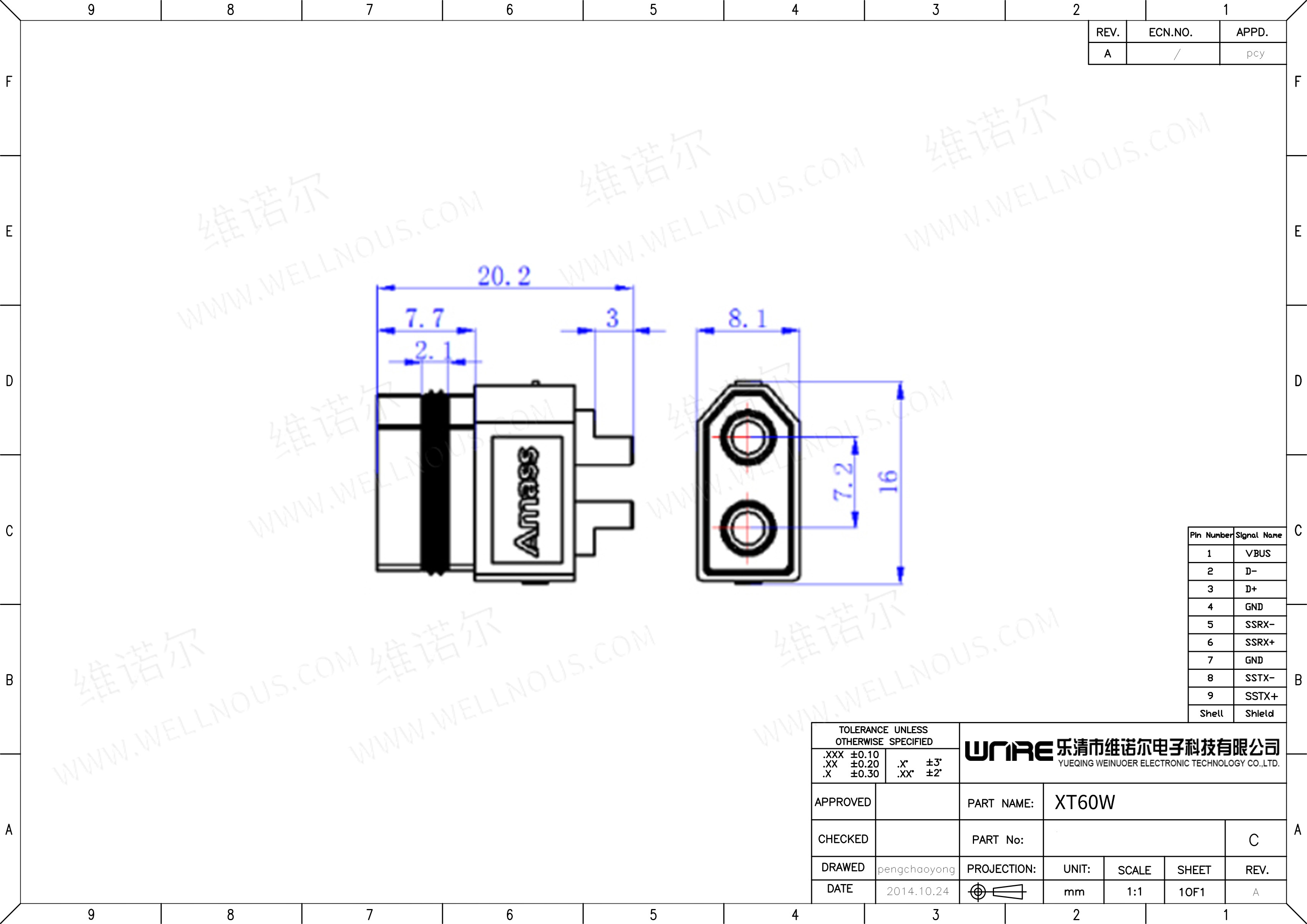

Product Overview: XT-60W is a 180° out-line welded 2PIN waterproof joint. The Female End features an injection molding + assembly structure, while the Male End is designed with a robust injection molding structure.

Primary Application: Ideally suited for wire-to-wire connection scenarios between lithium batteries and controllers.

Electric vehicle UAV Traversal machine Solar lamp

Usage Guidelines & Precautions

🛡️

Voltage & Current: Do not exceed current and rated voltage when using.

🚫

Mechanical Stress: Do not use it when external forces are applied to the connector.

🌡️

Environment: Do not use it in a high temperature and humidity place.

📦

Handling: When opening the package, be careful to prevent deformation, bending, or ejecting of terminals.

Balancing car Electric scooter Twister

Telecontrolled aircraft Telecar Remote control ship Unicycle

❓ Frequently Asked Questions

Q1: What is the specific design of the XT-60W connector? A: The XT-60W is a 180° out-line welded 2PIN waterproof joint, featuring an injection-molded male end and a combined injection-molding and assembly structure for the female end.

Q2: What is the main application for this waterproof joint? A: It is primarily designed for wire-to-wire connection scenarios specifically between lithium-ion batteries and electronic controllers.

Q3: What safety limits should I observe during operation? A: Users must strictly adhere to the rated voltage and current specifications; exceeding these limits may damage the connector or equipment.

Q4: Are there environmental restrictions for using XT-60W? A: Yes, it is recommended to avoid using the connector in environments with excessively high temperatures or high humidity to ensure longevity and performance.

Q5: Which types of vehicles or devices are compatible with this connector? A: It is widely used in electric vehicles, UAVs, traversal machines, solar lamps, balancing cars, electric scooters, and various remote-controlled vehicles.

Q6: What precautions should be taken when unpacking? A: Care should be taken to avoid any physical deformation, bending, or the accidental ejection of terminals when opening the product packaging.
