China XT90(2+2)-PB-M Plug Connectors For Electric Vehicle Battery Plug Factory, Companies
1 / 1
China XT90(2+2)-PB-M Plug Connectors For Electric Vehicle Battery Plug Factory, Companies

China XT90(2+2)-PB-M Plug Connectors For Electric Vehicle Battery Plug Factory, Companies

Product Model: XT90(2+2)-PB-M Rated Current: 45A MAX（△＜85℃）；Pin：1A Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.5MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, YELLOW Pinhole: Aldary，Elecreoplate: Gold Plating
Send Inquiry

Product Description

1. XT90(2+2)-PB-M is a plate vertical injection molding + assembly type 2+2PIN connector, which is the current power lithium power plug-in standard part, and it can be used with type XT90(2+2)-F.

2. It is designed to connect the lithium battery to the controller efficiently and securely.

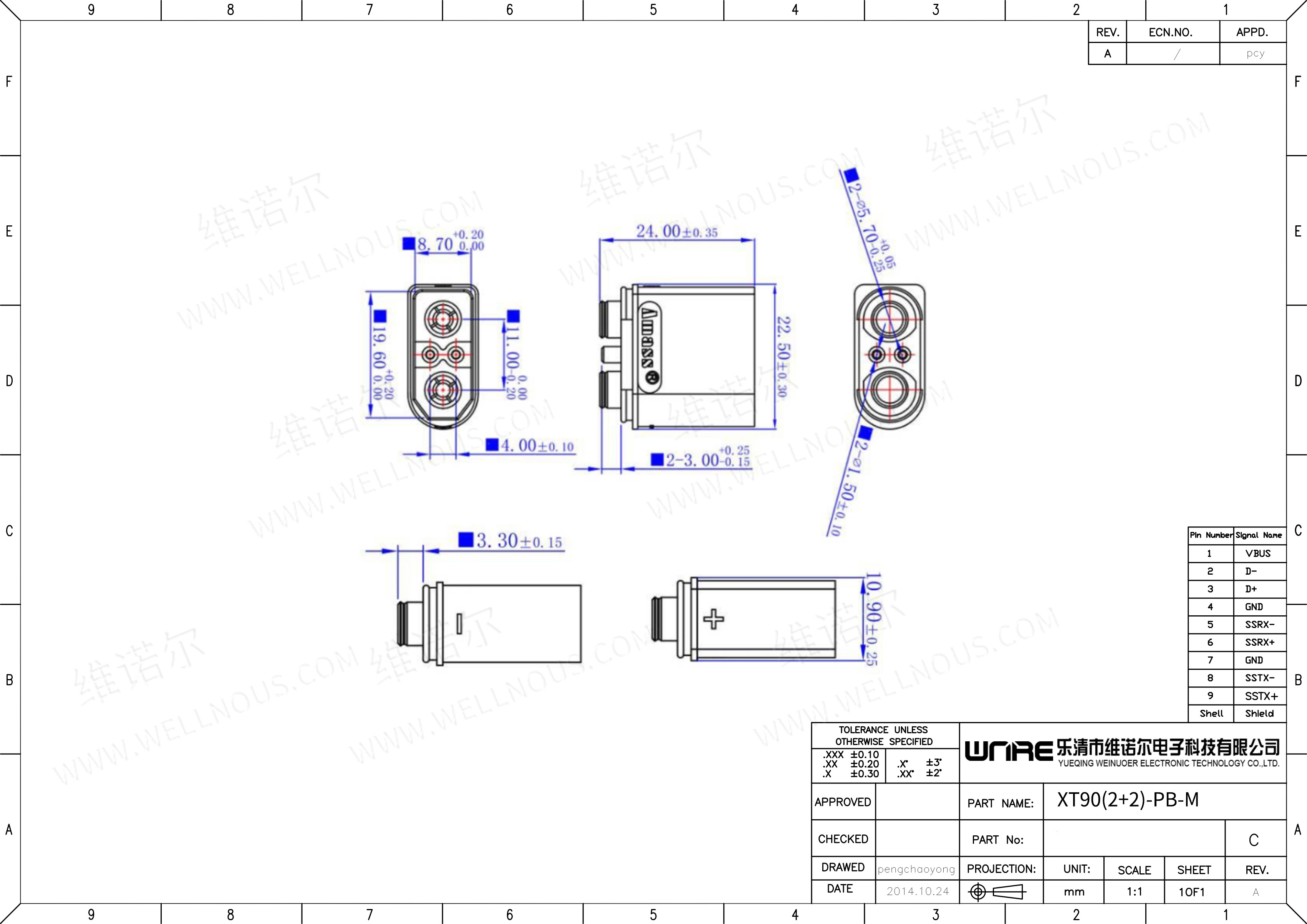

XT90(2+2)-PB-M Connector
Electric vehicle UAV Traversal machine Solar lamp
Connector Detail 1
Connector Detail 2
Usage Guidelines & Safety Instructions
Warning Icon When in use, do not exceed the rated current and voltage.
Force Warning Icon Do not use it when external forces are applied to the connector.
Safety Icon Please ensure that the using environment is safe.
Package Icon Be careful when opening the package.
Balancing car Electric scooter Twister
Application Scenarios
Telecontrolled aircraft Telecar Remote control ship Unicycle
Frequently Asked Questions
What is the XT90(2+2)-PB-M connector?
It is a plate vertical injection molding and assembly type 2+2PIN connector, widely used as a standard part for power lithium battery connections.
Which female connector is compatible with this model?
This model is designed to be used specifically with the XT90(2+2)-F type connector.
What are the primary applications for this connector?
It is ideal for electric vehicles, UAVs, solar lamps, balancing cars, electric scooters, and various remote-controlled vehicles.
What should I avoid during operation?
Never exceed the rated current and voltage limits, and avoid using the connector if it is subjected to external mechanical forces.
Is there any specific caution for handling the product?
Yes, users should exercise caution when opening the package and ensure the installation environment is safe and secure.
Can this be used for lithium battery to controller connections?
Yes, one of its primary functions is to provide a reliable connection between lithium batteries and their respective controllers.
