OEM XT90H-M Black Large Current Lipo Battery Connector Manufacturers, Company
1 / 1

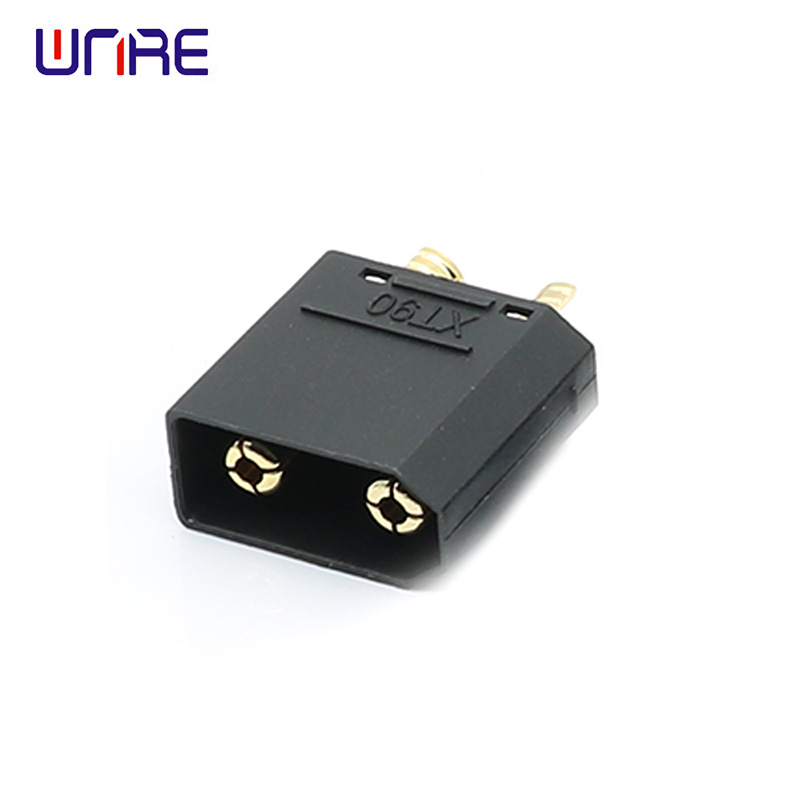

OEM XT90H-M Black Large Current Lipo Battery Connector Manufacturers, Company

OEM XT90H-M Black Large Current Lipo Battery Connector Manufacturers, Company

Product Model: XT90H-M Rated Current: 40A MAX（10AWG△＜85℃） Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤1.0MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, BLACK Pinhole: Aldary，Elecreoplate: Gold Plating
Send Inquiry

Product Description

1. XT90H is a classic 180° outbound welded injection molded 2PIN connector with rear cover, which is the standard part of the current power lithium power supply, and have other wired layout design.

2. It can be used to attach a lithium battery to the control.

Electric vehicle UAV Traversal machine Solar lamp
XT90H Connector Overview
XT90H Connection Detail

Usage Guidelines & Safety Cautions:

  • When in use, do not exceed the rated current and voltage.
  • Do not use it when external forces are applied to the connector.
  • Do not use this product in a place with high fever.
  • When opening the package, must be careful to prevent deformation, bending, or ejecting of terminals.
XT90H Usage Case
XT90H Installation
XT90H Terminal Detail
Balancing car Electric scooter Twister
XT90H Application Examples
XT90H Final Assembly
Telecontrolled aircraft Telecar Remote control ship Unicycle
Frequently Asked Questions
What type of connector is the XT90H?
The XT90H is a classic 180° outbound welded injection molded 2PIN connector equipped with a rear cover, designed as a standard part for lithium power supplies.
What are the primary applications for this connector?
It is widely used in electric vehicles, UAVs, traversal machines, solar lamps, balancing cars, electric scooters, and various remote-controlled vehicles.
Can the XT90H handle high-temperature environments?
No, it is advised not to use this product in places with high fever or extreme heat to ensure safety and performance.
Are there any specific precautions for handling the package?
Yes, you must be careful when opening the package to prevent any deformation, bending, or accidental ejecting of the terminals.
What should be avoided during the operation of the XT90H?
Users must ensure they do not exceed the rated current and voltage, and avoid applying external forces to the connector during use.
Is the XT90H compatible with different layout designs?
While the standard version is a 180° outbound design, it also supports other wired layout configurations to suit different power supply needs.
