Product Overview

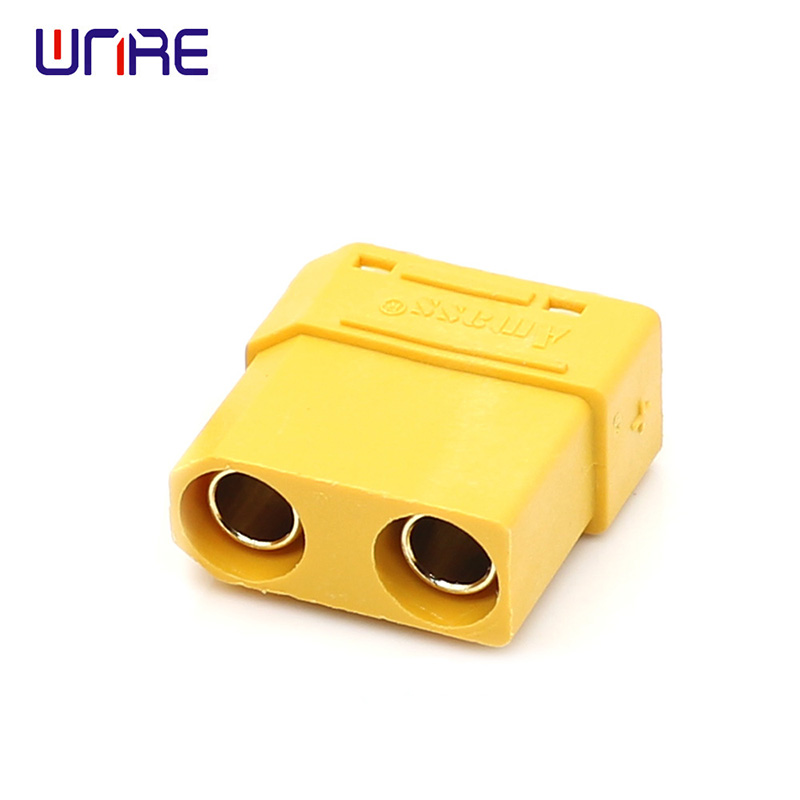

1. XT90PB-F is a vertical injection molded 2PIN connector, which provides an integrated solution for PCB board with longitudinal space. It is a standard part of lithium power supply at present, and also has a wired layout design.
2. It is applicable to the wire-to-board and board-to-board connection between lithium batteries and controllers.
Extended Device Compatibility
Balancing car
Electric scooter
Twister
Telecontrolled aircraft
Telecar
Remote control ship
Unicycle
Frequently Asked Questions
Q1: What is the main design feature of the XT90PB-F connector?
A1: It is a vertical injection molded 2PIN connector designed specifically for PCB boards with limited longitudinal space.
Q2: What are the typical connection types for this connector?
A2: It is widely used for wire-to-board and board-to-board connections between lithium batteries and controllers.
Q3: Is it safe to plug or unplug the XT90PB-F while power is active?
A3: No, it is strictly advised not to plug or unplug the connector in a live (powered) state.
Q4: What is the maximum operating temperature for this product?
A4: The connector should not be used in environments where the temperature exceeds 120°C.
Q5: Which industries commonly use the XT90PB-F connector?
A5: It is standard in electric vehicles, UAVs, solar lamps, balancing cars, and various remote-controlled vehicles.
Q6: What should be noted during unboxing and installation?
A6: Care should be taken to prevent deformation or bending of terminals, and no external forces should be applied to the connector during use.
