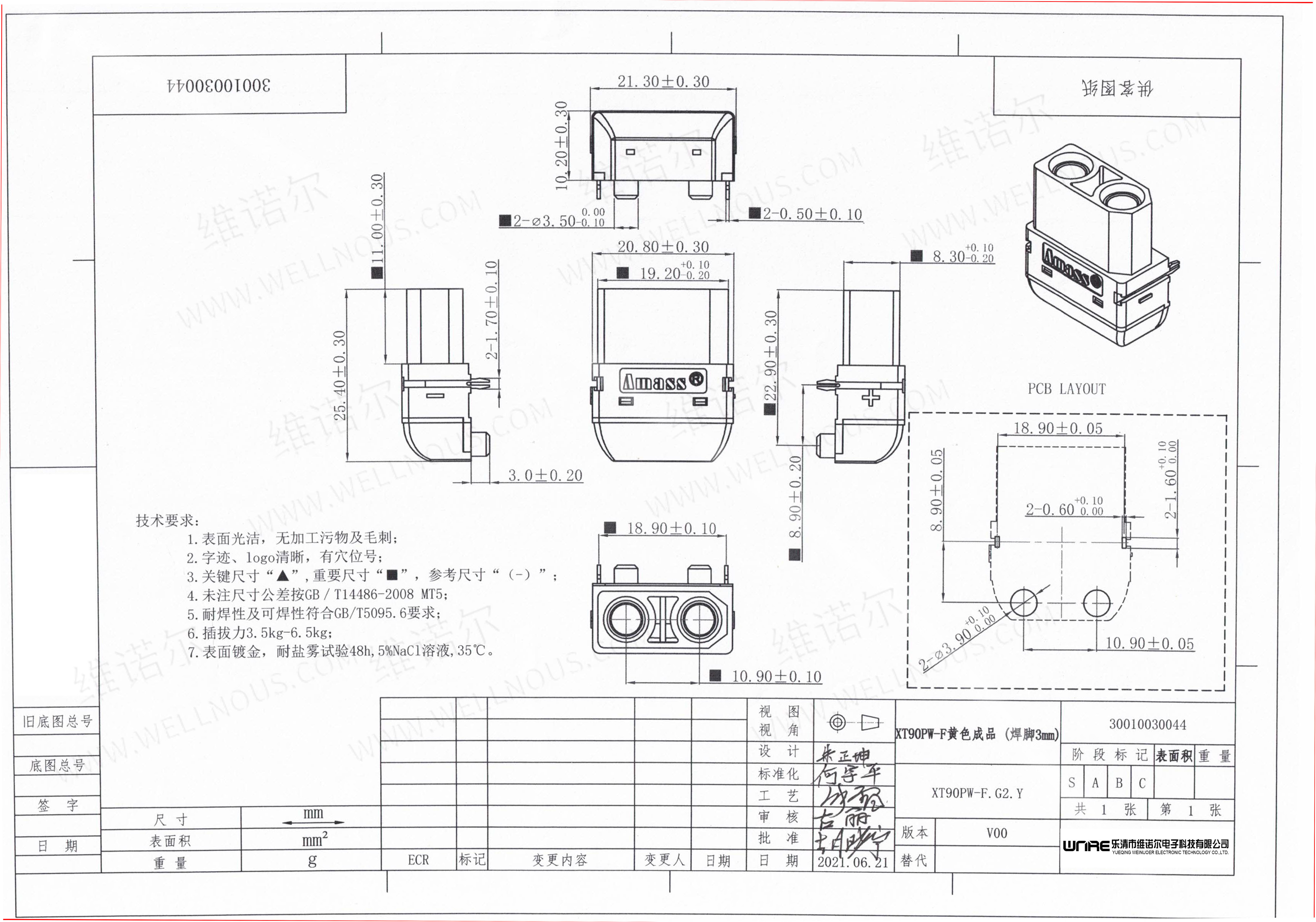

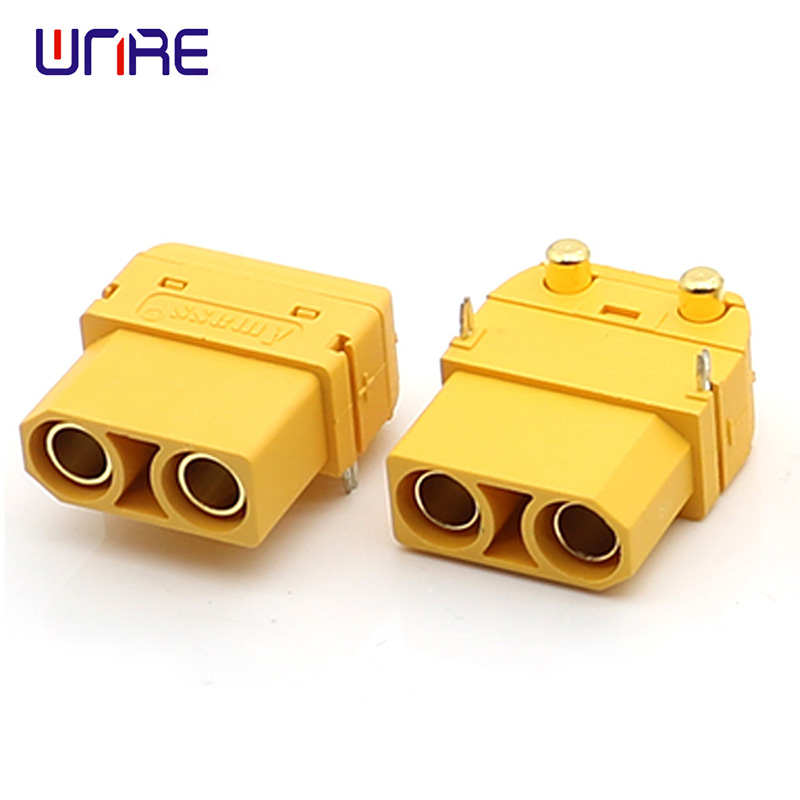

1. XT90PW-F is a horizontal assembly type 2PIN connector with an optional rear cover. It provides an integrated solution for PCB boards with lateral space constraints.
2. It is designed for wire-to-board and board-to-board connections specifically for lithium batteries and controllers.
Applications & Use Cases
Electric vehicle | UAV | Traversal machine | Solar lamp
Usage Guidelines & Precautions
Step 1: Please insert and remove the product without power on.
Step 2: Do not use it when external forces are applied to the connector.
Step 3: Do not use this product in a place with high temperature and humidity.
Step 4: Please avoid strong impact during installation or operation.
Balancing car | Electric scooter | Twister
Telecontrolled aircraft | Telecar | Remote control ship | Unicycle
Frequently Asked Questions
What are the primary applications for the XT90PW-F?
The XT90PW-F is ideal for lithium battery and controller connections in electric vehicles, UAVs, solar lamps, and balancing cars.
Can this connector be used for PCB mounting?
Yes, it is specifically a horizontal assembly type designed to provide an integrated solution for PCB boards with lateral space.
Does the XT90PW-F support board-to-board connections?
Yes, it supports both wire-to-board and board-to-board connection types.
What environmental conditions should I avoid?
You should avoid using this product in environments with high temperature, high humidity, or areas prone to strong mechanical impacts.
Can I plug the connector while the power is on?
No, for safety and product longevity, please ensure you insert or remove the connector only when the power is turned off.
Is there an option for a rear cover?
Yes, the XT90PW-F comes with an optional rear cover for added protection and cable management.
