China Yellow XT60H-F Plug Connector With Sheath Supplier, Factory

·Product Model: XT60H-F. ·Rated Current: 30A MAX（12AWG△＜85℃）. ·Voltage Resistance: 500V DC. ·Insulation resistance: ≥2000MΩ. ·Mechanical life: 100times. ·Salt Spray: 48h. ·Contact resistance: ≤0.8MΩ. ·Flame Retardant Rating: UL94 V-0. ·Outer Hull: PA, YELLOW, BLACK. ·Pinhole: Aldary，Elecreoplate: Gold Plating. ·Protection level: IP40. ·Operational Temperature: -20℃~120℃.

Send Inquiry

Product Description

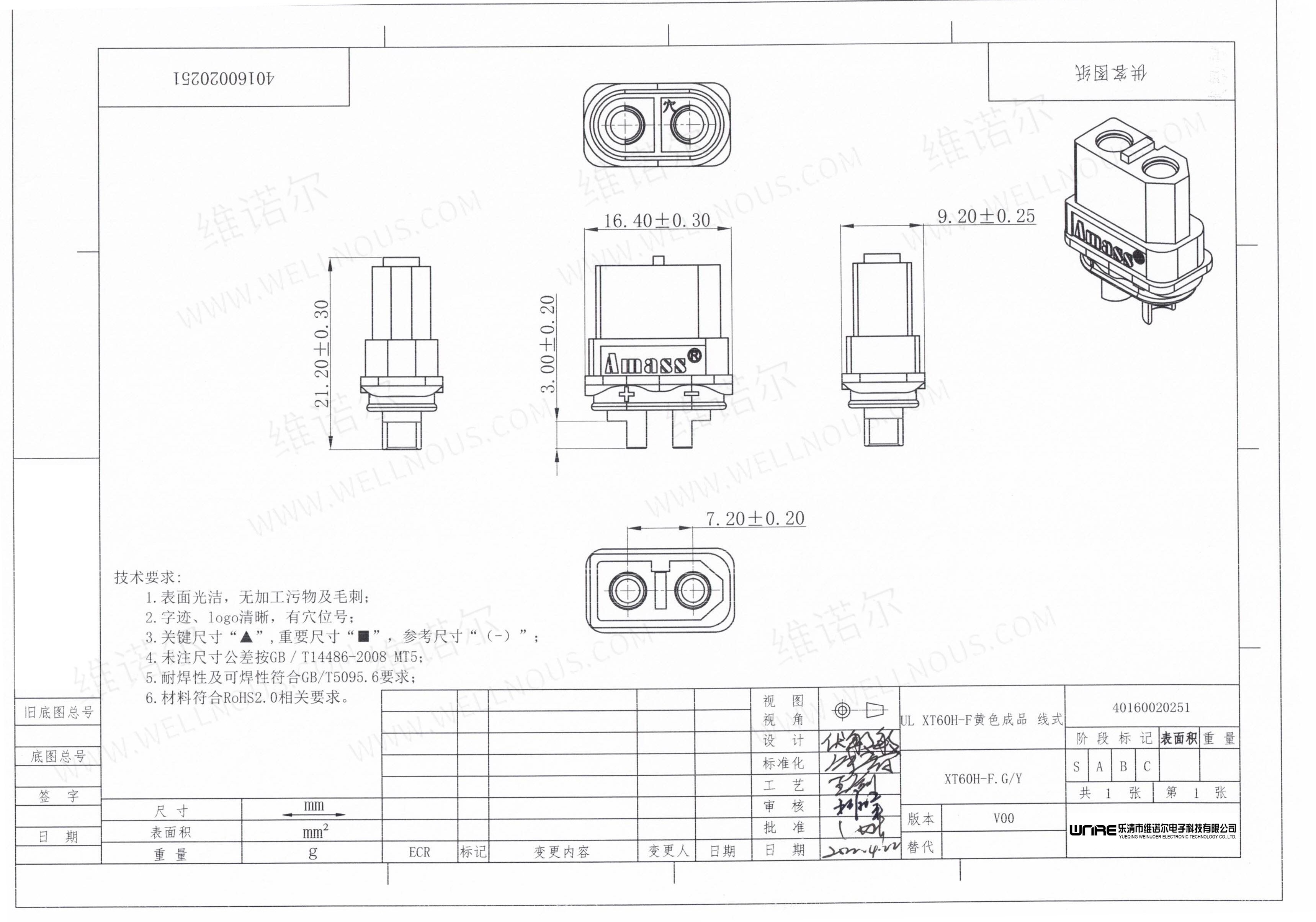

The XT60H-F is a classic 180° outbound welded injection 2PIN connector. Featuring an exquisite and compact design with a back cover, it has become the standard for modern lithium power supplies. Its secure locking design makes it ideal for connecting lithium batteries to controllers.

Electric vehicle | UAV | Traversal machine | Solar lamp

Usage Guidelines & Precautions

Safety Notice: While using the connector, do not exceed the rated current and voltage to ensure performance and safety.

Avoid using the connector when external forces are applied. Additionally, do not operate or store the connector in environments with high temperatures or high humidity levels. As these are precision parts, please handle the packaging and assembly with care.

Frequently Asked Questions

What is the primary application of the XT60H-F connector?

The XT60H-F is specifically designed for lithium power supplies, commonly used to connect lithium batteries to controllers in various electric devices.

Does this connector include a locking mechanism?

Yes, the XT60H-F features a locking design to ensure a stable and secure connection during operation.

Can it be used for high-humidity environments?

No, it is recommended to avoid using the connector in places with high temperature and humidity to maintain its performance and longevity.

What devices are compatible with the XT60H-F?

It is widely compatible with electric vehicles, UAVs, traversal machines, solar lamps, electric scooters, and various remote-controlled vehicles and ships.

What should I pay attention to during installation?

Handle with care as these are precision parts. Ensure that no external forces are applied to the connector during use and always stay within the rated current and voltage limits.

Is the XT60H-F a 2-pin connector?

Yes, it is a standard 180° outbound welded injection 2PIN connector.
