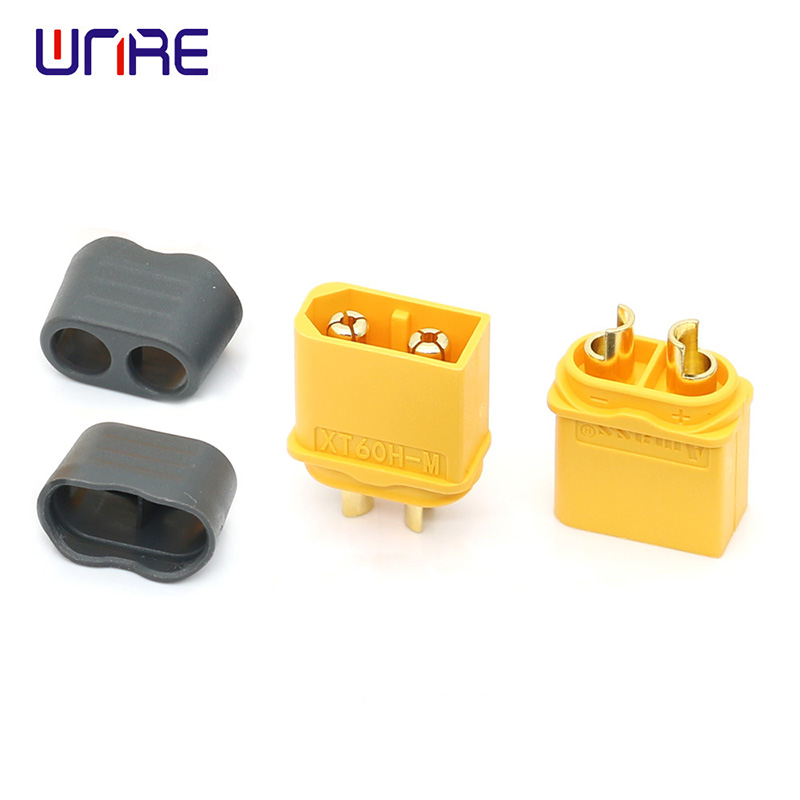

China Yellow XT60H-M Plug Connector With Sheath Suppliers, Factories

Product Model: XT60H-M Rated Current: 30A MAX（12AWG△＜85℃） Voltage Resistance: 500V DC Insulation resistance: ≥2000MΩ Contact resistance: ≤0.8MΩ Mechanical life: 100times Salt Spray: 48h Protection level: IP40 Operational Temperature: -20℃~120℃ Flame Retardant Rating: UL94 V-0 Outer Hull: PA, YELLOW, BLACK Pinhole: Aldary，Elecreoplate: Gold Plating

Send Inquiry

Product Description

ℹ️

1. XT60H-M is a classic 180° outbound welded injection molded 2PIN connector with rear cover, which is the standard part for the current power lithium power supply, and the other wired plate design and locking design.
2. This can connecting the lithium battery to the control unit.

Electric vehicle UAV Traversal machine Solar lamp

⚠️ Safety Guidelines:

🔹 While using it, do not exceed the rated current and voltage.
🔹 Do not use it when external forces are applied to the connector.
🔹 Do not use it in a place with high temperature and humidity.
🔹 Please use this product with care.

Balancing car Electric scooter Twister

Telecontrolled aircraft Telecar Remote control ship Unicycle

Frequently Asked Questions

Q1: What are the primary applications for the XT60H-M connector?

A: The XT60H-M is widely used in power lithium power supplies, electric vehicles, UAVs, solar lamps, and balancing cars due to its stable connection design.

Q2: What is the benefit of the rear cover on the XT60H-M?

A: The rear cover provides a clean aesthetic and serves as a protective layer for the welded joints, improving insulation and safety in various environments.

Q3: Can this connector handle high humidity environments?

A: It is recommended not to use the connector in places with high temperature and humidity to maintain optimal performance and prevent corrosion.

Q4: How should I properly install the XT60H-M?

A: Ensure you are using the correct 180° outbound welded technique and avoid applying excessive external force to the connector during installation.

Q5: Is it safe to use this connector for remote-controlled devices?

A: Yes, it is a standard choice for telecontrolled aircraft, telecars, and remote-control ships, provided you do not exceed its rated voltage and current.

Q6: What should I avoid when using the XT60H-M connector?

A: Avoid exceeding rated electrical limits, applying mechanical stress to the housing, or using the product in extreme environmental conditions without proper protection.
